Comparative Study
. 2012 Mar;41(3):234-40.
doi: 10.1259/dmfr/24780643. Epub 2011 Nov 10.

Radiological examination of the articular eminence morphology using cone beam CT

M A Sümbüllü  1 , F Cağlayan, H M Akgül, A B Yilmaz
Affiliations
Comparative Study

Radiological examination of the articular eminence morphology using cone beam CT

M A Sümbüllü et al. Dentomaxillofac Radiol. 2012 Mar.

Abstract

Objective: The purpose of the present study was to investigate the articular eminence inclination and height according to age and gender in patients with temporomandibular joint (TMJ) dysfunction and healthy controls using cone beam CT (CBCT).

Methods: The measurements were performed on CBCT records of 52 TMJ dysfunction patients (11 males and 41 females) and 41 control patients (17 males and 24 females). The eminence inclination and height were measured on the CBCT images.

Results: The eminence inclination and height values were higher in males than in females in both TMJ dysfunction patient and control groups; however, these differences were not statistically significant (p>0.05). While no statistically significant differences were found in the eminence inclination and height values between the age groups (p>0.05) in the TMJ dysfunction patient group, there were statistically significant differences in the control group. The eminence inclination was highest between the ages of 21 and 30 years and showed a decrease after the age of 30 years. Additionally, the eminence inclinations of the control patients were statistically higher than those of the TMJ dysfunction patients.

Conclusion: There were no statistically significant differences in eminence inclination and height according to gender. The eminence inclination reaches its highest value between the ages of 21 and 30 years and shows a decrease after the age of 31 years in healthy patients. The eminence inclination was steeper in healthy control patients than in patients with TMJ dysfunction.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Lines and angles used in the study. Ebf, eminence inclination best-fit line; Etr, eminence inclination top-roof line; Eh, eminence height
Figure 2
Figure 2
The measurement of eminence inclination with the best-fit line method
Figure 3
Figure 3

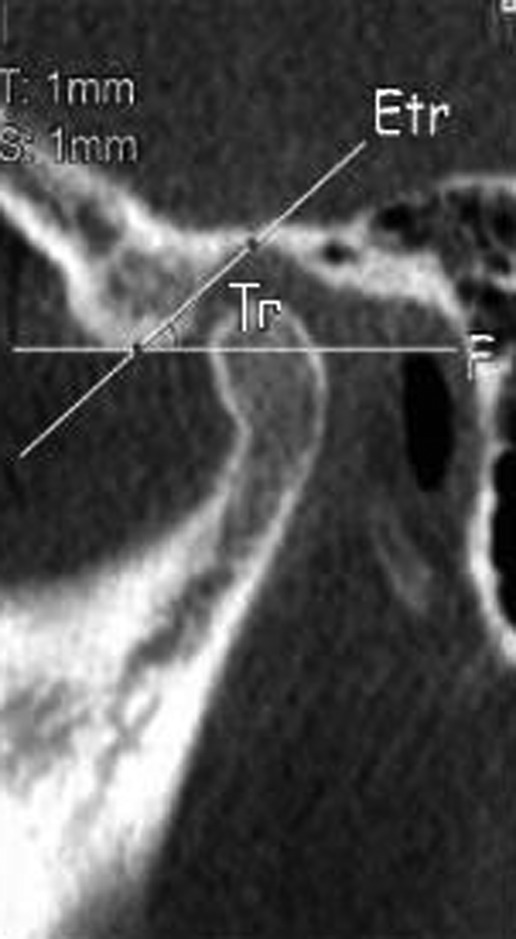

The measurement of eminence inclination with the top-roof line method
Figure 4
Figure 4
The measurement of eminence height
Figure 5
Figure 5
A case that showed measured distance and angles in the study
See this image and copyright information in PMC

References

    1. Pandis N, Karpac J, Trevino R, Williams B. A radiographic study of condyle position at various depths of cut in dry skulls with axially corrected lateral tomograms. Am J Orthod Dentofacial Orthop 1991;100:116–122 - PubMed
    1. Katsavrias EG. Changes in articular eminence inclination during the craniofacial growth period. Angle Orthod 2002;72:258–264 - PubMed
    1. Jasinevicius TR, Pyle MA, Nelson S, Lalumandier JA, Kohrs KJ, Sawyer DR. Relationship of degenerative changes of the temporomandibular joint (TMJ) with the angle of eminentia. J Oral Rehabil 2006;33:638–645 - PubMed
    1. Jasinevicius TR, Pyle MA, Lalumandier JA, Nelson S, Kohrs KJ, Türp JC, et al. Asymmetry of the articular eminence in dentate and partially edentulous populations. Cranio 2006;24:85–94 - PubMed
    1. Jasinevicius TR, Pyle MA, Lalumandier JA, Nelson S, Kohrs KJ, Sawyer DR. The angle of the articular eminence in modern dentate African-Americans and European-Americans. Cranio 2005;23:249–256 - PubMed
