Comparative Study
. 2012 May;23(5):613-20.
doi: 10.1007/s00192-011-1616-8. Epub 2011 Nov 26.

Uniaxial biomechanical properties of seven different vaginally implanted meshes for pelvic organ prolapse

Jonathan P Shepherd  1 , Andrew J Feola, Steven D Abramowitch, Pamela A Moalli
Affiliations
Comparative Study

Uniaxial biomechanical properties of seven different vaginally implanted meshes for pelvic organ prolapse

Jonathan P Shepherd et al. Int Urogynecol J. 2012 May.

Abstract

Introduction and hypothesis: Recently, numerous type I macroporous polypropylene vaginal meshes have been introduced into the market with little known of their differences.

Methods: Seven vaginal meshes were obtained and loaded to failure (n = 5/type). Additional cyclic loading determined permanent deformation with submaximal loading.

Results: The load elongation curves demonstrated a bilinear response with lower stiffness (N/mm), followed by higher stiffness. Ascend™ was the stiffest mesh in both regions of the load elongation curve (0.72 and 1.66 N/mm) with the lowest transition to higher stiffness (13.4%). Polyform™ had the highest failure load (53.8 N) while Ultrapro™ had the lowest (7.83 N). Novasilk™ (89.4%) and Ultrapro™ (87.9%) had the highest relative elongations at mesh failure while Ascend™ had the lowest (40.2%). Ascend™ had the least relative elongation after three protocols of cyclic loading (3.0%, 9.8%, and 9.7%).

Conclusions: Current vaginal meshes demonstrate marked variation in biomechanical characteristics which may impact the in vivo behavior.

PubMed Disclaimer

Conflict of interest statement

Disclaimers, and Conflicts of Interest: None

Figures

Figure 1
Figure 1

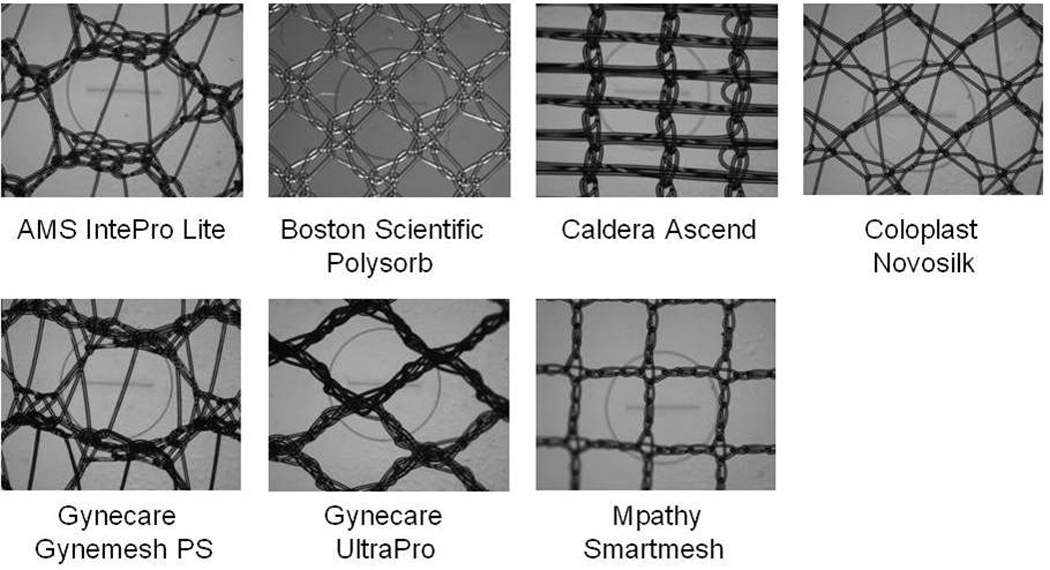

Microscopic images with unique pattern and porosity of each mesh
Figure 2
Figure 2

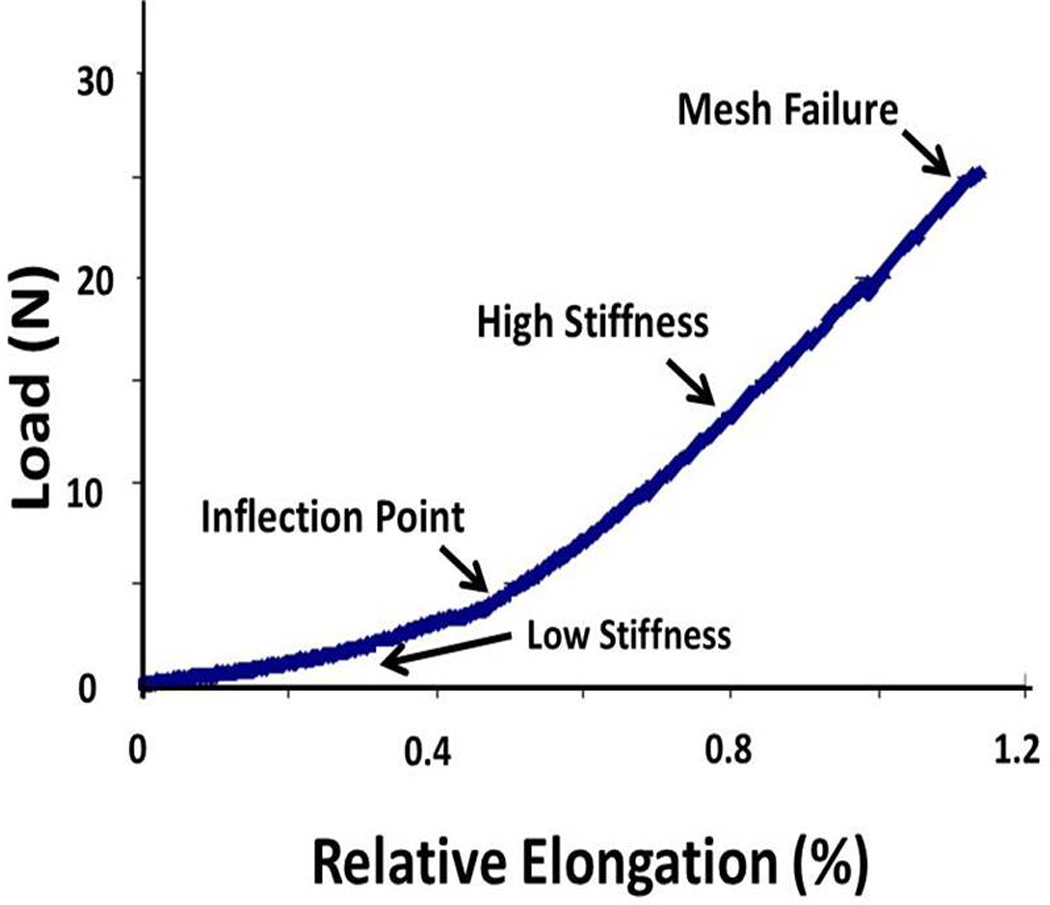

Representative load-elongation curve after incremental load to failure
Figure 3
Figure 3

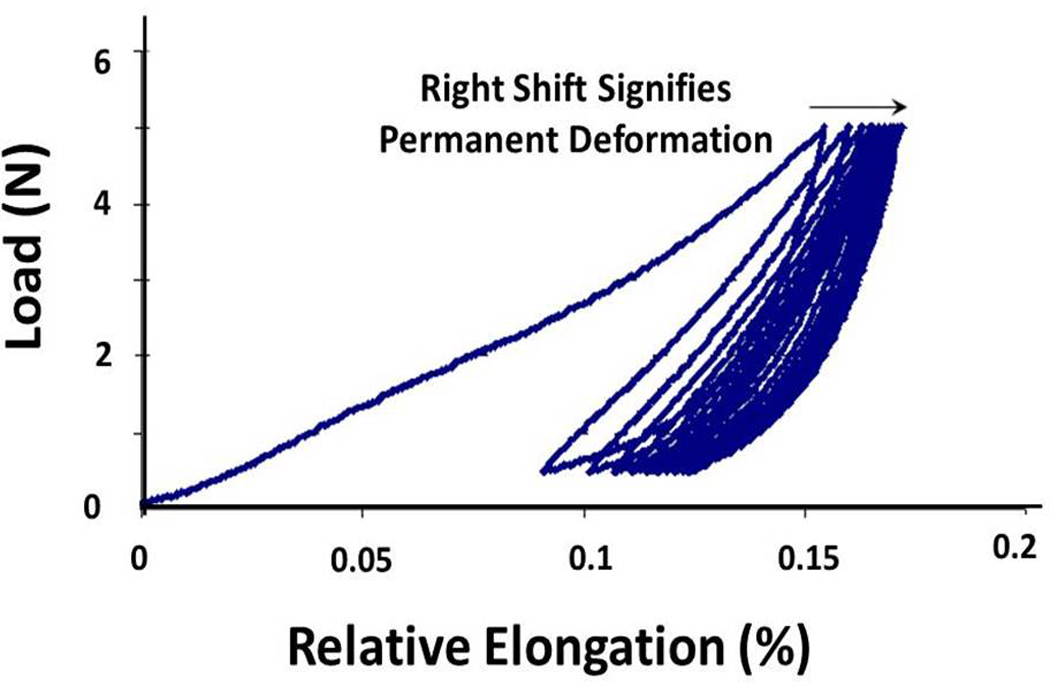

Representative load-elongation curve with submaximal cyclic loading
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Maher C, Baessler K, Glazener CMA, Adams EJ, Hagen S. Surgical management of pelvic organ prolapse in women. Cochrane Database Syst Rev. 2010;4 CD004014. - PubMed
    1. Olson AL, Smith VJ, Bergstrom JO, Colling JC, Clark AL. Epidemiology of surgically managed pelvic organ prolapse and urinary incontinence. Obstet Gynecol. 1997;89:501–506. - PubMed
    1. Luber KM, Boero S, Choe JY. The demographics of pelvic floor disorders. Am J Obstet Gynecol. 2001;184:1496–1501. - PubMed
    1. Subak LL, Waetjen LE, Van den Eeden S, Thom DH, Vittinghoff E, Brown JS. Cost of pelvic organ prolapse surgery in the United States. Obstet Gynecol. 98:646–651. (20010) - PubMed
    1. Olsen AL, Smith VJ, Bergstrom JO, Colling JC, Clark AL. Epidemiology of surgically managed pelvic organ prolapse and urinary incontinence. Obstet Gynecol. 1997;89:501–506. - PubMed
