Imaging features and progression of hyperostosis cranialis interna

Abstract

Background and purpose: HCI is a unique autosomal-dominant sclerosing bone dysplasia affecting the skull base and the calvaria, characterized by cranial nerve deficits due to stenosis of neuroforamina, whereby the mandible is affected to a lesser extent. The aim of this study is to describe the specific radiologic characteristics and course of the disorder.

Materials and methods: CT scans of affected individuals within 1 family were analyzed and compared with scans of their unaffected family members and with an age- and sex-matched control group. Linear measurements were performed of the inner table, the medulla, and the outer table of different skull locations, and attenuation (density) measurements of the same regions were recorded. Neuroforamina widths were recorded as well.

Results: There was significant thickening of the skull in the frontal, parietal, temporal, and occipital regions, which was mainly due to thickening of the inner table of the skull. The attenuation of the deposited hyperostotic bone was lower than normal cortical bone.

Conclusions: HCI is the only genetic bone dysplasia known that is confined to the craniofacial area. The hyperostotic bone is less attenuated than normal cortical bone. The observed radiologic abnormalities explain the possible impairment of the olfactory, optic, trigeminal, facial, and vestibulocochlear nerves.

Fig 1.

3D reconstruction of a normal skull base and one of a patient with HCI. The left image is an unaffected individual in whom all neuroforamina can be identified. The right image is an affected individual with thickened calvaria and a bulgy skull base; neuroforamina are hardly visible.

Fig 2.

Pedigree of the affected kindred. An asterisk is placed if the individual had undergone a CT scan.

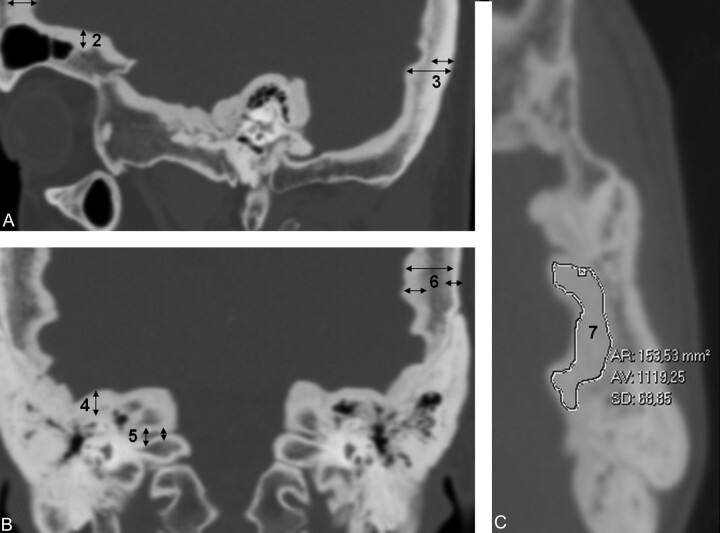

Fig 3.

Simplified examples of different measurements. A and B, linear measurements of skull thickness and neuroforamen width. C, attenuation measurement of freehand region of interest at the inner table of parietal bone. 1, frontal bone measurements; 2, frontal skull base inner table thickness; 3, occipital bone measurements; 4, middle skull base inner table thickness; 5, internal auditory canal measurements (fundus = lateral part, porus = medial part); 6, parietal bone measurements, and 7, parietal inner table attenuation measurement.

Fig 4.

Evolution of groups 1 and 3 per anatomic region. A, frontal bone; B, parietal bone; C, occipital bone; D, skull base; E, internal auditory canal, and F, miscellaneous. X-axis = age; Y-axis = distance (mm). TI = inner table (tabula interna); TE = outer table (tabula externa).

Fig 5.

Density profiles of skull transsections in frontal (upper) and frontotemporal (lower) bone (upper) region. X-axis = distance; Y-axis = attenuation (HU). The higher peak correlates with the outer table. Inner table attenuation measurements are found to be lower in affected individuals than outer table attenuation, in contrast to unaffected individuals.

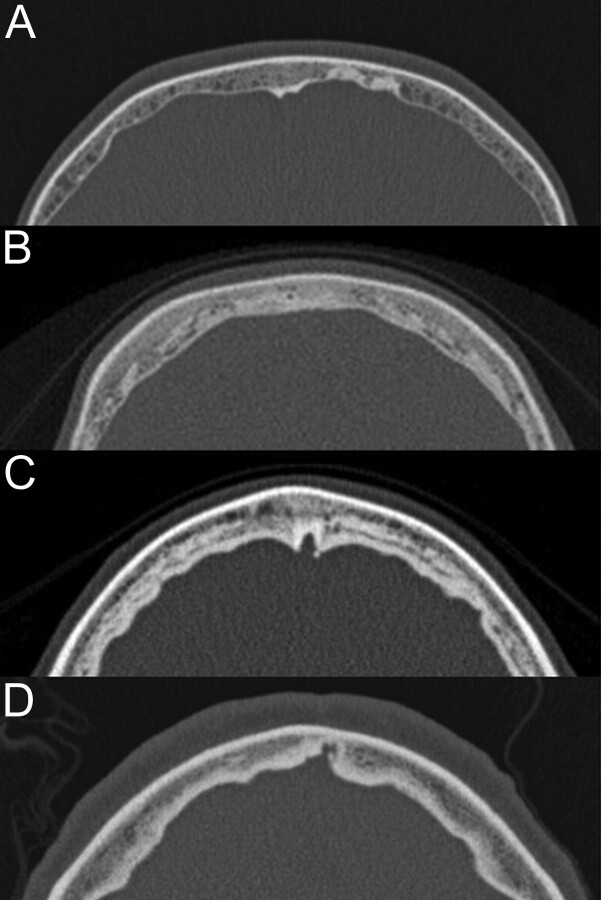

Fig 6.

Development of abnormalities in the frontal bone, axial images. A, age 9; B, age 16; C, age 23; D, age 68.

Fig 7.

Temporal bone. A, 9-year-old boy: Hyperostotic superior (asterisk) and inferior lip of the IAC (coronal reconstruction). B, 41-year-old woman: Pinpoint internal auditory canal (arrow, sagittal reconstruction). C, Progressive bilateral narrowing of the IAC in a 16-year-old girl (asterisk, coronal reconstruction). D, Hyperostotic stylomastoid process in a 44-year-old woman (arrow, coronal reconstruction). E–G: Axial images of left temporal bones with extensive hyperostosis in posterior fossa (asterisk) after foramen magnum decompression (double-headed arrow). E, 41-year-old woman with extensive pneumatization progressively substituted by sclerotic bone (F and G). Note the middle ear space is not affected (arrow G).
