4-(4-Bromo-phen-yl)-1-(2,6-difluoro-benz-yl)-3-(3,4,5-trimeth-oxy-phen-yl)-1H-1,2,4-triazole-5(4H)-thione

Abstract

In the title compound, C(24)H(20)BrF(2)N(3)O(3)S, the triazole ring (r.m.s. deviation = 0.0107 Å) makes dihedral angles of 28.18 (14), 63.76 (14) and 77.01 (18)°, respectively, with the trimeth-oxy-, bromo-, and difluoro-substituted benzene rings. The C atoms of the meta meth-oxy groups are roughly coplanar with their ring [displacements = -0.289 (4) and 0.083 (7) Å], whereas the C atom of the para group is displaced [1.117 (3) Å]. In the crystal, inversion dimers linked by two pairs of C-H⋯O hydrogen bonds occur. The ring motif of the two hydrogen bonds to their symmetry-generated O-atom acceptors is R(2) (2)(8).

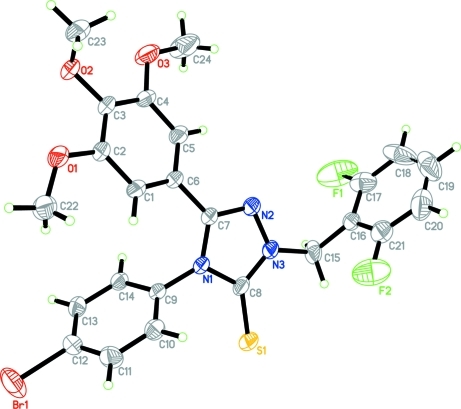

Fig. 1.

The molecular structure of the title compound, showing 30% probability displacement ellipsoids.

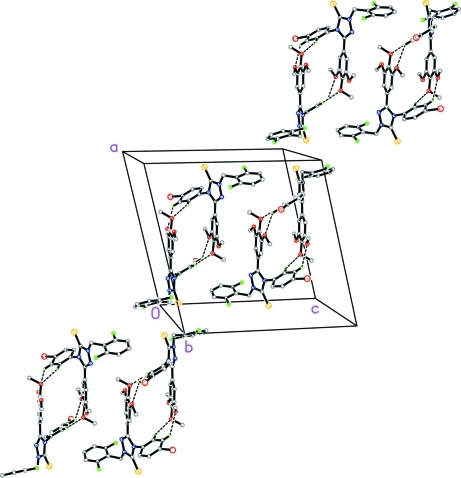

Fig. 2.

The crystal packing of the title compound, viewed down b axis. Dashed lines represent hydrogen bonds.
