. 2012 Sep 1;17(5):e801-6.
doi: 10.4317/medoral.17861.

Resonance frequency analysis-reliability in third generation instruments: Osstell mentor®

Mariano Herrero-Climent  1 , Matteo Albertini, Jose-Vicente Rios-Santos, Pedro Lázaro-Calvo, Ana Fernández-Palacín, Pedro Bullon
Affiliations

Resonance frequency analysis-reliability in third generation instruments: Osstell mentor®

Mariano Herrero-Climent et al. Med Oral Patol Oral Cir Bucal. .

Abstract

Few studies assess repeatability and reproducibility in registers of resonance frequency analysis (a value of dental implant stability).

Objective: Few studies assess repeatability and reproducibility in resonance frequency analyses (implant stability evaluation). This study is aimed at assessing reliability (repeatabilty and reproducibility) in the Osstell Mentor® system using the intraclass correlation coefficient (ICC) as the statistical method.

Study design: ISQ measurements of RFA were carried out by means of the Osstell Mentor® instrument in 58 implants in 19 patients. Six measurements were performed on each implant by means of two different Smart-Pegs (I and II). Three consecutive measurements were registered with each transducer.

Results: Average ISQ varied from 72.43 to 72.60 and 73.26 in the first, second and third measurements, respectively with the SamrtPeg I and from 72.98 to 73.26 and 73.74 in the first, second and third measurements, respectively with the SamrtPeg II . Exactly equal values were observed in 10.43 and 12.1% of the cases with Smart-Pegs I and II, respectively. The intraclass correlation coefficient was 0.96 and 0.96 for Smart Pegs I and II, respectively. Repeatability and reproducibility was 0.97 for both Smart-Pegs I and II.

Conclusions: The RFA system contributed by Osstell Mentor® renders almost perfect reproducibility and repeatability, as proven by statistical analysis carried out by means of ICC with 95% confidence level. This instrument contributes highly reliable RFA measurements in dental implants.

PubMed Disclaimer

Figures

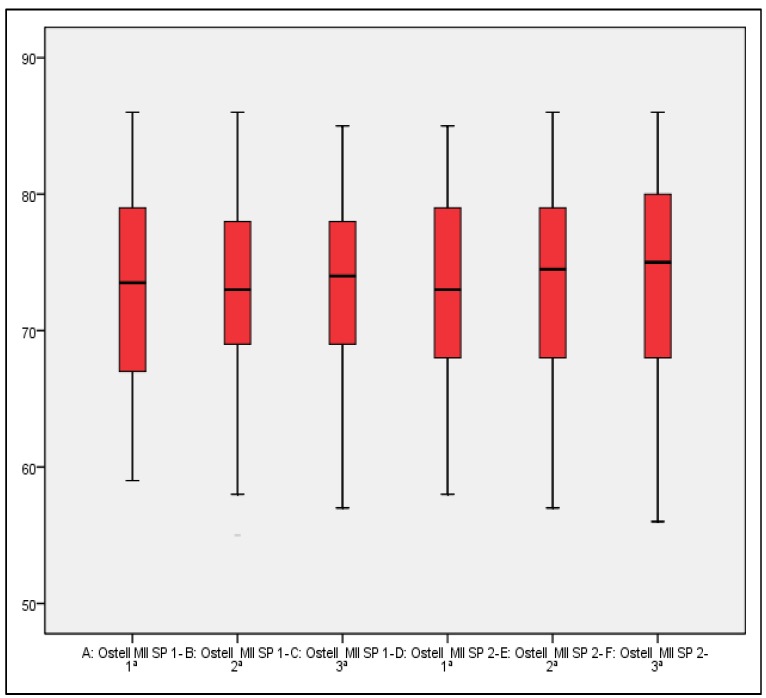

Figure 1
Figure 1
Means and interquartile difference of the obtained values with different Smart-Pegs (I and II) (3 measurements with each one).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Buser D, Mericske-Stern R, Bernard JP, Behneke A, Behneke N, Hirt HP et al. Long-term evaluation of nonsubmerged ITI implants. Part 1: 8-year life table analysis of a prospective multicenter study with 2359 implants. Clin Oral Implants Res. 1997;8:161–172. - PubMed
    1. Gapski R, Wang HL, Mascarenhas P, Lang NP. Critical review of immediate implant loading. Clin Oral Implants Res. 2003;14:515–27. - PubMed
    1. Rocci A, Martignoni M, Burgos PM, Gottlow J, Sennerby L. Histology of retrieved immediately and early loaded oxidizedimplants:Light microscopic observations after 5 to 9 monthsof loading in the posterior mandible. Clin Implant Dent Relat Res. 2003;5(suppl 1):88–98. - PubMed
    1. Degidi M, Scarano A, Petrone G, Piattelli A. Histological analysis of clinically retrieved immediately loaded implants:Areport of 11 cases. Clin Implant Dent Relat Res. 2003;5:89–93. - PubMed
    1. Weber HP, Morton D, Gallucci GO, Roccuzzo M, Cordaro L, Grutter L. Consensus statements and recommended clinical procedures regarding loading protocols. Int J Oral Maxillofac Implants. 2009;24 Suppl:180–3. - PubMed
