SurvNet: a web server for identifying network-based biomarkers that most correlate with patient survival data

Abstract

An important task in biomedical research is identifying biomarkers that correlate with patient clinical data, and these biomarkers then provide a critical foundation for the diagnosis and treatment of disease. Conventionally, such an analysis is based on individual genes, but the results are often noisy and difficult to interpret. Using a biological network as the searching platform, network-based biomarkers are expected to be more robust and provide deep insights into the molecular mechanisms of disease. We have developed a novel bioinformatics web server for identifying network-based biomarkers that most correlate with patient survival data, SurvNet. The web server takes three input files: one biological network file, representing a gene regulatory or protein interaction network; one molecular profiling file, containing any type of gene- or protein-centred high-throughput biological data (e.g. microarray expression data or DNA methylation data); and one patient survival data file (e.g. patients' progression-free survival data). Given user-defined parameters, SurvNet will automatically search for subnetworks that most correlate with the observed patient survival data. As the output, SurvNet will generate a list of network biomarkers and display them through a user-friendly interface. SurvNet can be accessed at http://bioinformatics.mdanderson.org/main/SurvNet.

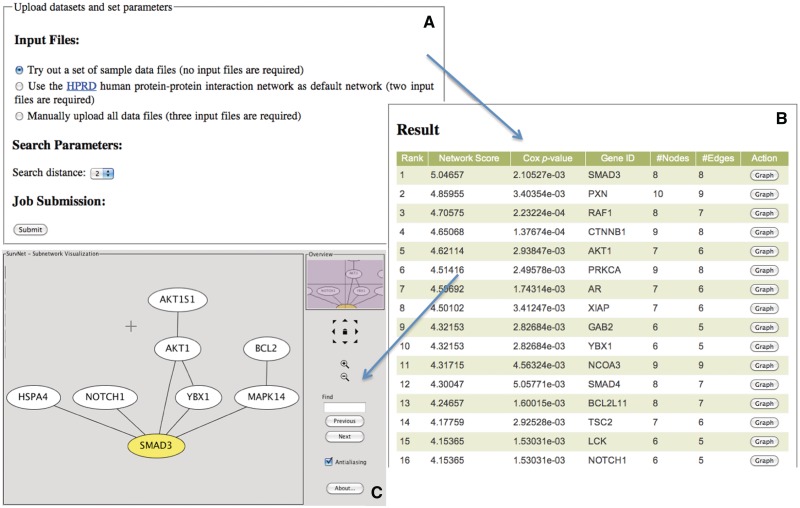

Figure 1.

Snapshots of the SurvNet web server. (A) Input page, through which input files and a search parameter can be specified. (B) Output page, on which the top subnetwork biomarkers identified are displayed. (C) Visualization page, on which subnetworks can be visualized in a user-friendly way.
