. 2012 Apr 1;68(Pt 4):o1195.
doi: 10.1107/S1600536812012408. Epub 2012 Mar 28.

4β-Hy-droxy-12,13-ep-oxy-trichothec-9-ene

Bi-Zeng Mao, Chao Huang, Yu-Zhe Chen, Zhen-Er Lv, Shao-Yuan Chen

4β-Hy-droxy-12,13-ep-oxy-trichothec-9-ene

Bi-Zeng Mao et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The asymmetric unit in the crystal of the title compound, C(15)H(22)O(3), contains two independent mol-ecules with similar structures. Each mol-ecule contains two six-membered rings and one five-membered ring. The five-membered ring displays an envelope conformation with the C atom linking the epoxy group as the flap, while the two six-membered rings show half-chair conformations. The two independent mol-ecules are linked by an O-H⋯O hydrogen bond. These dimers are further linked by O-H⋯O hydrogen bonds, forming supra-molecular chains running along the a axis.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

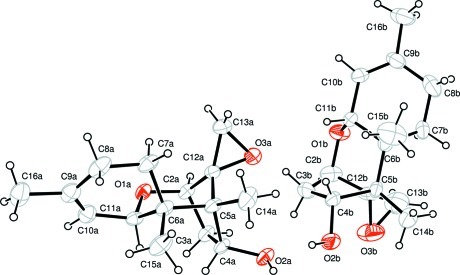

The molecular structure of (I) with 25% probability displacement ellipsoids (arbitrary spheres for H atoms).
Fig. 2.
Fig. 2.
The crystal packing diagram showing hydrogen bonds (dashed lines).
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Chen, S.-Y., Zhang, C.-L., Chen, Y.-Z. & Lin, F.-C. (2008). Acta Cryst. E64, o702. - PMC - PubMed
    1. Cremer, D. & Pople, J. A. (1975). J. Am. Chem. Soc. 97, 1354–1358.
    1. Farrugia, L. J. (1997). J. Appl. Cryst. 30, 565.
    1. Farrugia, L. J. (1999). J. Appl. Cryst. 32, 837–838.
    1. Rigaku (1998). PROCESS-AUTO Rigaku Corporation, Tokyo, Japan.
