. 2012 Jul;22(5):387-394.
doi: 10.1007/s00590-011-0848-0. Epub 2011 Aug 19.

Revision of tumor prosthesis of the knee joint

Yukihiro Yoshida, Shunzo Osaka, Toshio Kojima, Masafumi Taniguchi, Eiji Osaka, Yasuaki Tokuhashi

Revision of tumor prosthesis of the knee joint

Yukihiro Yoshida et al. Eur J Orthop Surg Traumatol. 2012 Jul.

Abstract

BACKGROUND: Among 40 patients with primary malignant tumors of the knee joint who underwent reconstruction of the affected limb with tumor prosthesis, revision was required in 7 due to stem breakage or loosening. SUBJECTS AND METHODS: In the 7 cases undergoing revision, conditions and background factors at the time of breakage, the breakage site, time of revision, models of previous and new prostheses, stem diameters before and after revision, details of the revision (blood loss, operative time), and the presence or absence of adjuvant therapy were determined. RESULTS: The replacement site was the distal femur in 5 and proximal tibia in 2. Revision was performed 6 years and 2 months after the previous prosthesis placement on average. The broken prosthesis model was KMFTR in 4 and HMRS and the physio-hinge type in one each. Revision due to loosening was performed in a case requiring replacement with Growing Kotz prosthesis. The model was switched to HMRS in 3, and the stem diameter was changed to 12 mm in 3 KMFTR breakage cases. The mean stem diameters were 11.2 and 10.2 mm in the non-revision and revision groups. The respective resection rates were 36 and 45%. The mean functional evaluation was 70.1% before and 76.2% after revision. CONCLUSION: To reduce the risk of tumor prosthesis breakage, the amount of bone resection should be limited to 30% or less in the affected bone, the stem diameter should be at least 12 mm, and the stem shape should be fitted to the anatomical shape of the femur.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

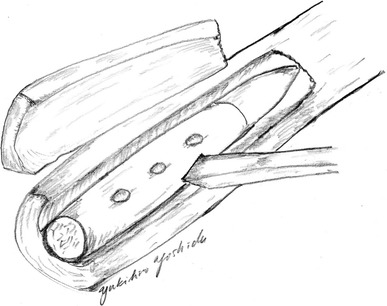

The residual stem in the femur was carefully cut off using a Surge Airtome or chisel. It is important to carefully remove the broken stem because of intense bone ingrowth. Attention should also be paid to avoiding breakage of the fenestrated bone fragment and to return it to the original position after placement of the new stem
Fig. 2
Fig. 2

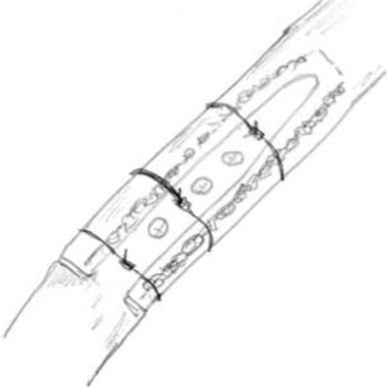

After placement of the new stem, bone grafting is performed around the stem as shown. The use of a cable should also be considered for achieving stronger fixation
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Gebhardt MC, Flugstad DI, Springfield DS, Mankin HJ. The use of bone allografts for limb salvage in high-grade extremity osteosarcoma. Clin Orthop Relat Res. 1991;270:181–196. - PubMed
    1. Asada N, Tsuchiya H, Kitaoka K, Mori Y, Tomita K. Massive autoclaved allografts and autografts for limb salvage surgery A 1–8 year follow–up of 23 patients. Acta Orthop Scand. 1997;68:392–395. doi: 10.3109/17453679708996184. - DOI - PubMed
    1. Manabe J, Kawaguchi N, Matsumoto S. Pasteurized autogenous bone graft for reconstruction after resection of malignant bone and soft tissue tumors: imaging features. Semin Musculoskeletal Radiol. 2001;5:195–200. doi: 10.1055/s-2001-15680. - DOI - PubMed
    1. Tsuchiya H, Abdel-Wanis ME, Tomita K. Biological reconstruction after excision of juxta-articular osteosarcoma around the knee: a new classification system. Anticancer Res. 2006;26(1):44–53. - PubMed
    1. Mittermayer F, Krepler P, Dominkus M, Schwameis E, Sluga M, Heinzl H, Kotz R. Long-term followup of uncemented tumor endoprostheses for the lower extremity. Clin Orthop Relat Res. 2007;388:167–177. doi: 10.1097/00003086-200107000-00024. - DOI - PubMed
