. 2012 Jul 1;68(Pt 7):o2127.
doi: 10.1107/S1600536812026761. Epub 2012 Jun 16.

3,4-Dimeth-oxy-N-((E)-4-{[1-(prop-2-en-1-yl)-1H-1,2,3-triazol-4-yl]meth-oxy}benzyl-idene)aniline

Mehmet Akkurt, Aliasghar Jarrahpour, Hashem Sharghi, Mehdi Mohammadi Chermahini, Pezhman Shiri, Orhan Büyükgüngör

3,4-Dimeth-oxy-N-((E)-4-{[1-(prop-2-en-1-yl)-1H-1,2,3-triazol-4-yl]meth-oxy}benzyl-idene)aniline

Mehmet Akkurt et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(21)H(22)N(4)O(3), the triazole ring is planar [maximum deviaton = 0.004 (1) Å] and makes dihedral angles of 26.21 (8) and 38.66 (8)° with the two benzene rings. In the crystal, mol-ecules are linked by C-H⋯O hydrogen bonds, forming zigzag chains along [1-11]. In addition, a weak C-H⋯π intreraction is also observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

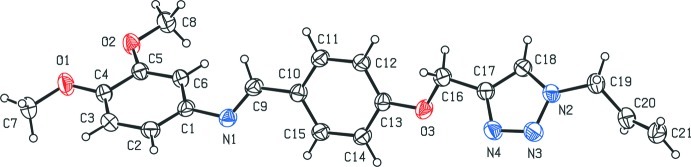

The title molecule shown with the displacement ellipsoids for non-H atoms at the 30% probability level.
Fig. 2.
Fig. 2.

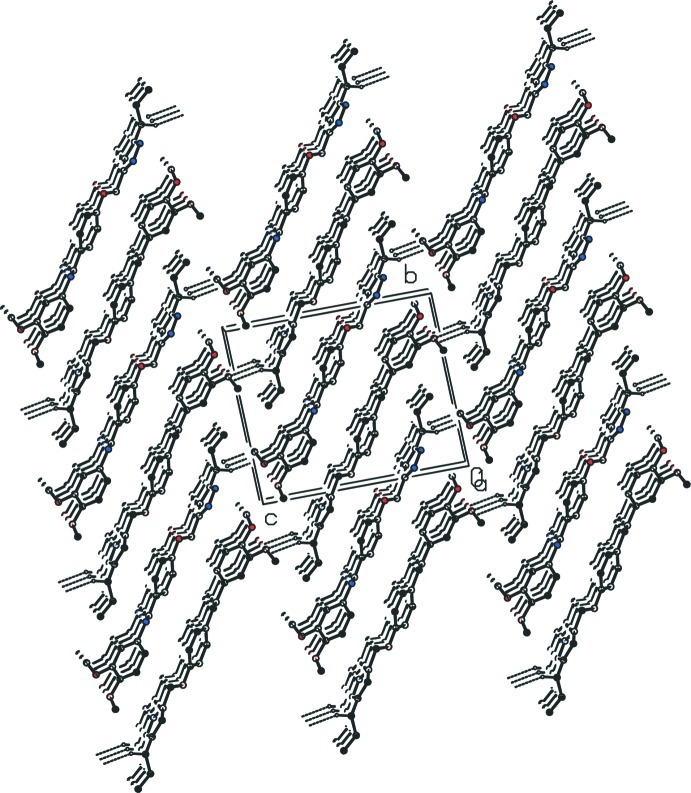

Crystal packing and hydrogen bonding diagram of the title compound shown down the a axis. H atoms not participating in hydrogen bonding have been omitted for clarity.
See this image and copyright information in PMC

References

    1. Farrugia, L. J. (1997). J. Appl. Cryst. 30, 565.
    1. Farrugia, L. J. (1999). J. Appl. Cryst. 32, 837–838.
    1. Hranjec, M., Starcevic, K., Pavelic, S. K., Lucin, P., Pavelic, K. & Zamola, G. K. (2011). Eur. J. Med. Chem. 46, 2274–2279. - PubMed
    1. Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. - PubMed
    1. Shi, Y. & Zhou, C. H. (2011). Bioorg. Med. Chem. Lett. 21, 956–960. - PubMed
