. 2012 Jul 1;68(Pt 7):m888.
doi: 10.1107/S1600536812024774. Epub 2012 Jun 13.

Tetra-ethyl-ammonium tris-(thio-cyanato-κN)[tris-(1H-pyrazol-1-yl-κN(2))methane]-nickelate(II)

Ganna Lyubartseva  1 , Sean Parkin, Uma Prasad Mallik, Hee Kyung Jeon
Affiliations

Tetra-ethyl-ammonium tris-(thio-cyanato-κN)[tris-(1H-pyrazol-1-yl-κN(2))methane]-nickelate(II)

Ganna Lyubartseva et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The title salt, (C₈H₂₀N)[Ni(NCS)₃(C₁₀H₁₀N₆)], consists of a tetra-ethyl-ammonium cation and an anion comprising an octa-hedral Ni(II) atom surrounded by three N atoms from a tripodal tris-(pyrazol-1-yl)methane ligand, and three thio-cyanate ligands, each bound at the N-atom end. The ligand Ni-N distances range from 2.097 (2) to 2.127 (2) Å for the tripodal ligand and from 2.045 (2) to 2.075 (2) Å for the thio-cyanate ligands. The dihedral angles between the three pyrazole rings are 59.03 (12), 53.09 (10) and 67.90 (10)°.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

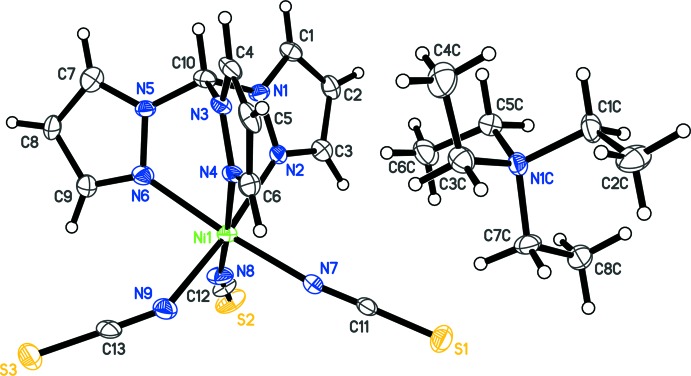

View of the title compound with displacement ellipsoids drawn at the 50% probability level.
Fig. 2.
Fig. 2.

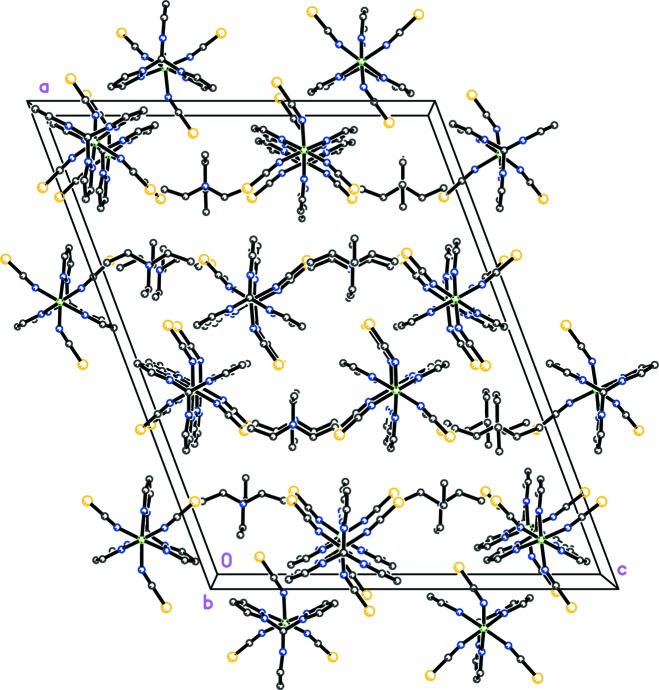

Packing diagram of the title compound as viewed down the b axis. Hydrogen atoms are omitted to enhance clarity.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Astley, T., Gulbis, J. M., Hitchman, M. A. & Tiekink, E. R. T. (1993). J. Chem. Soc. Dalton Trans. pp. 509–515.
    1. Bruker (2006). APEX2 and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Czernuszewicz, R. S., Sheats, J. E. & Spiro, T. G. (1987). Inorg. Chem. 26, 2063–2067.
    1. Kitajima, N., Fujisawa, K., Fujimoto, C., Morooka, Y., Hashimoto, S., Kitagawa, T., Toriumi, K., Tatsumi, K. & Nakamura, A. (1992). J. Am. Chem. Soc. 114, 1277–1291.
    1. Lippard, S. J. & Armstrong, W. H. (1985). J. Am. Chem. Soc. 107, 3730–3731.
