. 2012 Jul 1;68(Pt 7):m973.
doi: 10.1107/S1600536812028413. Epub 2012 Jun 30.

Bis[tris-(3,5-dimethyl-1H-pyrazol-1-yl-κN(2))meth-yl]sodium trifluoro-methane-sulfonate

Ganna Lyubartseva, Sean Parkin, Uma Prasad Mallik

Bis[tris-(3,5-dimethyl-1H-pyrazol-1-yl-κN(2))meth-yl]sodium trifluoro-methane-sulfonate

Ganna Lyubartseva et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title salt, [Na(C(16)H(22)N(6))(2)]CF(3)SO(3), the Na(+) cation is coordinated by six N atoms from two tridentate tris-(3,5-dimethyl-pyrazol-1-yl)methane ligands in a distorted octa-hedral geometry. The Na-N distances range from 2.427 (3) to 2.507 (3) Å, intra-ligand N-Na-N angles range from 74.71 (8) to 79.31 (9)°, and adjacent inter-ligand N-Na-N angles range between 100.42 (9) and 104.97 (9)°. The structure is twinned by inversion [occupancy factors = 0.50 (9)] and the trifluoro-methane-sulfonate anion is disordered, with two end-over-end orientations of unequal occupancy [0.781 (3) and 0.219 (3)].

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

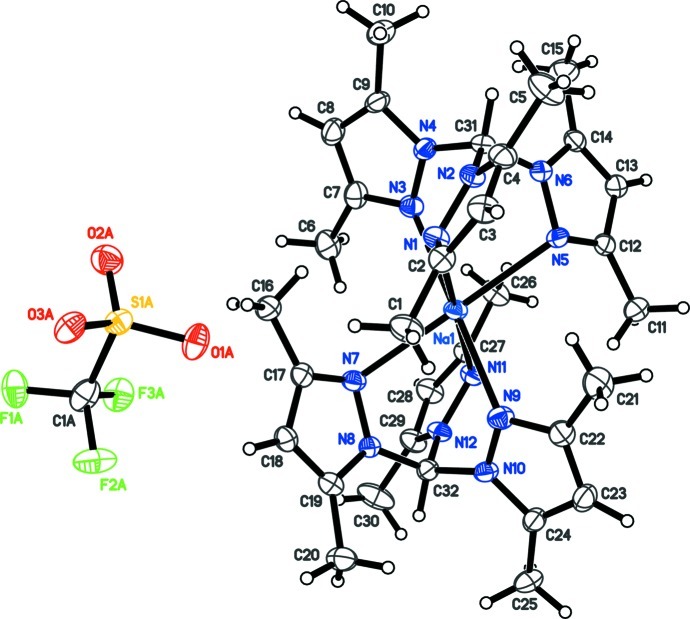

A view of the title compound with displacement ellipsoids drawn at the 50% probability level.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Astley, T., Gulbis, J. M., Hitchman, M. A. & Tiekink, E. R. T. (1993). J. Chem. Soc. Dalton Trans. pp. 509–515.
    1. Nonius (1998). COLLECT. Nonius BV, Delft, The Netherlands.
    1. Otwinowski, Z. & Minor, W. (1997). Methods in Enzymology, Vol. 276, Macromolecular Crystallography, Part A, edited by C. W. Carter Jr & R. M. Sweet, pp. 307–326. New York: Academic Press.
    1. Parkin, S. (2000). Acta Cryst. A56, 157–162. - PubMed
    1. Parkin, S., Moezzi, B. & Hope, H. (1995). J. Appl. Cryst. 28, 53–56.
