. 2012 Apr 16;4(1):3.
doi: 10.1186/2036-7902-4-3.

Emergency department ultrasonography guided long-axis antecubital intravenous cannulation: How to do it

David C Riley  1 , Steven Garcia
Affiliations

Emergency department ultrasonography guided long-axis antecubital intravenous cannulation: How to do it

David C Riley et al. Crit Ultrasound J. .

Abstract

An 85-year-old woman with a past medical history of severe peripheral vascular disease and right below knee amputation presented to the emergency department with a 1-day history of non-positional dizziness and weakness. The patient required intravenous access to work up her dizziness and weakness. The patient had multiple failed blind ED peripheral IV attempts performed in the past. Emergency department bedside ultrasonography with a high frequency linear array vascular probe was used to guide antecubital brachial vein cannulation on the first attempt using the long-axis approach.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Dr, Riley performing an ultrasound guided long-axis antecubital intravenous line placement.
Figure 2
Figure 2

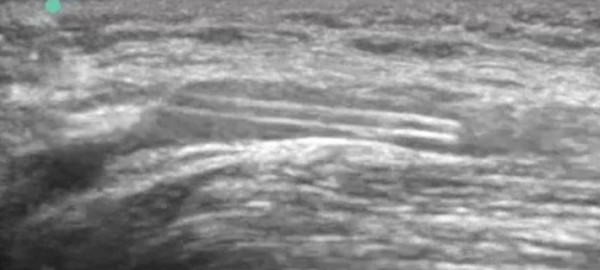

Needle tip visualized long-axis inside the antecubital vein.
Figure 3
Figure 3
Catheter visualized long-axis inside the antecubital vein.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Aponte H, Acosta S, Rigamonti D, Sylvia B, Austin P, Samolitis T. The use of ultrasound for placement of intravenous catheters. AANA J. 2007;75:212–6. - PubMed
    1. Blaivas M, Brannam L, Fernandez E. Short-axis versus long-axis approaches for teaching ultrasound-guided vascular access on a new inanimate model. Acad Emerg Med. 2003;10:1307–11. doi: 10.1111/j.1553-2712.2003.tb00002.x. - DOI - PubMed
    1. Brannam L, Blaivas M, Lyon M, Flake M. Emergency nurses' utilization of ultrasound guidance for placement of peripheral intravenous lines in difficult-access patients. Acad Emerg Med. 2004;11:1361–3. doi: 10.1111/j.1553-2712.2004.tb01929.x. - DOI - PubMed
    1. Chinnock B, Thornton S, Hendey GW. Predictors of success in nurse-performed ultrasound-guided cannulation. J Emerg Med. 2007;33:401–5. doi: 10.1016/j.jemermed.2007.02.027. - DOI - PubMed
    1. Costantino TG, Parikh AK, Satz WA, Fojtik JP. Ultrasonography-guided peripheral intravenous access versus traditional approaches in patients with difficult intravenous access. Ann Emerg Med. 2005;46:456–61. doi: 10.1016/j.annemergmed.2004.12.026. - DOI - PubMed
