Design and application of chitosan microspheres as oral and nasal vaccine carriers: an updated review

Abstract

Chitosan, a natural biodegradable polymer, is of great interest in biomedical research due to its excellent properties including bioavailability, nontoxicity, high charge density, and mucoadhesivity, which creates immense potential for various pharmaceutical applications. It has gelling properties when it interacts with counterions such as sulfates or polyphosphates and when it crosslinks with glutaraldehyde. This characteristic facilitates its usefulness in the coating or entrapment of biochemicals, drugs, antigenic molecules as a vaccine candidate, and microorganisms. Therefore, chitosan together with the advance of nanotechnology can be effectively applied as a carrier system for vaccine delivery. In fact, chitosan microspheres have been studied as a promising carrier system for mucosal vaccination, especially via the oral and nasal route to induce enhanced immune responses. Moreover, the thiolated form of chitosan is of considerable interest due to its improved mucoadhesivity, permeability, stability, and controlled/extended release profile. This review describes the various methods used to design and synthesize chitosan microspheres and recent updates on their potential applications for oral and nasal delivery of vaccines. The potential use of thiolated chitosan microspheres as next-generation mucosal vaccine carriers is also discussed.

Keywords: chitosan microspheres; mucosal and systemic immune responses; nasal; oral; vaccine delivery.

Figure 1

Structure of chitin and chitosan.

Figure 2

Scanning electron microscope photographs of CMs, BBD-loaded CMs, MCMs, and BBD-loaded MCMs (5000×). Notes: Bar represents 5 μm. Reprinted from Biomaterials, 29(12). Jiang HL, Kang ML, Quan JS, et al. The potential of mannosylated chitosan microspheres to target macrophage mannose receptors in an adjuvant-delivery system for intranasal immunization, 1931–1939. Copyright 2008 with permission from Elsevier. Abbreviations: BBD, Bordetella bronchiseptica dermonecrotoxin; CM, chitosan microsphere; MCM, mannosylated chitosan microsphere.

Figure 3

Representative structure of thiolated chitosan: (A) general structure of thiolated chitosan modified by an –SH group (X: linker) and (B) chitosan-N-acetyl-cysteine (modification of chitosan at the D-glucosamine unit by N-acetyl-cysteine).

Figure 4

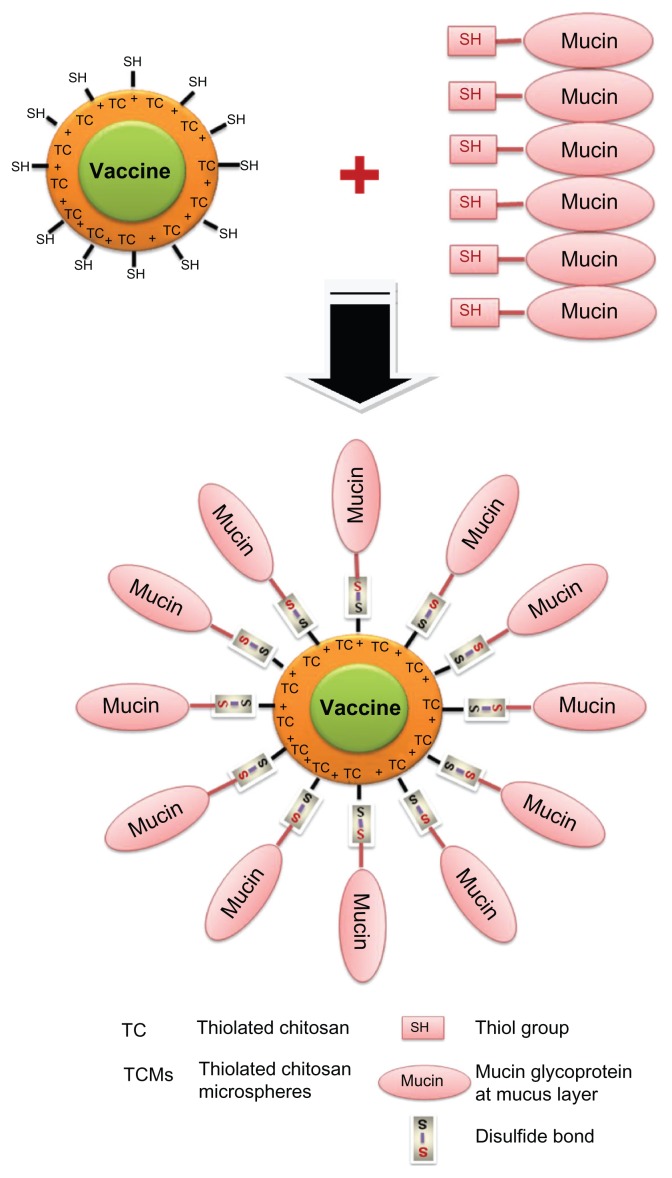

Schematic representation of functional interaction between TCMs and mucin in mucosal vaccine delivery. Abbreviation: TCM, thiolated chitosan microsphere.
