. 2012 Nov 1;68(Pt 11):o3142.
doi: 10.1107/S1600536812041682. Epub 2012 Oct 20.

N,N-Bis(2-hy-droxy-eth-yl)-4-methyl-benzene-sulfonamide

Nafeesa Mushtaq  1 , Islam Ullah Khan, Muhammad Yar, Sadia Afzal, Jim Simpson
Affiliations

N,N-Bis(2-hy-droxy-eth-yl)-4-methyl-benzene-sulfonamide

Nafeesa Mushtaq et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound C(11)H(17)NO(4)S, an intra-molecular O-H⋯O hydrogen bond forms an S(8) ring and determines the conformation of the bis-(2-hy-droxy-eth-yl) segment of the mol-ecule, holding the two CH(2)CH(2)OH groups close to coplanar (r.m.s. deviation = 0.185 Å). In the crystal, O-H⋯O hydrogen bonds link the mol-ecules into zigzag chains along the b axis. Weaker additional C-H⋯O and C-H⋯π contacts generate a three dimensional network, with mol-ecules stacked along the b-axis direction.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

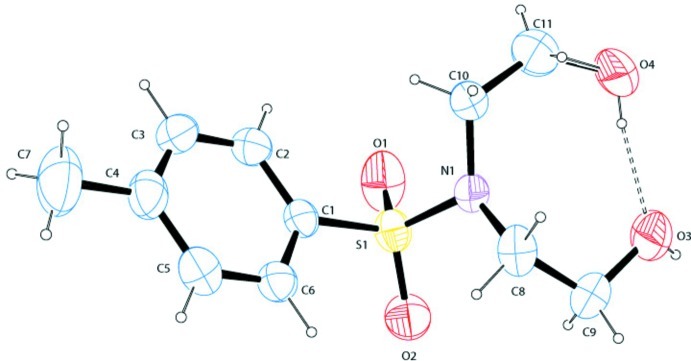

The molecular structure of (1) showing the atom numbering scheme with displacement ellipsoids drawn at the 50% probability level. The intramolecular hydrogen bond is drawn as an open dashed line.
Fig. 2.
Fig. 2.
Zigzag chains of molecules formed along b by intermolecular O—H···O hydrogen bonds, shown as dashed lines.
Fig. 3.
Fig. 3.
Overall packing for (1) viewed along the b axis with hydrogen bonds drawn as dashed lines.
See this image and copyright information in PMC

References

    1. Allen, F. H., Johnson, O., Shields, G. P., Smith, B. R. & Towler, M. (2004). J. Appl. Cryst. 37, 335–338.
    1. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2, pp. S1–S19.
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573.
    1. Bruker (2007). APEX2 and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Casini, A., Scozzafava, A., Mastrolorenzo, A. & Supuran, L. T. (2002). Curr. Cancer Drug Targets, 2, 55–75. - PubMed
