. 2012 Sep;4(3):176-81.
doi: 10.5114/jcb.2012.30684. Epub 2012 Sep 29.

Re-implantation of suboptimal prostate seed implantation: technique with intraoperative treatment planning

Laura Doyle  1 , Adam J Hesney, Katherine L Chapman, Haisong Liu, Perry R Weiner, Adam P Dicker, Yan Yu, Timothy N Showalter
Affiliations

Re-implantation of suboptimal prostate seed implantation: technique with intraoperative treatment planning

Laura Doyle et al. J Contemp Brachytherapy. 2012 Sep.

Abstract

Purpose: Post-implant dosimetry following prostate seed implantation (PSI) occasionally reveals suboptimal dosimetric coverage of the gland. Published reports of re-implantation techniques have focused on earlier-generation techniques, including preplanned approaches and stranded seeds. The purpose of this case report is to describe a customizable approach to perform corrective re-implantation using loose seeds and intraoperative planning technique.

Material and methods: This case report describes a 63-year-old male with favorable risk prostate adenocarcinoma receiving PSI. Thirty day post-implant dosimetric evaluation revealed suboptimal coverage of the base of the gland. Using guidance from post-implant CT-images and real-time planning, the patient received a corrective re-implantation with intraoperative planning.

Results: Post-implant dosimetry after re-implantation procedure with intraoperative planning yielded improved target volume coverage that achieved standard dosimetric criteria.

Conclusions: Re-implantation as a salvage treatment technique after sub-optimal PSI is a valid treatment option performed with intraoperative real-time planning.

Keywords: low-dose-rate brachytherapy; prostate cancer; re-implantation; salvage therapy; seeds.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Needle and seed locations on BK-Standard template for initial implant
Fig. 2
Fig. 2
TRUS image of dosimetry from intra-operative treatment plan. Contours include prostate, urethra and rectum. Isodose lines show coverage of 100%, 125% and 150% of 145 Gy prescription dose
Fig. 3
Fig. 3
Shows inferior coverage at the base of the prostate gland following PSI
Fig. 4
Fig. 4
Mid-sagittal views of intended coveraged indicated by TRUS (upper) and achieved coverage as indicated by 30-day post-operative CT (lower)
Fig. 5
Fig. 5
Shows use of CT images to calculate approximate location and number of seeds needed for supplemental implant. Approximate positions on pre-implant plan served as a guide for seed locations during intra-operative planning
Fig. 6
Fig. 6

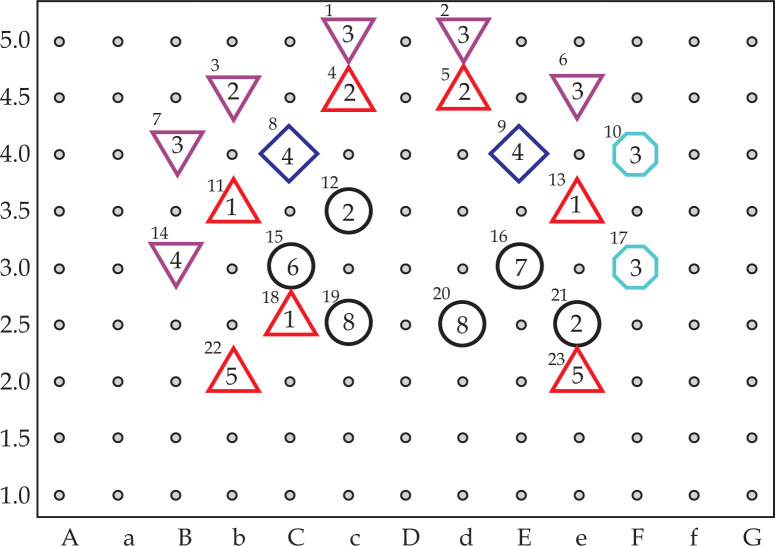

Planned needle and seed locations for second implant considering seed locations from first implant
Fig. 7
Fig. 7
Intra-operative plan considering seeds from initial implant
Fig. 8
Fig. 8

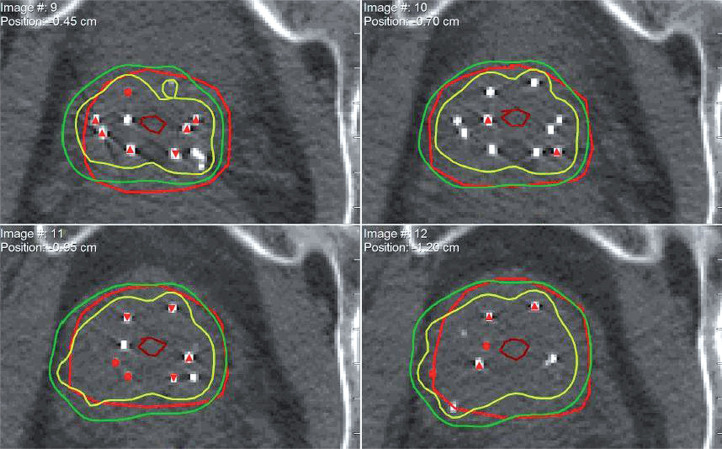

Post implant dosimetry from both initial and salvage PSI
See this image and copyright information in PMC

References

    1. Scherr D, Swindle P, Scardino P. National Comprehensive Cancer Network guidelines for the management of prostate cancer. Urology. 2003;61:14–24. - PubMed
    1. Kollmeier MA, Stock RG, Stone N. Biochemical outcomes after prostate brachytherapy with 5-year minimal follow-up: Importance of patient selection and implant quality. Int J Radiat Oncol Biol Phys. 2003;57:645–653. - PubMed
    1. Hinnen KA, Battermann JJ, van Roermund JG, et al. Long-term biochemical and survival outcome of 921 patients treated with I-125 permanent prostate brachytherapy. Int J Radiat Oncol Biol Phys. 2010;76:1433–1438. - PubMed
    1. Henry AM, Al-Qaisieh B, Gould K, et al. Outcomes following iodine-125 monotherapy for localized prostate cancer: The results of leeds 10-year single-center brachytherapy experience. Int J Radiat Oncol Biol Phys. 2010;76:50–56. - PubMed
    1. Ash D, Al-Qaisieh B, Bottomley D, et al. The correlation between D90 and outcome for I-125 seed implant monotherapy for localised prostate cancer. Radiother Oncol. 2006;79:185–189. - PubMed
