. 2013 Jun;145(6):1660-6.
doi: 10.1016/j.jtcvs.2013.01.020. Epub 2013 Feb 10.

Use of a low-resistance compliant thoracic artificial lung in the pulmonary artery to pulmonary artery configuration

Christopher N Scipione  1 , Rebecca E Schewe, Kelly L Koch, Andrew W Shaffer, Amit Iyengar, Keith E Cook
Affiliations

Use of a low-resistance compliant thoracic artificial lung in the pulmonary artery to pulmonary artery configuration

Christopher N Scipione et al. J Thorac Cardiovasc Surg. 2013 Jun.

Abstract

Background: Thoracic artificial lungs have been proposed as a bridge to transplant in patients with end-stage lung disease. Systemic embolic complications can occur after thoracic artificial lung attachment in the pulmonary artery to left atrium configuration. Therefore, we evaluated the function of a compliant thoracic artificial lung attached via the proximal pulmonary artery to distal main pulmonary artery configuration.

Methods: The compliant thoracic artificial lung was attached to 5 sheep (63 ± 0.9 kg) in the proximal pulmonary artery to distal main pulmonary artery configuration. Device function and animal hemodynamics were assessed at baseline and with approximately 60%, 75%, and 90% of cardiac output diverted to the compliant thoracic artificial lung. At each condition, dobutamine (0 and 5 μg·kg(-1)·min(-1)) was used to simulate rest and exercise conditions.

Results: At rest, cardiac output decreased from 6.20 ± 0.53 L/min at baseline to 5.40 ± 0.43, 4.66 ± 0.31, and 4.05 ± 0.27 L/min with 60%, 75%, and 90% of cardiac output to the compliant thoracic artificial lung, respectively (P < .01 for each flow diversion vs baseline). During exercise, cardiac output decreased from 7.85 ± 0.70 L/min at baseline to 7.46 ± 0.55, 6.93 ± 0.51, and 5.96 ± 0.44 L/min (P = .82, P = .19, and P < .01 with respect to baseline) with 60%, 75%, and 90% of cardiac output to the compliant thoracic artificial lung, respectively. The artificial lung resistance averaged 0.46 ± 0.02 and did not vary significantly with blood flow rate.

Conclusions: Use of a compliant thoracic artificial lung may be feasible in the proximal pulmonary artery to distal main pulmonary artery setting if its blood flow is held at less than 75% of cardiac output. To ensure a decrease in cardiac output of less than 10%, a blood flow rate less than 60% of cardiac output is advised.

PubMed Disclaimer

Conflict of interest statement

Disclosures/Conflicts of Interest: None

Figures

Figure 1
Figure 1
The compliant thoracic artificial lung (cTAL) demonstrating the blood and gas flow paths
Figure 2
Figure 2
Experimental pulmonary system setup with all resistive elements. The shunt includes the anastomoses (Ain and Aout), the cTAL and the flow occluder.
Figure 3
Figure 3

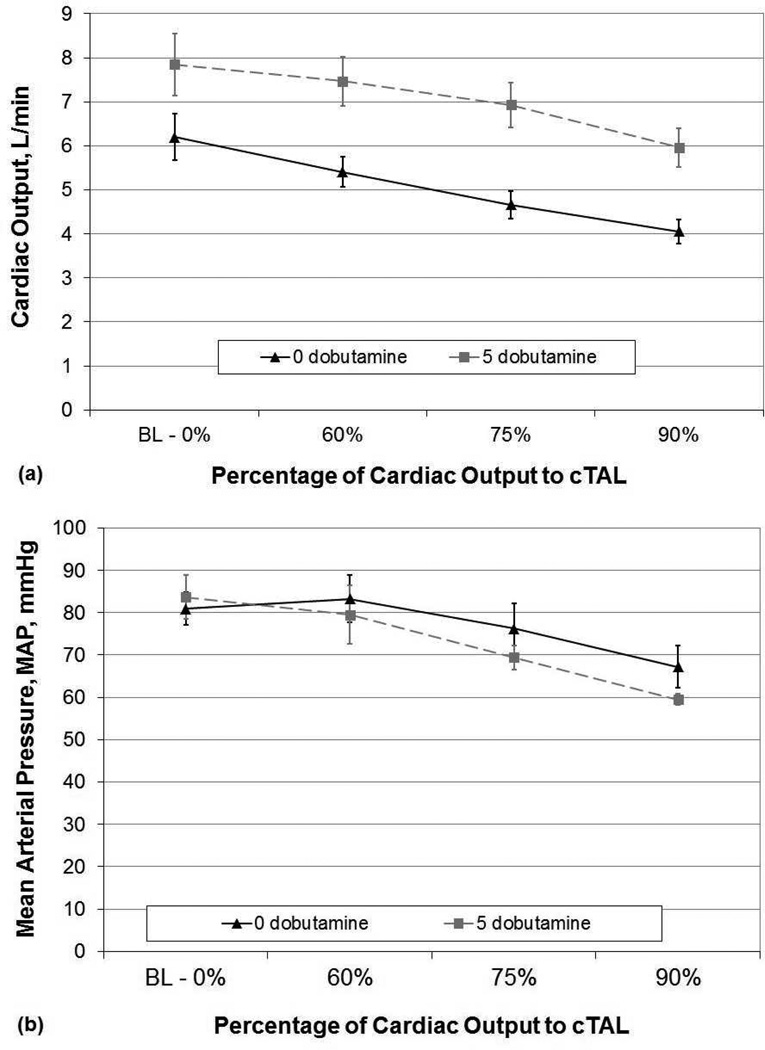

Cardiac output (a) and mean arterial pressure (b) versus the percentage of cardiac output shunted to the compliant artificial lung for dobutamine doses of 0 mcg/kg/min and 5 mcg/kg/min (BL=baseline).
Figure 4
Figure 4
Total pulmonary system resistance, RT, pulmonary vascular resistance, PVR, and shunt resistance, Rs, at varying percentages of cardiac output diverted to the compliant artificial lung for dobutamine doses of (a) 0 mcg/kg/min and (b) 5 mcg/kg/min.
Figure 5
Figure 5
Mean proximal pulmonary artery pressure versus the percentage of cardiac output shunted to the compliant artificial lung for dobutamine doses of 0 mcg/kg/min and 5 mcg/kg/min (BL=baseline).
See this image and copyright information in PMC

References

    1. Yusen RD, Shearon TH, Quian Y, et al. Lung transplantation in the United States, 1999–2008. Am J Transplant. 2010;10:1047–1068. - PubMed
    1. Garcia JP, Iacono A, Kon Z, et al. Ambulatory extracorporeal membrane oxygenation: a new approach for bridge-to-lung transplantion. J Thorac Cardiovasc Surg. 2010;139:e137–e139. - PubMed
    1. Mangi AA, Mason DP, Yun JJ, et al. Bridge to lung transplantation using short-term ambulatory extracorporeal membrane oxygenation. J Thorac Cardiovasc Surg. 2010;140:713–715. - PubMed
    1. Nosotti M, Rosso L, Palleschi A, et al. Bridge to lung transplantation by venovenous extracorporeal membrane oxygenation: a lesson learned on our first four cases. Transplant Proc. 2010;42:1259–1261. - PubMed
    1. Olsson KM, Simon A, Strueber M, et al. Extracorporeal membrane oxygenation in nonintubated patients as bridge to lung transplantation. Am J Transplant. 2010;10:2173–2178. - PubMed
