. 2013 Apr;84(2):178-83.
doi: 10.3109/17453674.2013.773413. Epub 2013 Feb 15.

Correlation of acromial morphology with impingement syndrome and rotator cuff tears

Maurice Balke  1 , Carolin Schmidt, Nicolas Dedy, Marc Banerjee, Bertil Bouillon, Dennis Liem
Affiliations

Correlation of acromial morphology with impingement syndrome and rotator cuff tears

Maurice Balke et al. Acta Orthop. 2013 Apr.

Abstract

Background and purpose: Indications for acromioplasty are based on clinical symptoms and are generally supported by typical changes in acromial morphology on standard radiographs. We evaluated 5 commonly used radiographic parameters of acromial morphology and assessed the association between different radiographic characteristics on the one hand and subacromial impingement or rotator cuff tears on the other.

Patients and methods: We measured acromial type (Bigliani), acromial slope (AS), acromial tilt (AT), lateral acromial angle (LAA), and acromion index (AI) on standard radiographs from 50 patients with full-thickness supraspinatus tendon tears, 50 patients with subacromial impingement, and 50 controls without subacromial pathology.

Results: The acromial type according to Bigliani was not associated with any particular cuff lesion. A statistically significant difference between controls and impingement patients was found for AS. AT of controls was significantly smaller than that of impingement patients and cuff-tear patients. LAA of cuff-tear patients differed significantly from that of controls and impingement patients, but LAA of controls was not significantly different from that of impingement patients. Differences between impingement patients and cuff-tear patients were also significant. AI of controls was significantly lower than of impingement patients and of cuff-tear patients. A good correlation was found between acromial type and AS.

Interpretation: A low lateral acromial angle and a large lateral extension of the acromion were associated with a higher prevalence of impingement and rotator cuff tears. An extremely hooked anterior acromion with a slope of more than 43° and an LAA of less than 70° only occurred in patients with rotator cuff tears.

PubMed Disclaimer

Figures

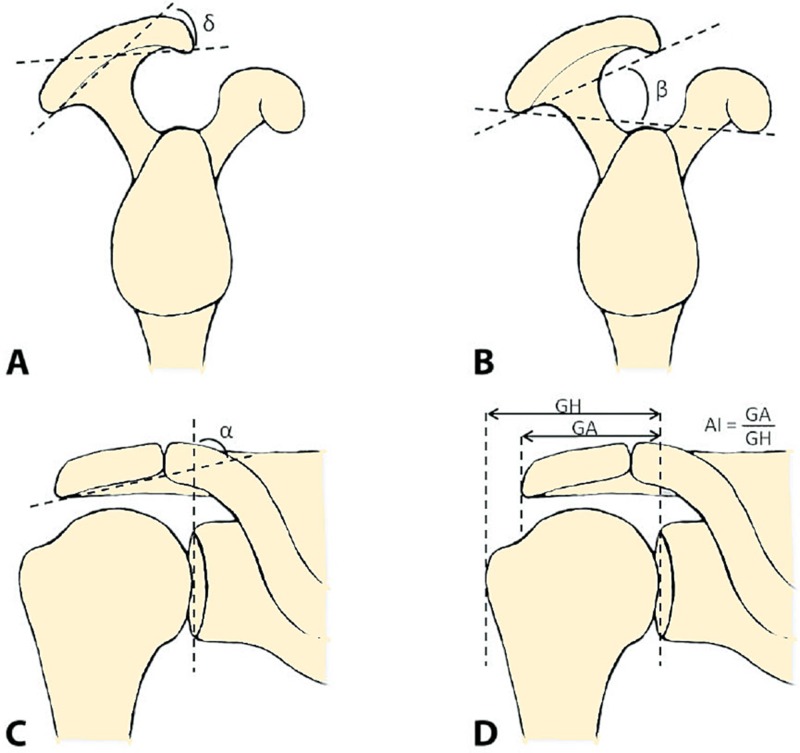

Figure 1.
Figure 1.
Overview of parameters of acromial morphology.

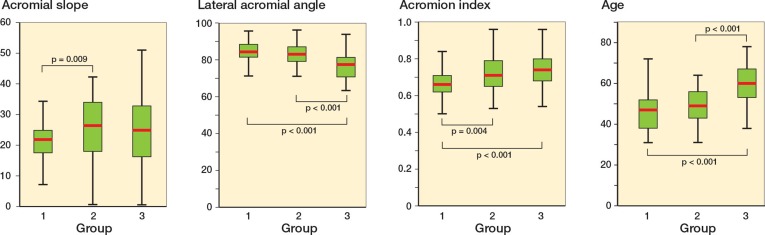

Figure 2.
Figure 2.
Box plots of significant differences in morphological parameters. Significant findings for acromial slope, lateral acromial angle, acromion index, and patient age. Group 1: controls; group 2: impingement; group 3: supraspinatus tendon tears.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Aoki M, Ishii S, Usui M. The slope of the acromion and rotator cuff impingement. Orthop Trans. 1986;10:228.
    1. Armstrong JR. Excision of the acromion in treatment of the supraspinatus syndrome; report of 95 excisions. J Bone Joint Surg (Br) 1949;31(3):436–42. - PubMed
    1. Banas MP, Miller RJ, Totterman S. Relationship between the lateral acromion angle and rotator cuff disease. J Shoulder Elbow Surg. 1995;4(6):454–61. - PubMed
    1. Bigliani LU, Morrison DS, April EW. The morphology of the acromion and its relationship to rotator cuff tears. Orthop Trans. 1986;10:228.
    1. Bigliani LU, Ticker JB, Flatow EL, Soslowsky LJ, Mow VC. The relationship of acromial architecture to rotator cuff disease. Clin Sports Med. 1991;10(4):823–38. - PubMed
