. 2013 Feb 1;69(Pt 2):o276.
doi: 10.1107/S160053681300175X. Epub 2013 Jan 23.

(E)-N'-(4-Chloro-benzyl-idene)-2-meth-oxy-benzohydrazide

M Syukri Baharudin  1 , Muhammad Taha, Nor Hadiani Ismail, Syed Adnan Ali Shah, Sammer Yousuf
Affiliations

(E)-N'-(4-Chloro-benzyl-idene)-2-meth-oxy-benzohydrazide

M Syukri Baharudin et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title hydrazone derivative, C(15)H(13)ClN(2)O(2), the dihedral angle between the benzene rings is 2.36 (2)°. An intra-molecular N-H⋯O hydrogen bond is present. In the crystal, N-H⋯O and C-H⋯O hydrogen bonds link the mol-ecules into chains running parallel to the b axis.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure of the title compound with displacement ellipsoids drawn at 30% probability level. An intramolecular hydrogen bond is shown as a dashed line.
Fig. 2.
Fig. 2.

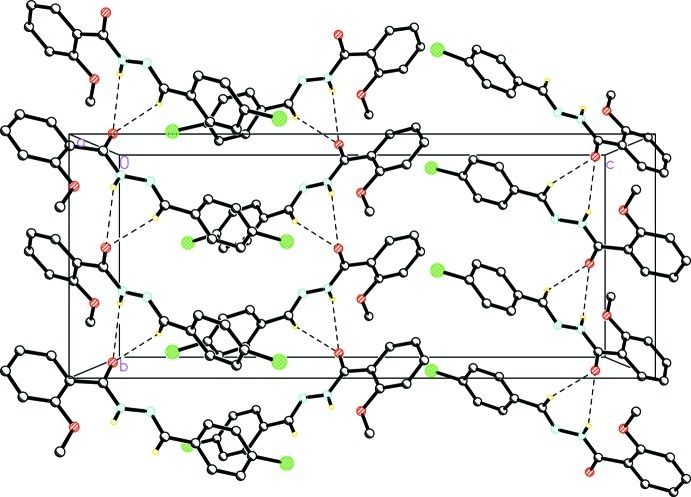

Crystal packing of the title compound viewed down the a axis. Only hydrogen atoms involved in hydrogen bonding are shown.
See this image and copyright information in PMC

References

    1. Bruker (2000). SADABS, SMART and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cao, G.-B. (2009). Acta Cryst. E65, o2650. - PMC - PubMed
    1. Glasser, A. C. & Doughty, R. M. (1962). J. Pharm. Sci. 51, 1031–1033. - PubMed
    1. Khan, K. M., Shah, Z., Ahmad, V. U., Khan, M., Taha, M., Rahim, F., Jahan, H., Perveen, S. & Choudhary, M. I. (2011). Med. Chem. 7, 572–580. - PubMed
    1. Khan, K. M., Taha, M., Naz, F., Siddiqui, S., Ali, S., Rahim, F., Perveen, S. & Choudhary, M. I. (2012). Med. Chem. 8, 705–710. - PubMed
