Meta-Analysis
. 2013 Feb 28;2013(2):CD000339.
doi: 10.1002/14651858.CD000339.pub3.

Extramedullary fixation implants and external fixators for extracapsular hip fractures in adults

Martyn J Parker  1 , Avishek Das
Affiliations
Meta-Analysis

Extramedullary fixation implants and external fixators for extracapsular hip fractures in adults

Martyn J Parker et al. Cochrane Database Syst Rev. .

Abstract

Background: Extramedullary fixation of hip fractures involves the application of a plate and screws to the lateral side of the proximal femur. In external fixators, the stabilising component is held outside the thigh by pins or screws driven into the bone. This is an update of a Cochrane review first published in 1998, and last updated in 2005.

Objectives: To assess the relative effects of different types of extramedullary fixation implant, as well as external fixators, for treating extracapsular proximal femoral (hip) fractures in adults.

Search methods: We searched the Cochrane Bone, Joint and Muscle Trauma Group Specialised Register (July 2011), the Cochrane Central Register of Controlled Trials (The Cochrane Library 2011, Issue 2), MEDLINE (1966 to June Week 4 2011), EMBASE (1988 to 2011 Week 25), various other databases, conference proceedings and reference lists.

Selection criteria: Randomised or quasi-randomised controlled trials comparing extramedullary implants or external fixators for fixing extracapsular hip fracture in adults were included.

Data collection and analysis: Two review authors independently selected trials, assessed risk of bias and extracted data. Data were pooled where appropriate.

Main results: The 18 included trials tested seven comparisons in a total of 2615 mainly female and older participants with a total of 2619 fractures. All trials had methodological flaws that may affect the validity of their results.Three trials of 355 participants comparing a fixed nail plate (Jewett or McLaughlin) with the sliding hip screw (SHS) found an increased risk of fixation failure for fixed nail plates.The two trials of 433 participants comparing the Resistance Augmented Bateaux (RAB) plate with the SHS had contrasting results, notably in terms of operative complications, fixation failure and anatomical restoration.One trial of 100 participants comparing the Pugh nail and the SHS found no significant difference between implants.Three trials of 458 participants compared the Medoff plate with the SHS. There was a trend to higher blood losses and longer operation times for the Medoff plate along with a trend to a lower risk of fixation failure with the Medoff plate for unstable trochanteric fractures.Two trials of 676 participants compared the Medoff plate with three different screw-plate systems. There were no statistically significant differences in outcome for trochanteric fractures. For subtrochanteric fractures, there was a lower fixation failure rate for the Medoff plate but no evidence for differences in longer-term outcomes.Four trials of 396 participants comparing the Gotfried percutaneous compression plate (PCCP) with a SHS found a trend to lower blood loss and transfusion requirements for the PCCP but no other confirmed differences in outcomes between implants. Three of the trials reported intra-operative problems with the PCCP, some of which precluded its use.Three trials of 200 participants comparing external fixation with a SHS found less operative trauma for the external fixation. Final outcome appeared similar.

Authors' conclusions: The markedly increased fixation failure rate of fixed nail plates compared with the SHS is a major consideration and thus the SHS appears preferable.There was insufficient evidence from other comparisons of extramedullary implants or on the use of external fixators to draw definite conclusions.

PubMed Disclaimer

Conflict of interest statement

None known.

Figures

1
1

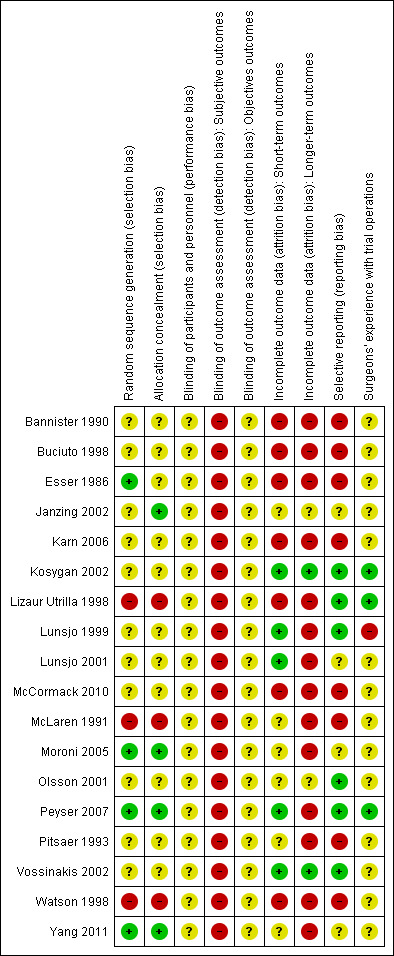

Risk of bias summary: review authors' judgements about each risk of bias item for each included study.
2
2

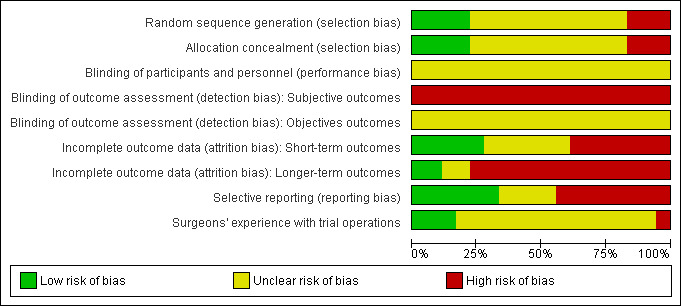

Risk of bias summary: judgements about each risk of bias item for each included study.
1.1
1.1. Analysis

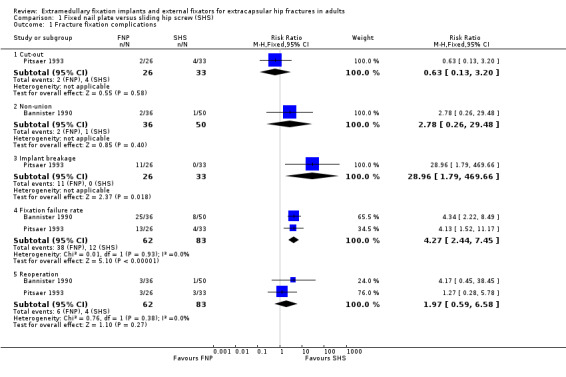

Comparison 1 Fixed nail plate versus sliding hip screw (SHS), Outcome 1 Fracture fixation complications.
1.2
1.2. Analysis

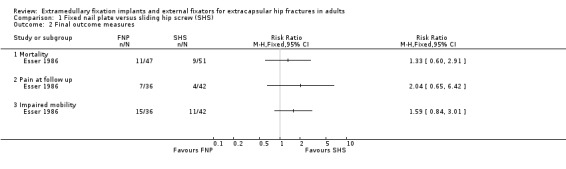

Comparison 1 Fixed nail plate versus sliding hip screw (SHS), Outcome 2 Final outcome measures.
2.1
2.1. Analysis

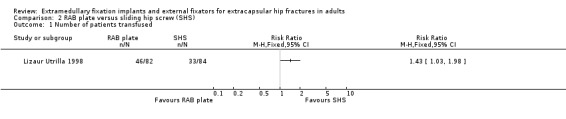

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 1 Number of patients transfused.
2.2
2.2. Analysis

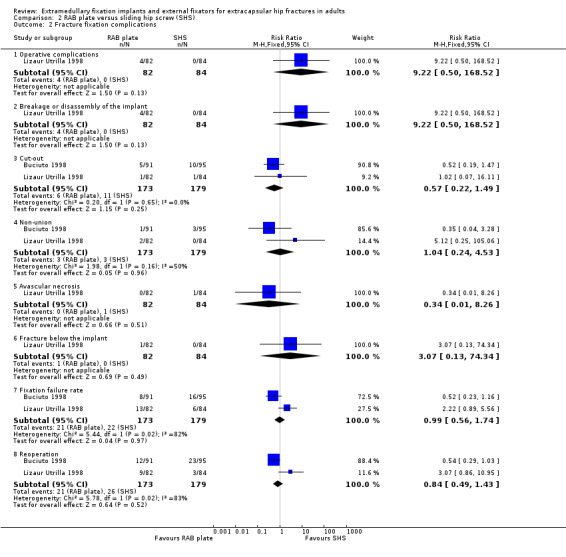

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 2 Fracture fixation complications.
2.3
2.3. Analysis

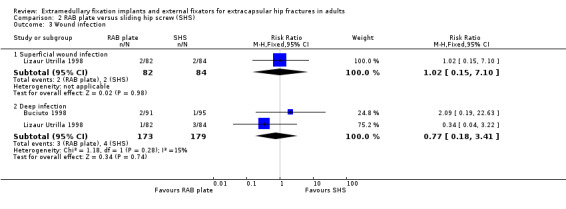

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 3 Wound infection.
2.4
2.4. Analysis

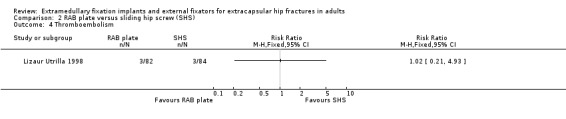

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 4 Thromboembolism.
2.5
2.5. Analysis

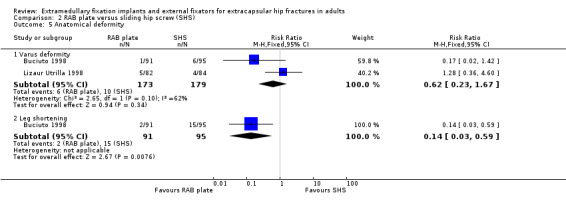

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 5 Anatomical deformity.
2.6
2.6. Analysis

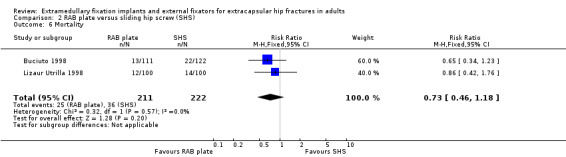

Comparison 2 RAB plate versus sliding hip screw (SHS), Outcome 6 Mortality.
3.1
3.1. Analysis

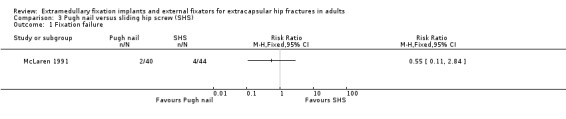

Comparison 3 Pugh nail versus sliding hip screw (SHS), Outcome 1 Fixation failure.
3.2
3.2. Analysis
Comparison 3 Pugh nail versus sliding hip screw (SHS), Outcome 2 Deep infection.
3.3
3.3. Analysis
Comparison 3 Pugh nail versus sliding hip screw (SHS), Outcome 3 Deep vein thrombosis.
3.4
3.4. Analysis

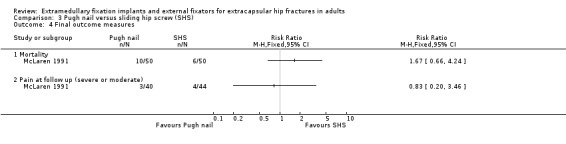

Comparison 3 Pugh nail versus sliding hip screw (SHS), Outcome 4 Final outcome measures.
4.1
4.1. Analysis
Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 1 Cut‐out.
4.2
4.2. Analysis

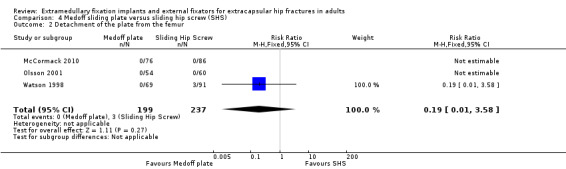

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 2 Detachment of the plate from the femur.
4.3
4.3. Analysis

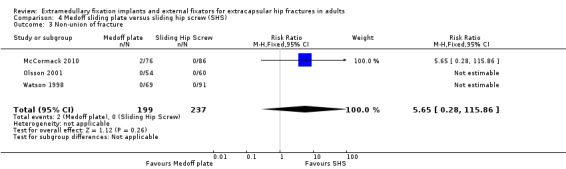

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 3 Non‐union of fracture.
4.4
4.4. Analysis

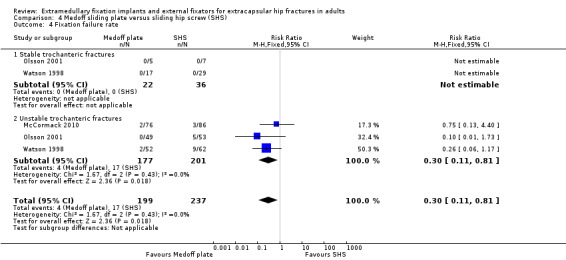

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 4 Fixation failure rate.
4.5
4.5. Analysis

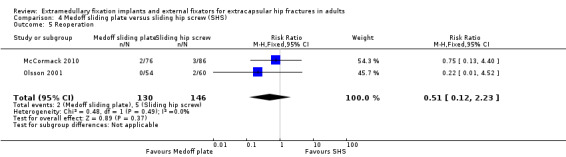

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 5 Reoperation.
4.6
4.6. Analysis

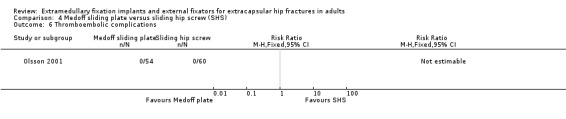

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 6 Thromboembolic complications.
4.7
4.7. Analysis

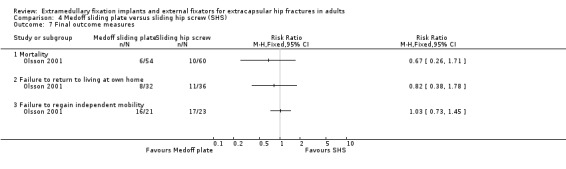

Comparison 4 Medoff sliding plate versus sliding hip screw (SHS), Outcome 7 Final outcome measures.
5.1
5.1. Analysis

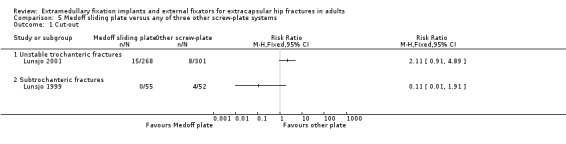

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 1 Cut‐out.
5.2
5.2. Analysis

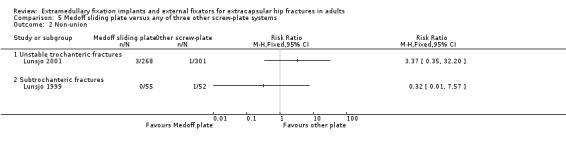

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 2 Non‐union.
5.3
5.3. Analysis

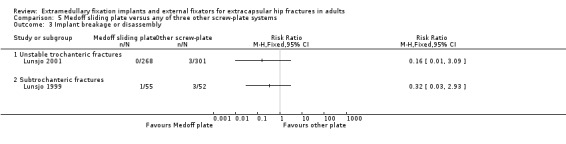

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 3 Implant breakage or disassembly.
5.4
5.4. Analysis
Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 4 Fixation failure.
5.5
5.5. Analysis

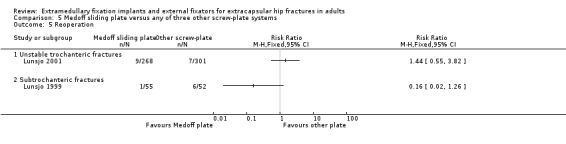

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 5 Reoperation.
5.6
5.6. Analysis
Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 6 Superficial wound infection.
5.7
5.7. Analysis
Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 7 Deep wound infection.
5.8
5.8. Analysis

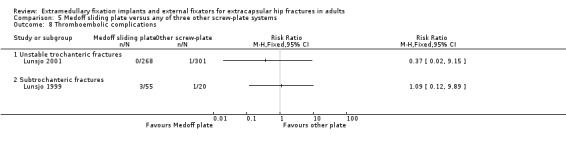

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 8 Thromboembolic complications.
5.9
5.9. Analysis

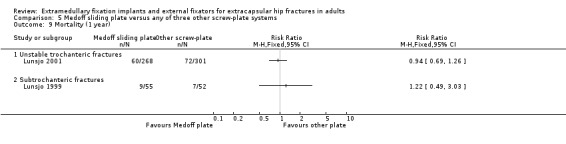

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 9 Mortality (1 year).
5.10
5.10. Analysis

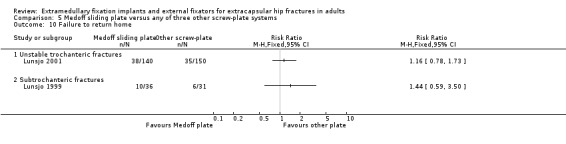

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 10 Failure to return home.
5.11
5.11. Analysis

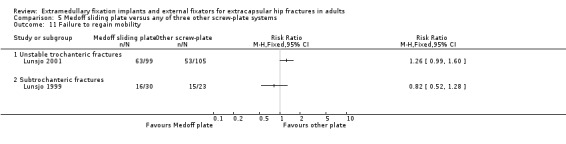

Comparison 5 Medoff sliding plate versus any of three other screw‐plate systems, Outcome 11 Failure to regain mobility.
6.1
6.1. Analysis

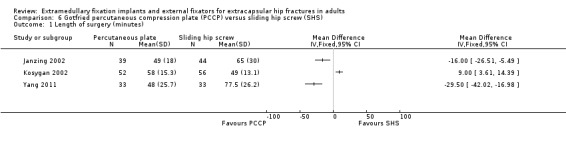

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 1 Length of surgery (minutes).
6.2
6.2. Analysis

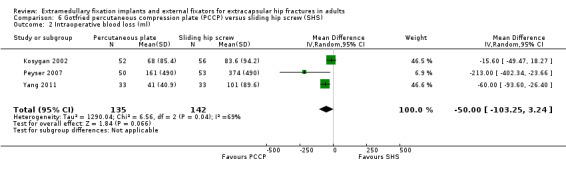

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 2 Intraoperative blood loss (ml).
6.3
6.3. Analysis

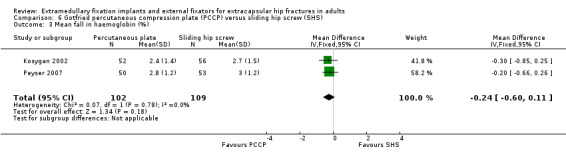

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 3 Mean fall in haemoglobin (%).
6.4
6.4. Analysis

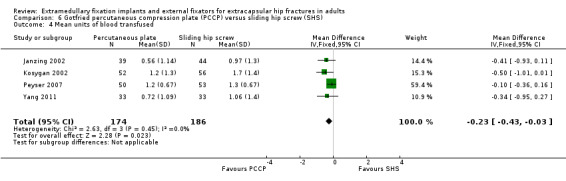

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 4 Mean units of blood transfused.
6.5
6.5. Analysis
Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 5 Number of patients transfused.
6.6
6.6. Analysis
Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 6 X‐ray screening time (seconds) (approximate SDs).
6.7
6.7. Analysis

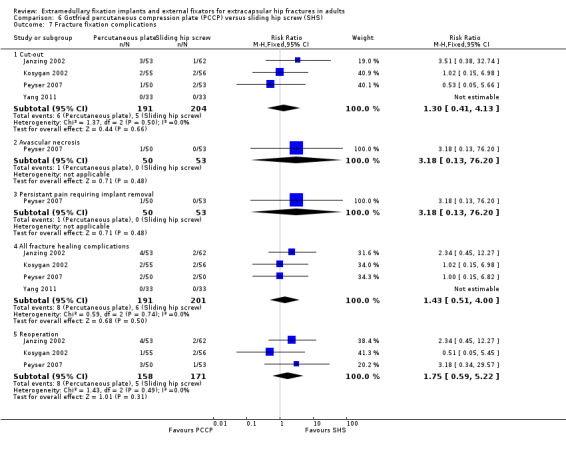

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 7 Fracture fixation complications.
6.8
6.8. Analysis

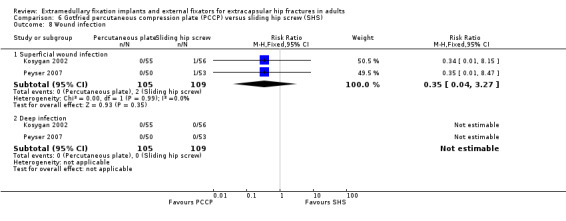

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 8 Wound infection.
6.9
6.9. Analysis

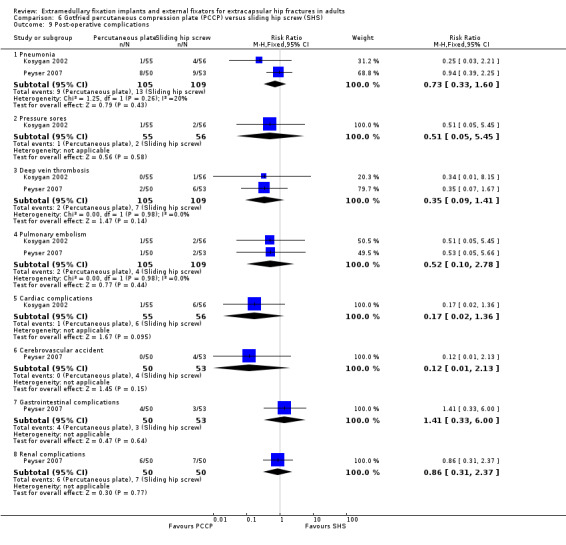

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 9 Post‐operative complications.
6.10
6.10. Analysis

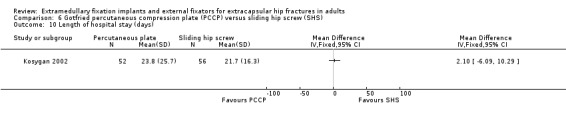

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 10 Length of hospital stay (days).
6.11
6.11. Analysis

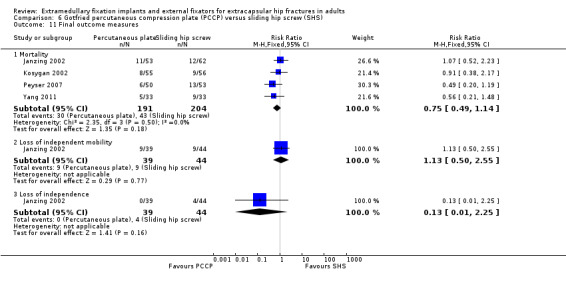

Comparison 6 Gotfried percutaneous compression plate (PCCP) versus sliding hip screw (SHS), Outcome 11 Final outcome measures.
7.1
7.1. Analysis

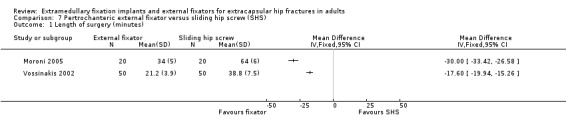

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 1 Length of surgery (minutes).
7.2
7.2. Analysis

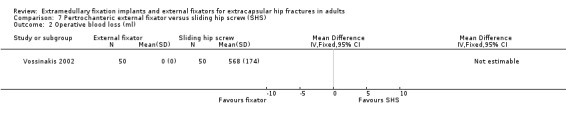

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 2 Operative blood loss (ml).
7.3
7.3. Analysis

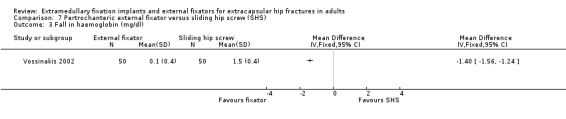

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 3 Fall in haemoglobin (mg/dl).
7.4
7.4. Analysis

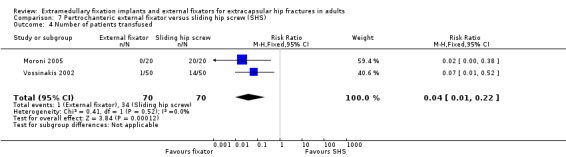

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 4 Number of patients transfused.
7.5
7.5. Analysis

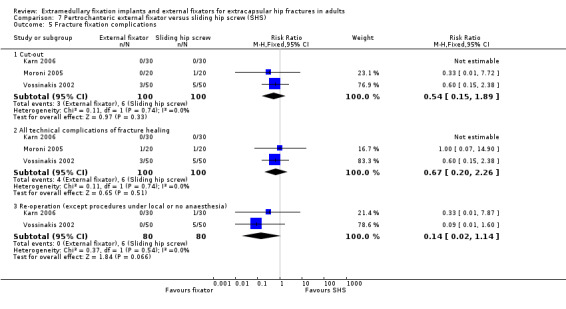

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 5 Fracture fixation complications.
7.6
7.6. Analysis

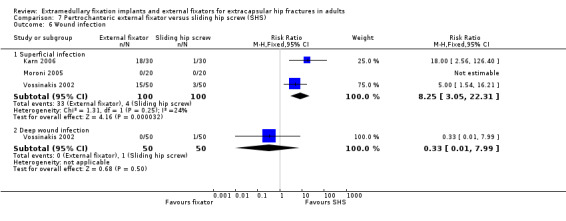

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 6 Wound infection.
7.7
7.7. Analysis

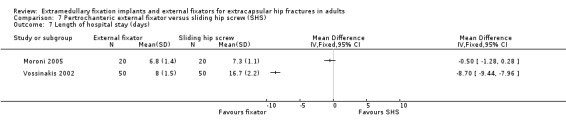

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 7 Length of hospital stay (days).
7.8
7.8. Analysis

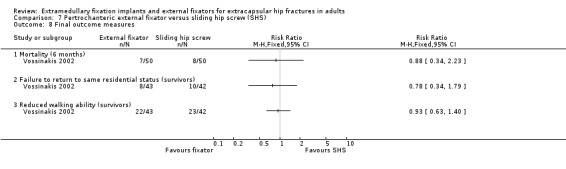

Comparison 7 Pertrochanteric external fixator versus sliding hip screw (SHS), Outcome 8 Final outcome measures.
See this image and copyright information in PMC

Update of

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

References to studies included in this review

Bannister 1990 {published data only}
    1. Bannister GC, Gibson AGF. Jewett nail‐plate or AO dynamic hip screw for trochanteric fractures?: a randomised prospective controlled trial [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 1983;65(2):218.
    1. Bannister GC, Gibson AGF, Ackroyd CE, Newman JH. The fixation and prognosis of trochanteric fractures: a randomised prospective controlled trial. Clinical Orthopaedics and Related Research 1990;(254):242‐6. [MEDLINE: ] - PubMed
Buciuto 1998 {published data only}
    1. Buciuto R, Hammer R, Herder A. Spontaneous subcapital femoral neck fracture after healed trochanteric fracture. Clinical Orthopaedics and Related Research 1997;(342):156‐63. [MEDLINE: ] - PubMed
    1. Buciuto R, Uhlin B, Hammerby S, Hammer R. RAB‐plate vs Richards CHS plate for unstable trochanteric hip fractures: A randomized study of 233 patients with 1‐year follow‐up. Acta Orthopaedica Scandinavica 1998;69(1):25‐8. [MEDLINE: ] - PubMed
Esser 1986 {published data only}
    1. Esser MP, Kassab JY, Jones DH. Trochanteric fractures of the femur. A randomised prospective trial comparing the Jewett nail‐plate with the Dynamic hip screw. Journal of Bone and Joint Surgery ‐ British Volume 1986;68(4):557‐60. [MEDLINE: ] - PubMed
    1. Jones DHA, Kassab J, Esser M. A prospective trial comparing the Jewett nail‐plate with the Dynamic Hip Screw [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 1986;68(1):157. - PubMed
Janzing 2002 {published data only}
    1. Brandt SE, Lefever S, Janzing HMJ, Broos PLO, Pilot P, Houben B. Percutaneous compression plating (PCCP) versus dynamic hip screw (DHS) for pertrochanteric hip fractures ‐ preliminary results [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2001;83 Suppl 2:193‐4.
    1. Brandt SE, Lefever S, Janzing HMJ, Broos PLO, Pilot P, Houben BJJ. Percutaneous compression plating (PCCP) versus the dynamic hip screw for pertrochanteric hip fractures: preliminary results. Injury 2002;33(5):413‐8. - PubMed
    1. Janzing HMJ, Houben B, Broos P. The Gotfried percutaneous compression plate. Surgical technique and prospective randomized comparison with the dynamic screw [abstract]. Hefte zur der Unfallchirurg 2000;282:45.
    1. Janzing HMJ, Houben BJJ, Brandt SE, Chhoeurn V, Lefever S, Broos P, et al. The Gotfried percutaneous compression plate versus the dynamic hip screw in the treatment of pertrochanteric hip fractures: minimal invasive treatment reduces operative time and post‐operative pain. Journal of Trauma 2002;52(2):293‐8. - PubMed
Karn 2006 {published data only}
    1. Karn NK, Singh GK, Kumar P, Shrestha BP, Singh MP, Gowda MJ. Comparison between external fixation and sliding hip screw in the management of trochanteric fracture of the femur in Nepal. Journal of Bone and Joint Surgery ‐ British Volume 2006;88(10):1347‐50. - PubMed
Kosygan 2002 {published data only}
    1. Gotfried Y. The Gotfried percutaneous compression plate compared with the conventional classic hip screw for the fixation of intertrochanteric fractures of the hip [letter]. Journal of Bone and Joint Surgery ‐ British Volume 2003;85:148‐9. - PubMed
    1. Kosygan KP, Mohan R, Newman RJ. The Gotfried percutaneous compression plate compared with the conventional classic hip screw for the fixation of intertrochanteric fractures of the hip. Journal of Bone and Joint Surgery ‐ British Volume 2002;84(1):19‐22. - PubMed
    1. Kosygan KP, Newman RJ. A trial of the percutaneous compression plate and the classic hip screw for the fixation of intertrochanteric fractures of the hip [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2003;85 Suppl 1:38. - PubMed
Lizaur Utrilla 1998 {published data only}
    1. Lizaur Utrilla A, Cebrian Gomez R, Sebastia Forcada E. Compression screw plate or monoblock nail‐plate in trochanteric fractures of the femur in the elderly [Tornillo‐placa a compresion o clavo‐placa monobloque en las fracturas trocantereas del femur del anciano]. Revista de Ortopedia y Traumatologia 1998;42(5):368‐73.
Lunsjo 1999 {published and unpublished data}
    1. Lunsjo K. Dynamic fixation of unstable trochanteric hip fractures. A clinical and radiographic evaluation of the Medoff sliding plate [thesis]. Helsingborg: Lund University, 1998.
    1. Lunsjo K. Dynamic fixation of unstable trochanteric hip fractures ‐ a clinical and radiographic evaluation of the Medoff sliding plate [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1998;282:68.
    1. Lunsjo K, Ceder L, Hamberg P, Tidermark J, Larsson B‐E, Allvin I, et al. The Medoff sliding plate versus standard dynamic screw systems in unstable inter‐trochanteric and subtrochanteric hip fractures ‐ a preliminary report of a prospective randomised multicenter trial [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1997;274:97.
    1. Lunsjo K, Ceder L, Skytting B, Larsson B‐E, Allvin B‐E. Extramedullary fixation of 107 subtrochanteric fractures. A randomized multicentre trial of the Medoff sliding plate vs three different screw‐plate systems [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 1999;81 Suppl 2:164.
    1. Lunsjo K, Ceder L, Skytting B, Tidermark J, Larsson B‐E, Lindahl L‐E, et al. A randomized multicentre trial of the Medoff sliding plate versus standard screw‐plate systems in subtrochanteric fractures [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1999;284:70. - PubMed
Lunsjo 2001 {published data only}
    1. Lunsjo K, Ceder L, Hamberg P, Tidermark J, Larsson B‐E, Allvin I, et al. The Medoff sliding plate versus standard dynamic screw systems in unstable inter‐trochanteric and subtrochanteric hip fractures ‐ a preliminary report of a prospective randomised multicenter trial [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1997;274:97.
    1. Lunsjo K, Ceder L, Thorngren KG, Skytting B, Tidermark J, Berntson, et al. Extramedullary fixation of 569 unstable intertrochanteric fractures: a randomized multicenter trial of the Medoff sliding plate versus three other screw‐plate systems. Acta Orthopaedica Scandinavica 2001;72(2):133‐40. - PubMed
McCormack 2010 {published data only}
    1. McCormack RG, Panagiotopoulos K, Buckley RE, Penner MJ, Perey B, Pate GC, et al. A multicenter PRCT of the DHS vs. Medoff for unstable intertrochanteric hip fractures [abstract]. American Academy of Orthopaedic Surgeons 75th Annual Meeting;2008 Mar 5‐9; San Francisco, CA. www3.aaos.org/education/anmeet/anmt2008/podium/podium.cfm?Pevent=387 (accessed 25/02/10). 2008.
    1. McCormack RG, Zomar ML, Panagiotopoulos KP, Buckley RE, Penner MJ, Perey BH, et al. A multicentre, prospective randomized comparison of the sliding hip screw versus the Medoff sliding screw and side plate for unstable intertrochanteric hip fractures. Journal of Bone and Joint Surgery ‐ British Volume 2010;92(Supp I):7.
McLaren 1991 {published data only}
    1. McLaren CAN, Buckley JR, Rowley DI. Intertrochanteric fractures of the femur: a randomised prospective trial comparing the Pugh nail with the dynamic hip screw. Injury 1991;22(3):193‐6. [MEDLINE: ] - PubMed
Moroni 2005 {published data only}
    1. Moroni A, Faldini C, Pegreffi F, Giannini S. Dynamic hip screw vs. external fixation for osteoporotic trochanteric fracture treatment [abstract]. 71st Annual Meeting of the American Academy of Orthopaedic Surgeons; 2004 March 10‐14; San Francisco,CA. Paper 167. http://www.aaos.org/wordhtml/anmt2004/sciprog/167.htm (accessed 24 February 2004).
    1. Moroni A, Faldini C, Pegreffi F, Giannini S. External fixation for osteoporotic trochanteric fracture patients: a minimally invasive treatment option [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2004;86 Suppl 3:226.
    1. Moroni A, Faldini C, Pegreffi F, Hoang‐Kim A, Vannini F, Giannini S. Dynamic hip screw compared with external fixation for treatment of osteoporotic pertrochanteric fractures: A prospective, randomized study. Journal of Bone and Joint Surgery ‐ American Volume 2005;87(4):753‐9. - PubMed
Olsson 2001 {published data only}
    1. Olsson O. Alternative techniques in trochanteric hip fracture surgery. Clinical and biomechanical studies on the Medoff sliding plate and the Twin hook. Acta Orthopaedica Scandinavica. Supplementum 2000;295:1‐31. - PubMed
    1. Olsson O, Ceder L, Hauggaard A. Femoral shortening in intertrochanteric fractures: a comparison between the Medoff sliding plate and the compression hip screw. Journal of Bone and Joint Surgery ‐ British Volume 2001;83(4):572‐8. - PubMed
    1. Olsson O, Ceder L, Hauggaard A, Lunsjo K. Femoral shortening to intertrochanteric fractures ‐ A prospective study of 114 patients randomised to fixation with the Medoff sliding plate or the compression hip screw [abstract]. 68th Annual Meeting of the American Academy of Orthopaedic Surgeons; 2001 Feb 28 ‐ Mar 4: San Francisco (CA). AAOS On‐Line Service, 2001:http://www.aaos.org/wordhtml/anmt2001/poster/pe049.htm (accessed 20 June 2001).
Peyser 2007 {published data only}
    1. Peyser A, Weil Y, Brocke L, Sela Y, Mosheiff R, Mattan Y, et al. A prospective, randomised study comparing the percutaneous compression pate and the compression hip screw for the treatment of intertrochanteric fractures of the hip. Journal of Bone and Joint Surgery ‐ British Volume 2007;89(9):1210‐7. - PubMed
    1. Peyser A, Weil Y, Brocke L, Sela Y, Mosheiff R, Mattan Y, et al. A prospective, randomised study comparing the percutaneous compression pate and the compression hip screw for the treatment of intertrochanteric fractures of the hip. Correction to original article. Journal of Bone and Joint Surgery ‐ British Volume 2008;90(11):1533. - PubMed
Pitsaer 1993 {published data only}
    1. Pitsaer E, Samuel AW. Functional outcomes after intertrochanteric fractures of the femur: does the implant matter? A prospective study of 100 consecutive cases. Injury 1993;24(1):35‐6. [MEDLINE: ] - PubMed
Vossinakis 2002 {published data only}
    1. Vossinakis IC, Badras LS. External fixation for pertrochanteric fractures [letter]. Journal of Bone and Joint Surgery ‐ American Volume 2005;85(11):2252‐3. - PubMed
    1. Vossinakis IC, Badras LS. The external fixator compared with the sliding hip screw for pertrochanteric fractures of the femur. Journal of Bone and Joint Surgery ‐ British Volume 2002;84(1):23‐9. - PubMed
    1. Vossinakis IC, Skretas E, Bitounis E, Badras LS. Comparison between external fixation and the sliding hip screw in pertrochanteric fractures ‐ a prospective randomised study [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2001;83 Suppl 2:168.
Watson 1998 {published data only}
    1. Watson JT, Moed BR, Cramer KE, Karges DE. Comparison of the compression hip screw with the Medoff sliding plate for intertrochanteric fractures. Clinical Orthopaedics and Related Research 1998;(348):79‐86. [MEDLINE: ] - PubMed
    1. Watson JT, Moed BR, Karges DE, Cramer KE. DHS versus Medoff plate for the treatment of unstable intertrochanteric fractures: a randomized prospective study [abstract]. Annual Meeting of the Orthopaedic Trauma Association; Louisville, Kentucky; Oct 17‐19 1997. http://www.hwbf.org/ota/am/ota97/OTA97906.htm (accessed 23 February 2001).
    1. Watson JT, Moed BR, Karges DE, Cramer KE. DHS versus Medoff plate for the treatment of unstable intertrochanteric fractures: a randomized prospective study [abstract]. Orthopaedic Transactions 1997;21(4):1355.
Yang 2011 {published data only}
    1. Qureshi S, Trokhan S, Yang EC. Prospective randomized study comparing SHS and PCCP for treatment of intertrochanteric hip fractures. 74th Annual Meeting of the American Academy of Orthopaedic Surgeons; 2007 Feb 14‐18; San Diego, CA. www3.aaos.org/education/anmeet/anmt2007/education.cfm (accessed 25/09/08). 2007.
    1. Yang E, Qureshi S, Trokhan S, Joseph D. Gotfried percutaneous compression plating compared with sliding hip screw fixation of intertrochanteric hip fractures: a prospective randomized study. Journal of Bone & Joint Surgery ‐ American Volume 2011;93(10):942‐7. - PubMed

References to studies excluded from this review

Enskog 1999 {published data only}
    1. Enskog LBD. A new double sliding screw and plate system (LE‐plate) versus standard sliding screw and plate system (DHS) in the treatment of trochanteric hip fractures ‐ minimum 12 months follow‐up of 31 patients in a randomized prospective study ‐ preliminary report [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1999;287:58.
Heyse‐Moore 1983 {published data only (unpublished sought but not used)}
    1. Heyse‐Moore GH, MacEachern AG, Jameson Evans DC. Treatment of intertrochanteric fractures of the femur: a comparison of the Richards screw‐plate with the Jewett nail‐plate. Journal of Bone and Joint Surgery ‐ British Volume 1983;65(3):262‐7. - PubMed
Kumar 2006 {published data only}
    1. Kumar S, Sen RK, Nagi ON. Hip abductor strength in unstable trochanteric fractures stabilised with DHS‐TSP. European Journal of Trauma 2006;32(Supplement 1):24.
Lahav 2007 {published data only}
    1. Lahav M, Laufer Y, Gotfried Y. Functional recovery and pain in hip fractures post DHS and PCCP [abstract]. 74th Annual Meeting of the American Academy of Orthopaedic Surgeons; 2007 Feb 14‐18;San Diego, CA. 2007.
Laufer 2005 {published data only}
    1. Laufer Y, Lahav M, Lenger R, Sprecher E. Functional recovery following pertrochanteric hip fractures fixated with the dynamic hip screw vs. the percutaneous compression plate. Scientific World Journal 2005;5:221‐9. - PMC - PubMed
Li 2010 {published data only}
    1. Li J, Zhang ZS, Zhao HP, Zhang P, Pan YQ, Wu YF. Anatomical plate versus dynamic hip screw internal fixation for the treatment of femoral intertrochanteric fractures. Journal of Clinical Rehabilitative Tissue Engineering Research 2010;14(35):6627‐31.
Moroni 2004 {published data only}
    1. Moroni A, Faldini C, Pegreffi F, Giannini S. HA‐coated screws decrease the incidence of fixation failure in osteoporotic trochanteric fractures. Clinical Orthopaedics and Related Research 2004;(425):87‐92. - PubMed
Olsson 2000 {published data only}
    1. Olsson O, Ceder L, Lunsjo K, Hauggaard A. Extracapsular hip fractures: fixation with a twin hook or a lag screw?. International Orthopaedics 2000;24(5):249‐55. - PMC - PubMed
Ouyang 2010 {published data only}
    1. Ouyang ZH, Huang JR, Xiang XJ, Bin H. Effect and complications of metallic implants for internal fixation of upper femoral shaft fracture: Randomized comparison among three groups. Journal of Clinical Rehabilitative Tissue Engineering Research 2010;14(30):5674‐7.
Peyser 2005 {published data only}
    1. Peyser A, Weil Y, Brocke L, Manor O, Mosheiff R, Liebergall M. Percutaneous compression plating versus compression hip screw fixation for the treatment of intertrochanteric hip fractures. Injury 2005;36(11):1343‐49. - PubMed
Raunest 1995 {published data only}
    1. Raunest J, Derra E. Dynamic hip screws in osteosynthesis of petrochanteric femoral fractures ‐ is an extended indication justified in the elderly? [Die dynamische Huftschraube in der osteosynthese pertrochanterer femurfrakturen ‐ Ist eine erweiterte indikation im hohen alter vertrebar?]. Langenbecks Archiv Fur Chirurgie 1995;Suppl II Kongressbericht:1144‐7.
Romero 2008 {published data only}
    1. Romero JM, Diaz RA, Oropeza YM. Dynamic hip screw vs. percutaneous compression plate for trochanteric fractures [Spanish] [Fracturas pertrocantericas en adultos mayores tratados mediante el tornillo dinamico de cadera vs placa de compresion percutanea]. Acta Ortopedica Mexicana 2008;22(2):115‐9. - PubMed
Weisbrot 2005 {published data only}
    1. Weisbrot M, Garti A, Pirotzki A, Yassin M, Hendel D, Robinson D. Percutaneous compression plate vs. DHS in trochanteric fractures. A randomized prospective study [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2005;87(Suppl 3):379.
Zhen 2010 {published data only}
    1. Zhen P, Liu XY, Gao MX, Tian Q. Application of the anatomic plate and trapezoid plate in comminuted intertrochanteric fracture combined with trochanteric coronal position fracture: a controlled clinical trial [Chinese]. China Journal of Orthopaedics and Traumatology 2010;23(5):332‐5. - PubMed

References to studies awaiting assessment

ChiCTR 2011 {unpublished data only}
    1. Hu N, Huang W. Minimally invasive percutaneous compression plating versus dynamic hip screw for intertrochanteric fractures. Chinese Clinical Trial Registry http://www.chictr.org/en/proj/show.aspx?proj=1985 (accessed January 4 2013). - PubMed

Additional references

Boutron 2008
    1. Boutron I, Moher D, Altman DG, Schulz KF, Ravaud P, CONSORT Group. Extending the CONSORT statement to randomized trials of nonpharmacologic treatment: explanation and elaboration. Annals of Internal Medicine 2008;148(4):295‐309. - PubMed
Brandt 2001
    1. Brandt SE, Lefever S, Janzing HMJ, Broos PLO, Pilot P, Houben B. Percutaneous compression plating (PCCP) versus dynamic hip screw (DHS) for pertrochanteric hip fractures ‐ preliminary results [abstract]. Journal of Bone and Joint Surgery ‐ British Volume 2001;83 Suppl 2:193‐4.
Buciuto 1997
    1. Buciuto R, Hammer R, Herder A. Spontaneous subcapital femoral neck fracture after healed trochanteric fracture. Clinical Orthopaedics and Related Research 1997;(342):156‐63. [MEDLINE: ] - PubMed
Chinoy 1999
    1. Chinoy MA, Parker MJ. Fixed nail plates versus sliding hip systems for the treatment of trochanteric femoral fractures: a meta analysis of 14 comparative studies. Injury 1999;30(3):157‐63. - PubMed
Gotfried 2000
    1. Gotfried Y. Percutaneous compression plating of intertrochanteric hip fractures. Journal of Orthopaedic Trauma 2000;14(7):490‐5. - PubMed
Gotfried 2003
    1. Gotfried Y. The Gotfried percutaneous compression plate compared with the conventional classic hip screw for the fixation of intertrochanteric fractures of the hip [letter]. Journal of Bone and Joint Surgery ‐ British Volume 2003;85:148‐9. - PubMed
Gulberg 1997
    1. Gullberg B, Johnell O, Kanis JA. World‐wide projections for hip fracture. Osteoporosis International 1997;7(5):407‐13. - PubMed
Higgins 2003
    1. Higgins JPT, Thompson SG, Deeks JJ, Altman DG. Measuring inconsistency in meta‐analyses. BMJ 2003;327:557‐60. - PMC - PubMed
Higgins 2011
    1. Higgins JPT, Green S (editors). Cochrane Handbook for Systematic Reviews of Interventions Version 5.1.0 [updated March 2011]. The Cochrane Collaboration, 2011. Available from www.cochrane‐handbook.org.
Lefebvre 2011
    1. Lefebvre C, Manheimer E, Glanville J. Chapter 6.4.11: Search filters. In: Higgins JPT, Green S (editors). Cochrane Handbook for Systematic Reviews of Interventions Version 5.1.0 (updated March 2011). The Cochrane Collaboration, 2011. Available from www.cochrane‐handbook.org.
Lunsjo 1996
    1. Lunsjo K, Ceder L, Stigsson L, Hauggaard A. Two‐way compression along the shaft and the neck of the femur with the Medoff sliding plate: one‐year follow‐up of 108 intertrochanteric fractures. Journal of Bone and Joint Surgery ‐ British Volume 1996;78(3):387‐409. - PubMed
Lunsjo 1997
    1. Lunsjo K, Ceder L, Hamberg P, Tidermark J, Larsson B‐E, Allvin I, et al. The Medoff sliding plate versus standard dynamic screw systems in unstable inter‐trochanteric and subtrochanteric hip fractures ‐ a preliminary report of a prospective randomised multicenter trial [abstract]. Acta Orthopaedica Scandinavica. Supplementum 1997;274:97.
Medoff 1991
    1. Medoff RJ, Maes K. A new device for the fixation of unstable pertrochanteric fractures of the hip. Journal of Bone and Joint Surgery ‐ American Volume 1991;73(8):1192‐9. - PubMed
Olsson 1997
    1. Olsson O, Ceder L, Lunsjo K, Hauggaard A. Biaxial dynamization in unstable intertrochanteric fractures: good experience with a simplified Medoff sliding plate in 94 patients. Acta Orthopaedica Scandinavica 1997;68(4):327‐31. - PubMed
Parker 2002
    1. Parker MJ. Trochanteric and subtrochanteric fractures. In: Bulstrode C, Buckwalter J, Carr A, Marsh L, Fairbank J, Wilson‐MacDonald J, et al. editor(s). Oxford textbook of orthopaedics and trauma. 1st Edition. Oxford: Oxford University Press, 2002:2228‐39.
Parker 2010
    1. Parker MJ, Handoll HHG. Gamma and other cephalocondylic intramedullary nails versus extramedullary implants for extracapsular hip fractures in adults. Cochrane Database of Systematic Reviews 2010, Issue 9. [DOI: 10.1002/14651858.CD000093.pub5] - DOI - PubMed
Pugh 1955
    1. Pugh WL. A self‐adjusting nail‐plate for fractures about the hip joint. Journal of Bone and Joint Surgery ‐ American Volume 1955;37(5):1085‐93. - PubMed
Zuckerman 2000
    1. Zuckerman JD, Koval KJ, Aharonoff GB, Hiebert R, Skovron ML. A functional recovery score for elderly hip fracture patients: I. Development. Journal of Orthopaedic Trauma 2000;14(1):20‐5. - PubMed

References to other published versions of this review

Parker 2006
    1. Parker MJ, Handoll HHG. Extramedullary fixation implants and external fixators for extracapsular hip fractures in adults. Cochrane Database of Systematic Reviews 2006, Issue 1. [DOI: 10.1002/14651858.CD000339.pub2] - DOI - PubMed

Publication types

LinkOut - more resources
