Commissioning and implementation of an implantable dosimeter for radiation therapy

Abstract

In this article we describe commissioning and implementation procedures for the Dose Verification System (DVS) with permanently implanted in vivo wireless, telemetric radiation dosimeters for absolute dose measurements. The dosimeter uses a semiconductor device called a metal-oxide semiconductor field-effect transistor (MOSFET) to measure radiation dose. A MOSFET is a transistor that is generally used for amplifying or switching electronic signals. The implantable dosimeter was implemented with the goal of verifying the dose delivered to radiation therapy patients. For the purpose of acceptance testing, commissioning, and clinical implementation and to evaluate characteristics of the dosimeter, the following tests were performed: 1) temperature dependence, 2) reproducibility,3) field size dependence, 4) postirradiation signal drift, 5) dependence on average dose rate, 6) linearity test, 7) angular dependence (different gantry angle position), 8) angular dependence (different DVS angle position), 9) dose rate dependence,10) irradiation depth dependence, 11) effect of cone-beam exposure to the dosimeter, and 12) multiple reading effect. The dosimeter is not currently calibrated for use in the kV range; nonetheless, the effect of the cone-beam procedure on the MOSFET dosimeter was investigated. Phantom studies were performed in both air and water using an Elekta Synergy S Beam-Modulator linear accelerator. Commissioning and clinical implementation for prostate cancer patients receiving external-beam radiation therapy were performed in compliance with the general recommendations given for in vivo dosimetry devices. The reproducibility test in water at human body temperature (37°C) showed a 1.4% absolute difference, with a standard deviation of 5.72 cGy (i.e., SD = 2.9%). The constancy test shows that the average readings at room temperature were 3% lower compared to the readings at human body temperature, with a SD = 2%. Measurements were not dependent upon field size. Due to postirradiation signal drift, the following corrections are suggested: -2.8%, -2%, 0.5%, and 2.5% for the readings taken after 0.5, 1, 5, or 10 min, respectively. Different gantry angles did not influence the readings. The maximum error was less than 1% with a maximum SD = 3.61 cGy (1.8%) for the gantry angle of 45°. However, readings are dependent on the dosimeter orientation. The average dose reading was 7.89 cGy (SD = 1.46 cGy) when CBCT imaging was used for the pelvis protocol, and when postirradiation measurement was taken at 2.5 min (expected 2-3 cGy). The clinical implementation of the implantable MOSFET dosimeters for prostate cancer radiation therapy is described. Measurements performed for commissioning show that the dosimeter, if used within specifications, provides sufficient accuracy for its intended use in clinical procedures. The postradiation signal drift, temperature dependence, variation of reproducibility, and rotational isotropy could be encountered if the dosimeter is used outside the manufacturer's specifications. The dosimeter can be used as a tool for quantifying dose at depth, as well as to evaluate adherence between planned doses and the delivered doses. Currently, the system is clinically implemented with ± 7% tolerance.

Figure 1

Implantable dosimeter: design and parts. Image supplied by Sicel Technologies, Inc. (Cary, NC).

Figure 2

Dose calculation to a measuring point using solid water phantom; red marks the DVS.

Figure 3

Experimental setup: solid water phantom and box with the dosimeter inside.

Figure 4

Dose calculation and distribution for the dosimeter inside the solid water phantom when a gantry angle was 45°; isodose line of 200 cGy cuts the dosimeter (red) in axial view.

Figure 5

Dosimeter readings for test performed in water at the human body temperature for the nominal irradiation of 200 cGy.

Figure 6

The reproducibility test: (a) the individual readings have relatively wide range; (b) absolute values are still within specifications

Figure 7

Postirradiation readings depend on time when the readings were taken. The triangular symbols denote the relative errors.

Figure 8

Linearity test for the implantable dosimeter: $\text{blue}=\text{line}\hspace{0.17em}\text{connect}\hspace{0.17em}\text{measured}\hspace{0.17em}\text{values}$; $\text{red}=\text{trend}\hspace{0.17em}\text{line}$.

Figure 9

Readings (red) and absolute errors (vertical lines) for different dosimeter positions. Green line represents the polynomial trend line for the readings; G denotes gantry; arrow represents orientation of the dosimeter.

Figure 10

Readings after the dosimeter was exposed to CBCT: (a) blue – postirradiation readings were taken after 2.5 min; (b) green – postirradiation readings were taken after 15 min. Y‐axes represent the change in the device signal with radiation.

Figure 11

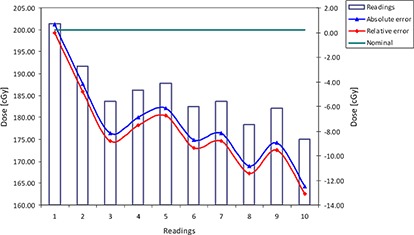

Rapid falloff noticed after ten consecutive measurements.

Figure 12

Average deviation from expected dose for 17 IMRT prostate patients during the RT course.
