. 2012 Dec 1;68(Pt 12):o3353.
doi: 10.1107/S1600536812046260. Epub 2012 Nov 17.

Pyridine-2,5-diamine

Sergiu Draguta  1 , Victor N Khrustalev, Marina S Fonari, Mikhail Yu Antipin, Tatiana V Timofeeva
Affiliations

Pyridine-2,5-diamine

Sergiu Draguta et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title mol-ecule, C5H7N3, intra-cyclic angles cover the range 117.15 (10)-124.03 (11)°. The N atoms of the amino groups have trigonal-pyramidal configurations deviating slightly from the pyridine plane by 0.106 (2) and -0.042 (2) Å. In the crystal, the pyridine N atom serves as an acceptor of an N-H⋯N hydrogen bond which links two mol-ecules into a centrosymmetric dimer. Inter-molecular N-H⋯N hydrogen bonds between the amino groups further consolidate the crystal packing, forming a three-dimensional network.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
Molecular structure of I. Displacement ellipsoids are shown at the 50% probability level. H atoms are presented as small spheres of arbitrary radius.
Fig. 2.
Fig. 2.

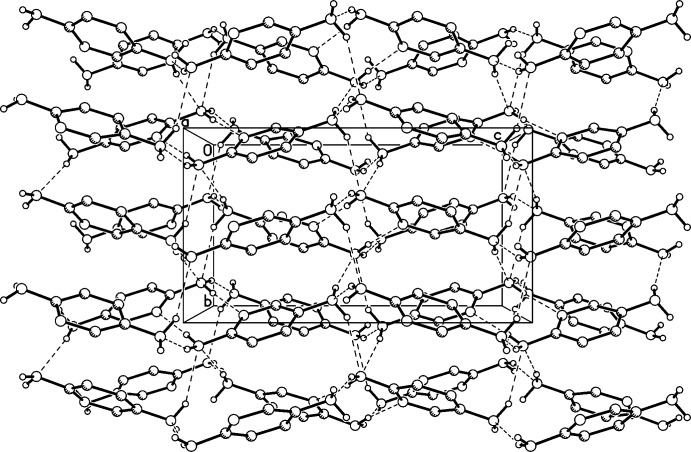

A portion of the crystal packing showing intermolecular N—H···N hydrogen bonds as dashed lines.
See this image and copyright information in PMC

References

    1. Al-Dajani, M. T. M., Salhin, A., Mohamed, N., Loh, W.-S. & Fun, H.-K. (2009). Acta Cryst. E65, o2931–o2932. - PMC - PubMed
    1. Betz, R., Gerber, T., Hosten, E. & Schalekamp, H. (2011). Acta Cryst. E67, o2154. - PMC - PubMed
    1. Bruker (2001). SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Bruker (2005). APEX2 Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Crawford, S., Kirchner, M. T., Blaser, D., Boese, R., David, W. I. F., Dawson, A., Gehrke, A., Ibberson, R. M., Marshall, W. G., Parsons, S. & Yamamuro, O. (2009). Angew. Chem. Int. Ed. 48, 755–757. - PubMed
