. 2013;42(5):20120245.
doi: 10.1259/dmfr.20120245. Epub 2013 Mar 21.

Cone beam CT scans with and without artefact reduction in root fracture detection of endodontically treated teeth

B Bechara  1 , C Alex McMahan, W S Moore, M Noujeim, F B Teixeira, H Geha
Affiliations

Cone beam CT scans with and without artefact reduction in root fracture detection of endodontically treated teeth

B Bechara et al. Dentomaxillofac Radiol. 2013.

Abstract

Objectives: Cone beam CT (CBCT) is used widely to depict root fracture (RF) in endodontically treated teeth. Beam hardening and other artefacts due to gutta-percha may increase the time of the diagnosis and result in an incorrect diagnosis. Two CBCT machines, ProMax(®) (Planmeca, Helsinki, Finland) and Master 3D(®) (Vatech, Hwaseong, Republic of Korea), have the option of applying an artefact reduction (AR) algorithm. The aim of this study was to determine whether using an AR algorithm in two CBCT machines enhances the accuracy of detecting RFs in endodontically treated teeth.

Methods: 66 roots were collected and decoronated. All roots were treated endodontically using the same technique with gutta-percha and zinc oxide cement. One-half of the roots were randomly selected and fractured using a nail that was tapped gently with a hammer until complete fracture resulted in two root fragments; the two root fragments were glued together with one layer of methyl methacrylate. The roots were placed randomly in eight prepared beef rib fragments.

Results: The highest accuracy was obtained when the ProMax was used without AR. The lowest accuracy was obtained with the Master 3D when used with AR. For both machines, accuracy was significantly higher without AR than with AR. Both with and without AR, the ProMax machine was significantly more accurate than the Master 3D machine. The same rank ordering was obtained for both sensitivity and specificity.

Conclusions: For both machines, AR decreased the accuracy of RF detection in endodontically treated teeth. The highest accuracy was obtained when using the ProMax without AR.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Example of images of the same fractured root visualized with and without artefact reduction using both CBCT machines
Figure 2
Figure 2
Average area under receiver operating characteristic (ROC) curve, by machine, with and without artefact reduction algorithm. Error bars represent 95% confidence intervals. Dashed reference line represents area of 0.5, i.e. classification no better than chance. a, Significantly different from 0.5; b, Master 3D N significantly higher than Master 3D AR; c, ProMax N significantly higher than ProMax AR; d, ProMax AR significantly higher than Master 3D AR; e, ProMax N significantly higher than Master 3D N. AR, artefact reduction; N, no artefact reduction
Figure 3
Figure 3

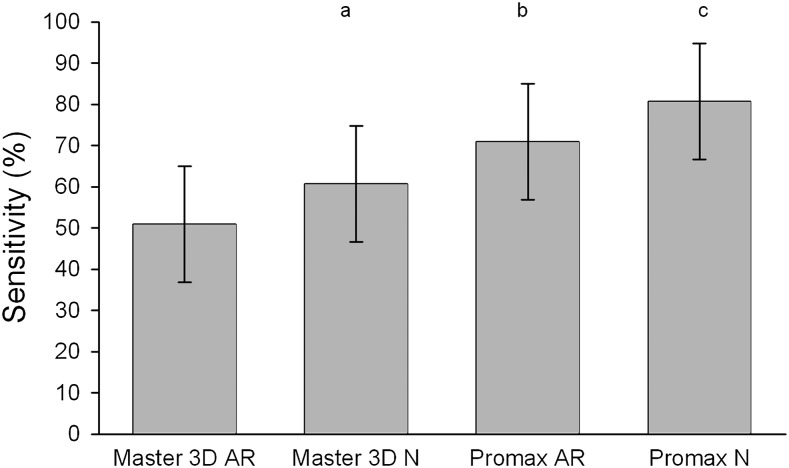

Average sensitivity, by machine, with and without artefact reduction algorithm. Error bars represent 95% confidence intervals. a, Master 3D N significantly higher than Master 3D AR; b, ProMax AR significantly higher than Master 3D AR; c, ProMax N significantly higher than Master 3D N. AR, artefact reduction; N, no artefact reduction
Figure 4
Figure 4
Average specificity, by machine, with and without artefact reduction algorithm. Error bars represent 95% confidence intervals. a, ProMax N significantly higher than ProMax AR; b, ProMax N significantly higher than Master 3D N. AR, artefact reduction; N, no artefact reduction
See this image and copyright information in PMC

References

    1. Sanders MA, Hoyjberg C, Chu CB, Leggitt VL, Kim JS. Common orthodontic appliances cause artifacts that degrade the diagnostic quality of CBCT images. J Calif Dent Assoc 2007; 35: 850–857 - PubMed
    1. Draenert FG, Coppenrath E, Herzog P, Müller S, Mueller-Lisse UG. Beam hardening artefacts occur in dental implant scans with the NewTom cone beam CT but not with the dental 4-row multidetector CT. Dentomaxillofac Radiol 2007; 36: 198–203 - PubMed
    1. Webber RL, Tzukert A, Ruttimann U. The effects of beam hardening on digital subtraction radiography. J Periodontal Res 1989; 24: 53–58 - PubMed
    1. Barrett JF, Keat N. Artifacts in CT: recognition and avoidance. Radiographics 2004; 24: 1679–1691 - PubMed
    1. Vande Berg B, Malghem J, Maldague B, Lecouvet F. Multi-detector CT imaging in the postoperative orthopedic patient with metal hardware. Eur J Radiol 2006; 60: 470–479 - PubMed
