. 2013 Apr 11:7:24.
doi: 10.3389/fnint.2013.00024. eCollection 2013.

Probing myelin and axon abnormalities separately in psychiatric disorders using MRI techniques

Fei Du  1 , Dost Ongür
Affiliations

Probing myelin and axon abnormalities separately in psychiatric disorders using MRI techniques

Fei Du et al. Front Integr Neurosci. .

Abstract

In this manuscript we present novel MRI approaches to dissecting axon vs. myelin abnormalities in psychiatric disorders. Existing DTI approaches are not able to provide specific information on these subcellular elements but novel approaches are beginning to do so. We review two approaches (magnetization transfer ratio-MTR; and diffusion tensor spectroscopy-DTS) and the theoretical framework for interpreting data derived from these approaches. Work is ongoing to collect data that will answer some relevant questions using these techniques in schizophrenia and related conditions.

Keywords: DTS; MTR; axon; g-ratio; myelin.

PubMed Disclaimer

Figures

Figure 1
Figure 1

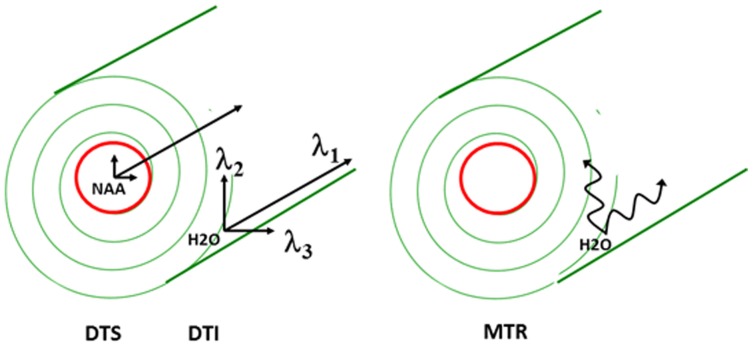

Schematic of proposed white matter measures.
Figure 2
Figure 2

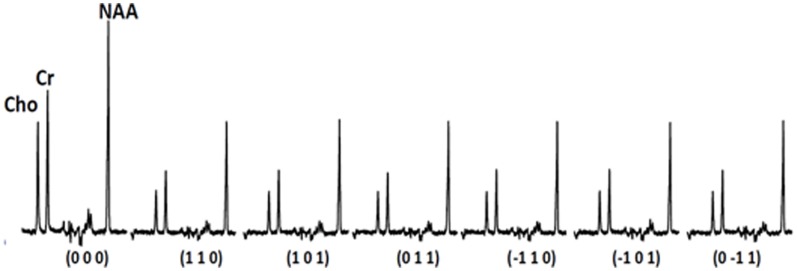

Sample spectra acquired during the diffusion experiment.
Figure 3
Figure 3

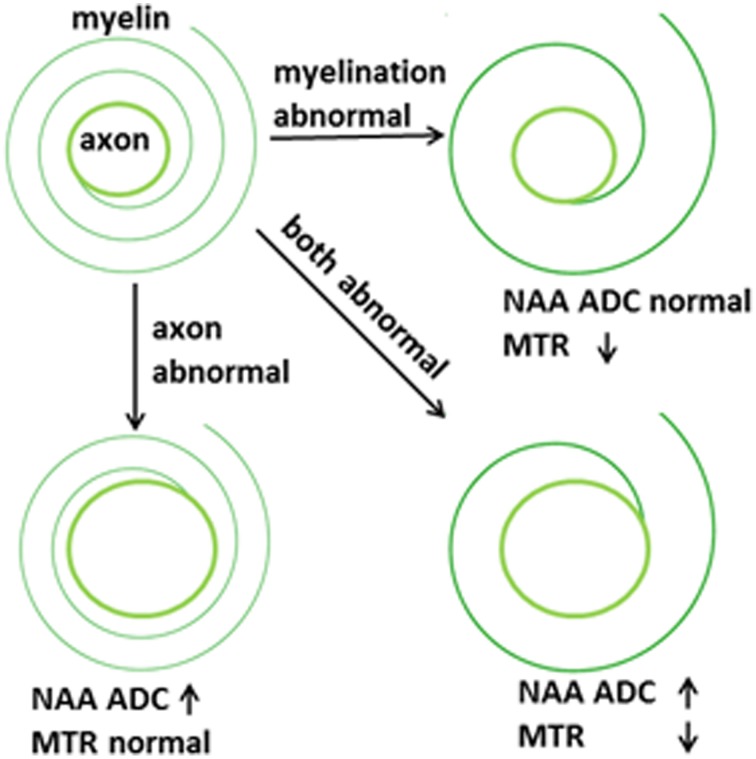

Proposed abnormalities in schizophrenia.
Figure 4
Figure 4

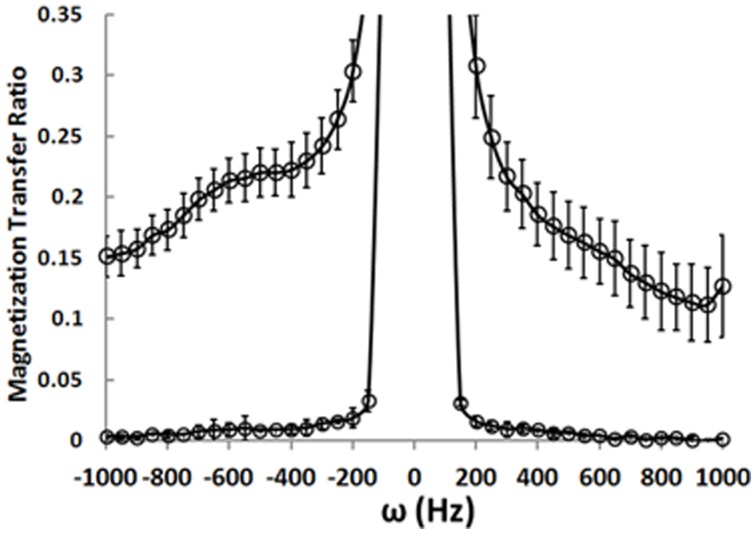

Magnetization transfer ratio data.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Ackerman J. J., Neil J. J. (2010). The use of MR-detectable reporter molecules and ions to evaluate diffusion in normal and ischemic brain. NMR Biomed. 23, 725–733 10.1002/nbm.1530 - DOI - PMC - PubMed
    1. Akbarian S., Bunney W. J., Potkin S., Wigal S., Hagman J., Sandman C., et al. (1993). Altered distribution of nicotinamide-adenine dinucleotide phosphate-diaphorase cells in frontal lobe of schizophrenics implies disturbances of cortical development. Arch. Gen. Psychiatry 50, 169–177 10.1001/archpsyc.1993.01820150007001 - DOI - PubMed
    1. Alexander A. L., Lee J. E., Lazar M., Field A. S. (2007). Diffusion tensor imaging of the brain. Neurotherapeutics 4, 316–329 10.1016/j.nurt.2007.05.011 - DOI - PMC - PubMed
    1. Andreone N., Tansella M., Cerini R., Versace A., Rambaldelli G., Perlini C., et al. (2007). Cortical white-matter microstructure in schizophrenia. Diffusion imaging study. Br. J. Psychiatry 191, 113–119 10.1192/bjp.bp.105.020990 - DOI - PubMed
    1. Arnone D., McIntosh A. M., Ebmeier K. P., Munafo M. R., Anderson I. M. (2012). Magnetic resonance imaging studies in unipolar depression: systematic review and meta-regression analyses. Eur. Neuropsychopharmacol. 22, 1–16 10.1016/j.euroneuro.2011.05.003 - DOI - PubMed
