. 2013 Apr 5;69(Pt 5):o627.
doi: 10.1107/S160053681300809X. Print 2013 May 1.

9-(2-Chloro-benzyl-idene)anthracen-10(9H)-one

Abdulrahman I Almansour  1 , Natarajan Arumugam, Raju Suresh Kumar, P Vijayalakshmi, J Suresh
Affiliations

9-(2-Chloro-benzyl-idene)anthracen-10(9H)-one

Abdulrahman I Almansour et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C21H13ClO, the central anthracene system is distorted towards a boat conformation and the outer rings are not coplanar with the central ring [dihedral angles = 7.79 (1) and 11.90 (1)°]. The crystal structure features inversion dimers with graph-set motif R 2 (2)(18) formed by C-H⋯O inter-actions.

PubMed Disclaimer

Figures

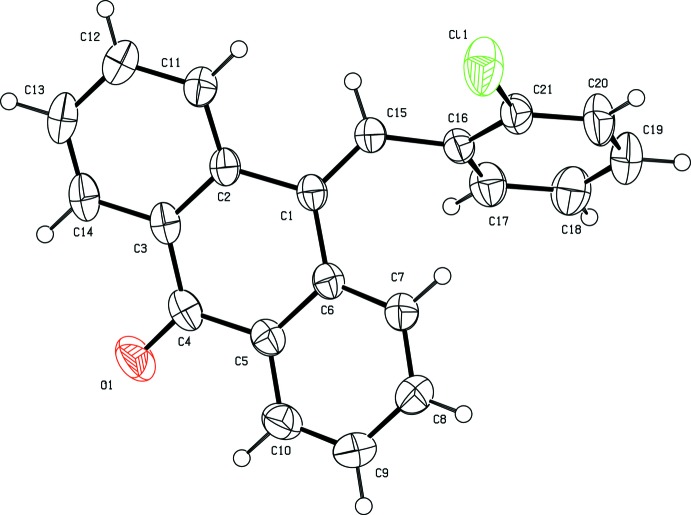

Fig. 1.
Fig. 1.
The molecular structure of the title compound, showing 40% probability displacement ellipsoids and the atom-numbering scheme.
Fig. 2.
Fig. 2.
The partial packing diagram showing C—H···.O hydrogen bonding generating graph set motif R22(18).
See this image and copyright information in PMC

References

    1. Alston, P. V., Ottenbrite, R. M. & Newby, J. (1979). J. Org. Chem. 44, 4939–4943.
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573.
    1. Bruker (2004). APEX2 and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cremer, D. & Pople, J. A. (1975). J. Am. Chem. Soc. 97, 1354–1358.
    1. Kaplan, F. & Conroy, H. (1963). J. Org. Chem. 28, 1593–1596.
