. 2013 Jun 7;13(6):7443-53.
doi: 10.3390/s130607443.

Theoretical analysis of the optical propagation characteristics in a fiber-optic surface plasmon resonance sensor

Linlin Liu  1 , Jun Yang, Zhong Yang, Xiaoping Wan, Ning Hu, Xiaolin Zheng
Affiliations

Theoretical analysis of the optical propagation characteristics in a fiber-optic surface plasmon resonance sensor

Linlin Liu et al. Sensors (Basel). .

Abstract

Surface plasmon resonance (SPR) sensor is widely used for its high precision and real-time analysis. Fiber-optic SPR sensor is easy for miniaturization, so it is commonly used in the development of portable detection equipment. It can also be used for remote, real-time, and online detection. In this study, a wavelength modulation fiber-optic SPR sensor is designed, and theoretical analysis of optical propagation in the optical fiber is also done. Compared with existing methods, both the transmission of a skew ray and the influence of the chromatic dispersion are discussed. The resonance wavelength is calculated at two different cases, in which the chromatic dispersion in the fiber core is considered. According to the simulation results, a novel multi-channel fiber-optic SPR sensor is likewise designed to avoid defaults aroused by the complicated computation of the skew ray as well as the chromatic dispersion. Avoiding the impact of skew ray can do much to improve the precision of this kind of sensor.

PubMed Disclaimer

Figures

Figure 1.
Figure 1.
Light transmission mode in an optical fiber.
Figure 2.
Figure 2.
Projection of the propagation path of a skew ray on the cross section of an optical fiber.
Figure 3.
Figure 3.
Skew rays of two successive reflections.
Figure 4.
Figure 4.
Simulation spectrum of an SPR sensor based on a silica-core multimode optical fiber.

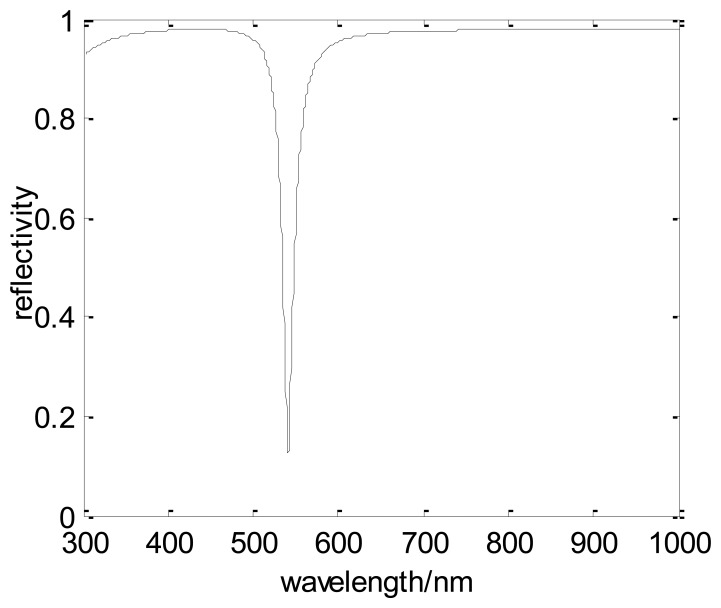

Figure 5.
Figure 5.
Simulation spectrum of the fiber-optic SPR sensor when the chromatic dispersion of the fiber core is considered.
Figure 6.
Figure 6.
Proposed design of a novel multi-channel fiber-optic SPR sensor.
See this image and copyright information in PMC

References

    1. Lin Y.C., Tsao Y.C., Tsai W.H., Hung T.S., Shen K.S., Liao S.C. The enhancement method of optical fiber biosensor based on surface plasmon resonance with cold plasma modification. Sens. Actuators B. 2008;133:370–373.
    1. Abdelghani A., Chovelon J.M., Krafft J.M., Jaffrezic-Renault N., Trouillet A., Veillas C., Ronot-Trioli C., Gagnaire H. Study of self-assembled monolayers of n-alkanethiol on a surface plasmon resonance fibre optic sensor. Thin Solid Films. 1996;284:157–161.
    1. Jorgenson R.C., Yee S.S. Control of the dynamics range and sensitivity of a surface-plasmon resonance based fiber otpics sensor. Sens. Actuators B. 1994;43:44–48.
    1. Wood R.W. On a remarkable case of uneven distribution of light in a diffraction grating spectrum. Philos. Mag. 1902;4:396–402.
    1. Kretschmann E., Raether H. The determination of optical constants of metal by excitation of surface plasmons. Z. Phys. 1971;241:313–321.
