Meta-Analysis
. 2013 Aug 3;2013(8):CD006947.
doi: 10.1002/14651858.CD006947.pub3.

Internal versus external tocodynamometry during induced or augmented labour

Jannet J H Bakker  1 , Petra F Janssen, Karlijn van Halem, Birgit Y van der Goes, Dimitri N M Papatsonis, Joris A M van der Post, Ben Willem J Mol
Affiliations
Meta-Analysis

Internal versus external tocodynamometry during induced or augmented labour

Jannet J H Bakker et al. Cochrane Database Syst Rev. .

Abstract

Background: Uterine contractions can be registered by external tocodynamometry (ET) or, after rupture of the membranes, by internal tocodynamometry (IT). Monitoring of the frequency of contractions is important especially when intravenous oxytocin is used as excessive uterine activity (hyperstimulation or tachysystole) can cause fetal distress. During induction of labour as well as during augmentation with intravenous oxytocin, some clinicians choose to monitor frequency and strength of contractions with IT rather than with ET as an intrauterine pressure catheter measures intrauterine activity more accurately than an extra-abdominal tocodynamometry device. However, insertion of an intrauterine catheter has higher costs and also potential risks for mother and child.

Objectives: To assess the effectiveness of IT compared with using ET when intravenous oxytocin is used for induction or augmentation of labour.

Search methods: We searched the Cochrane Pregnancy and Childbirth Group's Trials Register (31 March 2013) and PubMed (1966 to 6 April 2013).

Selection criteria: We included all published randomised controlled trials with data from women in whom IT was compared with ET in induced or augmented labour with oxytocin. We excluded trials that employed quasi-randomised methods of treatment allocation. We found no unpublished or ongoing studies on this subject.

Data collection and analysis: Two review authors independently assessed trial eligibility and risk of bias, and independently extracted data. Data were checked for accuracy. Where necessary, we contacted study authors for additional information.

Main results: Three studies involving a total of 1945 women were included. Overall, risk of bias across the three trials was mixed. No serious complications were reported in the trials and no neonatal or maternal deaths occurred. The neonatal outcome was not statistically different between groups: Apgar score less than seven at five minutes (RR 1.78, 95% CI 0.83 to 3.83; three studies, n = 1945); umbilical artery pH less than 7.15 (RR 1.31, 95% CI 0.95 to 1.79; one study, n = 1456); umbilical artery pH less than 7.16 (RR 1.23, 95% CI 0.39 to 3.92; one study, n = 239); admission to the neonatal intensive care unit (RR 0.34, 95% CI 0.07 to 1.67; two studies, n = 489); and more than 48 hours hospitalisation (RR 0.92, 95% CI 0.71 to 1.20; one study, n = 1456). The pooled risk for instrumental delivery (including caesarean section, ventouse and forceps extraction) was not statistically significantly different (RR 1.05, 95% CI 0.91 to 1.21; three studies, n = 1945). Hyperstimulation was reported in two studies (n = 489), but there was no statistically significant difference between groups (RR 1.21, 95% CI 0.78 to 1.88).

Authors' conclusions: This review found no differences between the two types of monitoring (internal or external tocodynamometry) for any of the maternal or neonatal outcomes. Given that this review is based on three studies (N = 1945 women) of moderate quality, there is insufficient evidence to recommend the use of one form of tocodynamometry over another for women where intravenous oxytocin was administered for induction or augmentation of labour.

PubMed Disclaimer

Conflict of interest statement

As the contact person for this review is also the first author of the largest study (Bakker 2010) that was included, the decision for inclusion and assessment of the Bakker trial for inclusion, risk of bias and data extraction was done by Birgit van de Goes who was not involved in the Bakker trial in any way.

All authors declared no individual conflict of interest.

Figures

1.1
1.1. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 1 Uterine rupture.
1.2
1.2. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 2 Hyperstimulation.

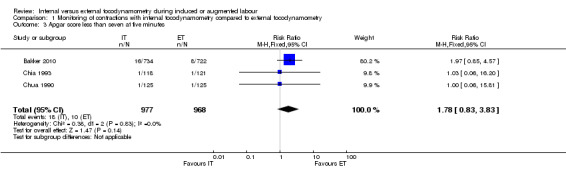

1.3
1.3. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 3 Apgar score less than seven at five minutes.
1.4
1.4. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 4 Umbilical artery pH < 7.15.
1.5
1.5. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 5 Umbilical artery pH < 7.05.
1.6
1.6. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 6 Umbilical artery pH < 7.16.
1.7
1.7. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 7 Admission to neonatal intensive care.
1.8
1.8. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 8 Neonatal admission > 48 hours.
1.9
1.9. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 9 Perinatal mortality.
1.10
1.10. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 10 Serious maternal outcomes (defined as death, coma, cardiac arrest, respiratory arrest, use of a mechanical ventilator, admission to intensive care unit).
1.11
1.11. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 11 Instrumental delivery.
1.12
1.12. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 12 Instrumental vaginal delivery.
1.13
1.13. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 13 Caesarean section.
1.14
1.14. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 14 Mean time to delivery.

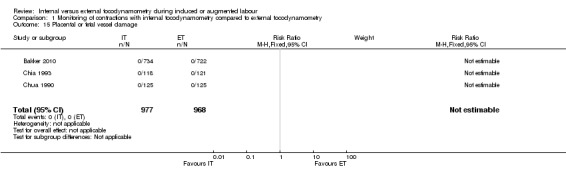

1.15
1.15. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 15 Placental or fetal vessel damage.
1.16
1.16. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 16 Indication of infection up to three weeks postpartum in mother or child.
1.17
1.17. Analysis
Comparison 1 Monitoring of contractions with internal tocodynamometry compared to external tocodynamometry, Outcome 17 Signs intrauterine infection during labor.
See this image and copyright information in PMC

Update of

References

References to studies included in this review

Bakker 2010 {published data only}
    1. Bakker JJH, Verhoeven CJM, Janssen PF, Lith JM, Oudgaarden ED, Bloemenkamp KWM, et al. Outcomes after internal versus external tocodynamometry for monitoring labor. The New England Journal of Medicine 2010;362(4):306‐13. - PubMed
    1. Post JAM, Bakker JJH. Intra uterine pressure monitoring for augmentation or induction of labour with intravenous oxytocin: benefits and costs. Netherlands Trial Register (http://www.trialregister.nl) (accessed 1 November 2005).
    1. Halem K, Bakker JJH, Verhoeven CJ, Papatsonis DN, Oudgaarden ED, Janssen PF, et al. Does use of an intrauterine catheter during labour increase risk of infection?. The Journal of Maternal‐Fetal & Neonatal Medicine 2011 June 7 [Epub ahead of print]. - PubMed
Chia 1993 {published and unpublished data}
    1. Chia YT, Arulkumaran S, Soon SB, Norshida S, Ratnam SS. Induction of labour: does internal tocography result in better obstetric outcome than external tocography. Australian & New Zealand Journal of Obstetrics & Gynaecology 1993;33:159‐61. - PubMed
Chua 1990 {published data only}
    1. Chua S, Kurup A, Arulkumaran S, Ratnam SS. Augmentation of labor: does internal tocography result in better obstetric outcome than external tocography?. Obstetrics and Gynecology 1990;76:164‐7. - PubMed
    1. Chua S, Kurup A, Arulkumaran S, Ratnam SS. Augmentation of labour: internal tocography does not result in better obstetric outcome than external tocography. International Journal of Gynaecology and Obstetrics 1991;36 Suppl:368.

References to studies excluded from this review

Arulkumaran 1991 {published data only}
    1. Arulkumaran S, Yang M, Tien CY, Ratnam SS. Reliability of intrauterine pressure measurements. Obstetrics and Gynecology 1991;78(5):800‐2. - PubMed
Bsat 1992 {published data only}
    1. Bsat F, Warsof S. Comparison of extraovular and intraovular uterine contraction monitoring. American Journal of Obstetrics and Gynecology 1991;164:252. - PubMed
    1. Bsat FA, Warsof S. Extraovular and intraovular uterine contraction monitoring: a comparison. Journal of Reproductive Medicine 1992;37(9):813‐6. - PubMed
Chua 1992 {published data only}
    1. Chua S, Arulkumaran S, Yang M, Ratnam SS, Steer PJ. The accuracy of catheter‐tip pressure transducers for the measurement of intrauterine pressure in labour. British Journal of Obstetrics and Gynaecology 1992;99:186‐9. - PubMed
Chua 1998 {published data only}
    1. Chua S, Lee M, Vanaja K, Chong YS, Nordstrom L, Arulkumaran S. The reliability of catheter‐tip transducers for the measurement of intrauterine pressure in the third stage of labour. British Journal of Obstetrics and Gynaecology 1998;105:352‐6. - PubMed
Lemus 1997 {published data only}
    1. Lemus J, Balducci J, Atlas R, Klasko S. The use of intrauterine pressure catheters in active management of labor. American Journal of Obstetrics and Gynecology 1997;176(1 Pt 2):S142.
Panayotopoulos 1998 {published data only}
    1. Panayotopoulos N, Salamalekis E, Vitoratos N, Loghis C, Kassanos D. Monitoring of uterine activity in cases of labor augmentation, and neonatal outcome. Prenatal and Neonatal Medicine 1998;3:464‐7.
Sciscione 2005 {published data only}
    1. Sciscione A, Rhee A, Duhl A, Pollock M, Hoffman M, Colmorgen G. Intrauterine pressure catheters (IUPC) and the risk of extra‐ovular placement and resultant placental separation [abstract]. American Journal of Obstetrics and Gynecology 2001;185(6 Suppl):S91.
    1. Sciscione A, Rhee A, Duhl A, Pollock M, Maas B, Manley J, et al. A randomized prospective trial of two types of intrauterine pressure catheters and the rate of extra‐ovular placement. American Journal of Obstetrics and Gynecology 2000;182(1 Pt 2):S154.
    1. Sciscione AC, Duhl A, Pollock MA, Hoffman MK, Rhee A, Colmorgen GH. Extramembranous placement of an air‐coupled vs. transducer‐tipped intrauterine pressure catheter. Journal of Reproductive Medicine 2005;50(8):578‐84. - PubMed
Teplick 2012 {published data only}
    1. Teplick F. Assessment of an alternative stabilization device for electronic fetal monitoring utilizing external ultrasound and tocodynamometer in labor and delivery patients. Journal of Obstetric, Gynecologic, & Neonatal Nursing 2012;41:S140.

Additional references

ACOG 2009
    1. American College of Obstetrics and Gynecology Committee on Practice Bulletins. Dystocia and Augmentation of Labor. ACOG Practice Bulletin Number 49. ACOG, 2009. - PubMed
Alfirevic 2009
    1. Alfirevic Z, Kelly A, Dowswell T. Intravenous oxytocin alone for cervical ripening and induction of labour. Cochrane Database of Systematic Reviews 2009, Issue 4. [DOI: 10.1002/14651858.CD003246.pub2] - DOI - PMC - PubMed
Bakker 2008
    1. Bakker PC, Zikkenheimer M, Geijn HP. The quality of intrapartum uterine activity monitoring. Journal of Perinatal Medicine 2008;36(3):197‐201. - PubMed
Chan 1973
    1. Chan WH, Paul RH, Toews J. Intrapartum fetal monitoring: maternal and fetal morbidity and perinatal mortality. Obstetrics and Gynecology 1973;41:7‐13. - PubMed
Dale 1906
    1. Dale HH. On some physiological actions of ergot. Journal of Physiology 1906;34(3):163‐206. - PMC - PubMed
Egger 1997
    1. Egger M, Davey Smith G, Schneider M, Minder C. Bias in meta‐analysis detected by a simple, graphical test. BMJ 1997;315(7109):629‐34. - PMC - PubMed
Handwerker 1995
    1. Handwerker SM, Selick AM. Placental abruption after insertion of catheter tip intrauterine pressure transducers: a report of four cases. Journal of Reproductive Medicine 1995;40(12):845‐9. - PubMed
Harbison 2010
    1. Harbison L, Bell L. Anaphylactoid syndrome after intrauterine pressure catheter placement. Obstetrics and Gynecology 2010;115(2 Pt 2):407‐8. - PubMed
Harbord 2006
    1. Harbord RM, Egger M, Sterne JA. A modified test for small‐study effects in meta‐analyses of controlled trials with binary endpoints. Statistics in Medicine 2006;25(20):3443‐57. - PubMed
Higgins 2011
    1. Higgins JPT, Green S, editors. Cochrane Handbook for Systematic Reviews of Interventions Version 5.1.0 [updated March 2011]. The Cochrane Collaboration, 2011. Available from www.cochrane‐handbook.org.
Howarth 2001
    1. Howarth GR, Botha DJ. Amniotomy plus intravenous oxytocin for induction of labour. Cochrane Database of Systematic Reviews 2001, Issue 3. [DOI: 10.1002/14651858.CD003250] - DOI - PMC - PubMed
Land 1983
    1. Land H, Grez M, Ruppert S, Schmale H, Rehbein M, Richter D, et al. Deduced amino acid sequence from the bovine oxytocin‐neurophysin I precursor cDNA. Nature 1983;302:342‐4. - PubMed
Lind 1998
    1. Lind BK. The frequency of extramembranous placement of intrauterine pressure catheters. Primary Care Update for Ob/Gyns 1998;5(4):185. - PubMed
Lind 1999
    1. Lind BK. Complications caused by extramembranous placement of intrauterine pressure catheters. American Journal of Obstetrics and Gynecology 1999;180(4):1034‐5. - PubMed
MacKenzie 2006
    1. MacKenzie IZ. Induction of labour at the start of the new millennium. Reproduction 2006;131(6):989‐98. - PubMed
Matsuo 2008
    1. Matsuo K, Lynch MA, Kopelman JN, Atlas RO. Anaphylactoid syndrome of pregnancy immediately after intrauterine pressure catheter placement. American Journal of Obstetrics and Gynecology 2008;198(2):e8‐e9. - PubMed
Osterman 2011
    1. Osterman MJ, Martin JA, Mathews TJ, Hamilton BE. Expanded data from the new birth certificate. National Vital Statistics Reports 2011;59(7):1‐28. [PUBMED: 21848043] - PubMed
RevMan 2011 [Computer program]
    1. The Nordic Cochrane Centre, The Cochrane Collaboration. Review Manager (RevMan). Version 5.1. Copenhagen: The Nordic Cochrane Centre, The Cochrane Collaboration, 2011.
Rodriquez 1989
    1. Rodriquez MH, Masaki DI, Phelan JP, Diaz FG. Uterine rupture: are intrauterine pressure catheters useful in the diagnosis?. American Journal of Obstetrics and Gynecology 1989;161:666‐9. - PubMed
Smith 2006
    1. Smith JG, Merrill DC. Oxytocin for induction of labor. Clinical Obstetrics and Gynecology 2006;49(3):594‐608. - PubMed
Soper 1989
    1. Soper DE, Mayhall CG, Dalton HP. Risk factors for intraamniotic infection: a prospective epidemiologic study. American Journal of Obstetrics and Gynecology 1989;161(3):562‐6. - PubMed
Soper 1996
    1. Soper DE, Mayhall CG, Froggatt JW. Characterization and control of intraamniotic infection in an urban teaching hospital. American Journal of Obstetrics and Gynecology 1996;175(2):304‐9. - PubMed
Trudinger 1978
    1. Trudinger BJ, Pryse‐Davies J. Fetal hazards of the intrauterine pressure catheter: five case reports. British Journal Obstetrics and Gynaecology 1978;85:573‐4. - PubMed
van Halem 2011
    1. Halem K, Bakker JJH, Verhoeven CJ, Papatsonis DN, Oudgaarden ED, Janssen PF, et al. Does use of an intrauterine catheter during labour increase risk of infection?. Journal of Maternal‐Fetal & Neonatal Medicine 2011 June 7 [Epub ahead of print]. - PubMed
Wilmink 2008
    1. Wilmink FA, Wilms FF, Heydanus R, Mol BW, Papatsonis DN. Fetal complications after placement of an intrauterine pressure catheter: a report of two cases and review of the literature. Journal of Maternal‐Fetal & Neonatal Medicine 2008;21(12):880‐3. - PubMed

References to other published versions of this review

Bakker 2012
    1. Bakker JJH, Janssen PF, Halem K, Goes BY, Papatsonis DN, Post JAM, Mol BWJ. Internal versus external tocodynamometry during induced or augmented labour. Cochrane Database of Systematic Reviews 2012, Issue 12. [DOI: 10.1002/14651858.CD006947.pub2] - DOI - PubMed
