. 2012 Jul;24(3-4):127-34.
doi: 10.1016/j.sdentj.2012.05.001. Epub 2012 Jun 1.

Effect of exposure time on the accuracy and reliability of cone beam computed tomography in the assessment of dental implant site dimensions in dry skulls

Asmáa A Al-Ekrish  1
Affiliations

Effect of exposure time on the accuracy and reliability of cone beam computed tomography in the assessment of dental implant site dimensions in dry skulls

Asmáa A Al-Ekrish. Saudi Dent J. 2012 Jul.

Abstract

Objectives: To investigate the accuracy and reliability of implant site measurements, recorded from low-dose cone beam computed tomography (CBCT) images.

Methods: CBCT reformatted images of five skulls were obtained using 40, 20 and 7 s exposure protocols. From these protocols, edentulous ridge dimensions were recorded by two observers and compared with measurements recorded directly from the bone. The measurement errors and intra- and inter-examiner reliability were calculated for each exposure protocol and compared with each other.

Results: The mean absolute errors from the 40, 20 and 7 s protocols were 0.50, 0.46, and 0.51 mm, respectively. The intra-examiner reliability scores were 0.996, 0.995 and 0.998, respectively. The inter-examiner reliability scores were 0.993, 0.998 and 0.994, respectively. There was no significant difference in accuracy or reliability between the three protocols.

Conclusions: In imaging of dry skulls, lowering the CBCT exposure time from 40 s to 20 or 7 s does not affect the reliability or accuracy of implant site measurements.

Keywords: CBCT; Dental implantation; Dry skull; Radiation dosage; Reliability.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Diagram showing the direction of the height and width measurements on transverse cross-sections. (a) Mandibular section, anterior to the mental foramen. (b) Mandibular section, at and posterior to the mental foramen. (c) Maxillary section.
Figure 2
Figure 2
Sample of reformatted CBCT transverse cross-sectional images (at a window level of 278 and a window width of 2484) obtained using an exposure time of (a) 40 s, (b) 20 s, and (c) 7 s.
Figure 3
Figure 3
Frequency histogram of the measurement error values obtained using a 40 s exposure.
Figure 4
Figure 4
Frequency histogram of the measurement error values obtained using a 20 s exposure.
Figure 5
Figure 5

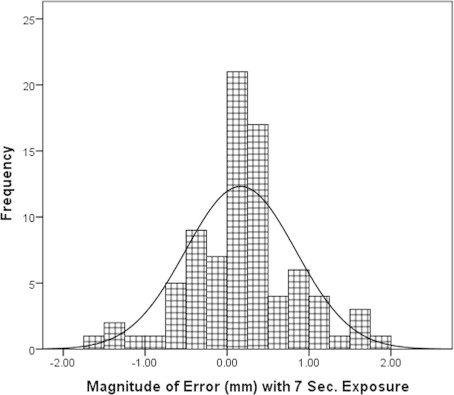

Frequency histogram of the measurement error values obtained using a 7 s exposure.
Figure 6
Figure 6
Bar chart of the means of the absolute measurement errors (±1 standard error) obtained with the three examination protocols for the entire sample and for the height measurements at the IDC.
None
See this image and copyright information in PMC

References

    1. Al-Ekrish A., Ekram M. A comparative study of the accuracy and reliability of multidetector computed tomography and cone beam computed tomography in the assessment of dental implant site dimensions. Dentomaxillofac. Radiol. 2011;40:67–75. - PMC - PubMed
    1. Arai Y., Tammisalo E., Iwai K., Hashimoto K., Shinoda K. Development of a compact computed tomographic apparatus for dental use. Dentomaxillofac. Radiol. 1999;28:245–248. - PubMed
    1. Araki K., Maki K., Seki K. Characteristics of a newly developed dentomaxillofacial X-ray cone beam CT scanner (CB MercuRay): system configuration and physical properties. Dentomaxillofac. Radiol. 2004;33:51–59. - PubMed
    1. Benavides E., Rios H.F., Ganz S.D., An C.H., Resnik R., Reardon G.T., Feldman S.J., Mah J.K., Hatcher D., Kim M.J., Sohn D.S., Palti A., Perel M.L., Judy K.W., Misch C.E., Wang H.L. Use of cone beam computed tomography in implant dentistry: the international congress of oral implantologists consensus report. Implant Dent. 2012;21:1–9. - PubMed
    1. Bushberg J.T., Seibert J.A., Leidholdt E.M., Jr., Boone J.M. second ed. Lippincott Williams & Wilkins; Philadelphia: 2002. The Essential Physics of Medical Imaging.
