. 2013 Sep 7;69(Pt 10):o1519.
doi: 10.1107/S1600536813024513. eCollection 2013.

2,3,4,5,6-Penta-fluoro-trans-cinnamic acid

Angélica Navarrete  1 , Ratnasamy Somanathan, Gerardo Aguirre
Affiliations

2,3,4,5,6-Penta-fluoro-trans-cinnamic acid

Angélica Navarrete et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The title compound, C9H3F5O2, crystallizes as O-H⋯O hydrogen-bonded carb-oxy-lic acid dimers that, together with C-H⋯F inter-actions and O⋯F [2.8065 (13) and 2.9628 (13) Å] and F⋯F [2.6665 (11), 2.7049 (12) and 2.7314 (12) Å] contacts, form a sheet-like structure. The sheets are stacked via short π-π inter-actions [centroid-centroid distance = 4.3198 (11) Å]. An intra-molecular C-H⋯F inter-action is also observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure of the title compound with the atom numbering scheme, displacement ellipsoids are drawn at 30% probability level. H atoms are present as small spheres of arbitrary radius.
Fig. 2.
Fig. 2.

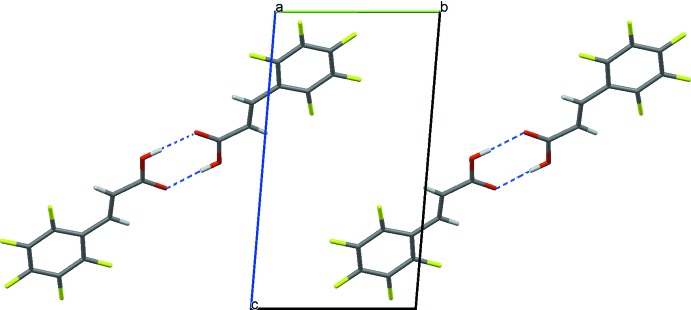

A packing diagram of (I). Intermolecular hydrogen bonds are shown as dashed lines.
See this image and copyright information in PMC

References

    1. Aguirre, G., Somanathan, R. & Hellberg, L. H. (1998). J. Fluorine Chem. 90, 5–8.
    1. Brettle, R. & Mosedale, A. J. (1988). J. Chem. Soc. Perkin Trans. 1, pp. 2185–2195.
    1. Bruker (2008). APEX2, SADABS and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Goud, B. S., Reddy, P. K., Panneerselvam, K. & Desiraju, G. R. (1995). Acta Cryst. C51, 683–685.
    1. Quan, J. & Sun, H.-S. (2013). Acta Cryst. E69, o30. - PMC - PubMed
