. 2013 Nov 19:13:38.
doi: 10.1186/1471-2342-13-38.

Relationship of moderate and low isometric lumbar extension through architectural and muscular activity variables: a cross sectional study

Antonio I Cuesta-Vargas  1 , Manuel Gonzalez-Sanchez
Affiliations

Relationship of moderate and low isometric lumbar extension through architectural and muscular activity variables: a cross sectional study

Antonio I Cuesta-Vargas et al. BMC Med Imaging. .

Abstract

Background: No study relating the changes obtained in the architecture of erector spinae (ES) muscle were registered with ultrasound and different intensities of muscle contraction recorded by surface EMG (electromyography) on the ES muscle was found. The aim of this study was analyse the relationship in the response of the ES muscle during isometric moderate and light lumbar isometric extension considering architecture and functional muscle variables.

Methods: Cross-sectional study. 46 subjects (52% men) with a group mean age of 30.4 (±7.78). The participants developed isometric lumbar extension while performing moderate and low isometric trunk and hip extension in a sitting position with hips flexed 90 degrees and the lumbar spine in neutral position. During these measurements, electromyography recordings and ultrasound images were taken bilaterally. Bilaterally pennation angle, muscle thickness, torque and muscle activation were measured. This study was developed at the human movement analysis laboratory of the Health Science Faculty of the University of Malaga (Spain).

Results: Strong and moderate correlations were found at moderate and low intensities contraction between the variable of the same intensity, with correlation values ranging from 0.726 (Torque Moderate - EMG Left Moderate) to 0.923 (Angle Left Light - Angle Right Light) (p < 0.001). This correlation is observed between the variables that describe the same intensity of contraction, showing a poor correlation between variables of different intensities.

Conclusion: There is a strong relationship between architecture and function variables of ES muscle when describe an isometric lumbar extension at light or moderate intensity.

PubMed Disclaimer

Figures

Figure 1
Figure 1

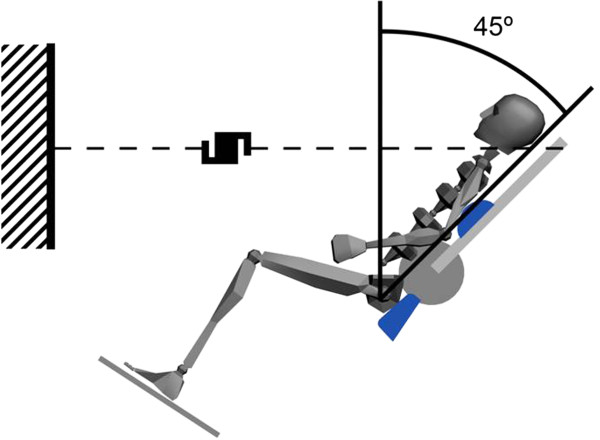

Scheme of the participants position and ejecution of the gesture analized.
Figure 2
Figure 2

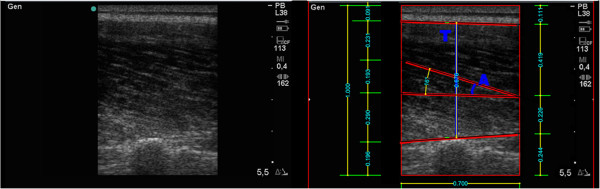

Example architecture variables measure from ultrasound image. A: Pennation Angle. T: Muscular Thickness.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. de Oliveira LF, Menegaldo LL. Individual-specific muscle maximum force estimation using ultrasound for ankle joint torque prediction using an EMG-driven Hill-type model. J Biomech. 2010;43(14):2816–2821. doi: 10.1016/j.jbiomech.2010.05.035. - DOI - PubMed
    1. Menegaldo LL, de Oliveira LF. Effect of muscle model parameter scaling for isometric plantar flexion torque prediction. J Biomech. 2009;42(15):2597–2601. doi: 10.1016/j.jbiomech.2009.06.043. - DOI - PubMed
    1. Kumar S. EMG in rotation-flexion of the torso. J Electromyogr Kinesiol. 2010;20(6):1146–1154. doi: 10.1016/j.jelekin.2010.05.003. - DOI - PubMed
    1. Sung PS, Lammers AR, Danial P. Different parts of erector spinae muscle fatigability in subjects with and without low back pain. Spine J. 2009;9(2):115–120. doi: 10.1016/j.spinee.2007.11.011. - DOI - PubMed
    1. Mannion AF, Dolan P. The effects of muscle length and force output on the EMG power spectrum of the erector spinae. J Electromyogr Kinesiol. 1996;6(3):159–168. doi: 10.1016/1050-6411(95)00028-3. - DOI - PubMed
