. 2013 Nov 9;69(Pt 12):o1757-8.
doi: 10.1107/S1600536813030390.

Ethyl 4-anilino-2-methyl-5-oxo-1-phenyl-2,5-di-hydro-1H-pyrrole-2-carboxyl-ate

Mehmet Akkurt  1 , Shaaban K Mohamed  2 , Mahmoud A A Elremaily  3 , Francisco Santoyo-Gonzalez  4 , Mustafa R Albayati  5
Affiliations

Ethyl 4-anilino-2-methyl-5-oxo-1-phenyl-2,5-di-hydro-1H-pyrrole-2-carboxyl-ate

Mehmet Akkurt et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C20H20N2O3, the central 2,5-di-hydro-1H-pyrrole ring [r.m.s. deviation = 0.014 (1) Å] is oriented at dihedral angles of 77.81 (6) and 25.33 (6)°, respectively, to the attached phenyl ring and the aniline phenyl ring. An intra-molecular N-H⋯O hydrogen bond occurs. In the crystal, mol-ecules are linked through pairs of N-H⋯O hydrogen bonds, forming inversion dimers with an R 2 (2)(10) ring motif. Two weak C-H⋯π inter-actions are also observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

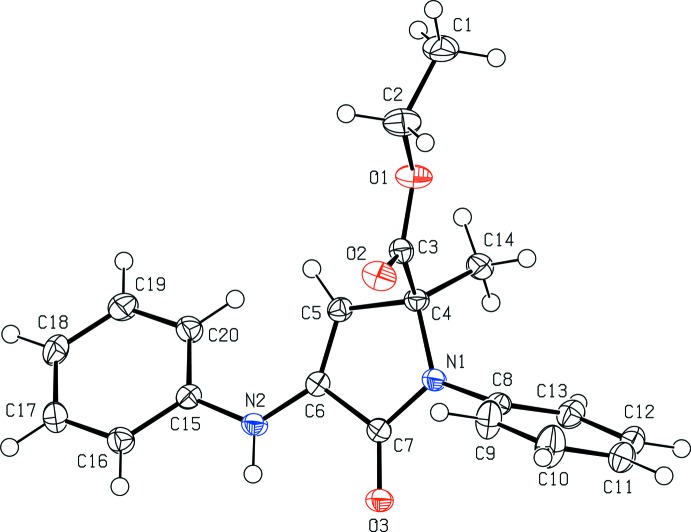

The molecular structure of the title compound with the atom numbering scheme. Displacement ellipsoids for non-H atoms are drawn at the 50% probability level.
Fig. 2.
Fig. 2.
View of the molecular packing and hydrogen bonding (dotted lines) of the title compound along the a axis. H atoms not involved in H bonding are omitted for clarity.
See this image and copyright information in PMC

References

    1. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2, pp. S1–19.
    1. Altomare, A., Burla, M. C., Camalli, M., Cascarano, G. L., Giacovazzo, C., Guagliardi, A., Moliterni, A. G. G., Polidori, G. & Spagna, R. (1999). J. Appl. Cryst. 32, 115–119.
    1. Alvi, K. A., Casey, A. & Nair, B. G. (1998). J. Antibiot. 51, 515–517. - PubMed
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573.
    1. Bruker (2005). SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
