Characteristics of networks of interventions: a description of a database of 186 published networks

Abstract

Systematic reviews that employ network meta-analysis are undertaken and published with increasing frequency while related statistical methodology is evolving. Future statistical developments and evaluation of the existing methodologies could be motivated by the characteristics of the networks of interventions published so far in order to tackle real rather than theoretical problems. Based on the recently formed network meta-analysis literature we aim to provide an insight into the characteristics of networks in healthcare research. We searched PubMed until end of 2012 for meta-analyses that used any form of indirect comparison. We collected data from networks that compared at least four treatments regarding their structural characteristics as well as characteristics of their analysis. We then conducted a descriptive analysis of the various network characteristics. We included 186 networks of which 35 (19%) were star-shaped (treatments were compared to a common comparator but not between themselves). The median number of studies per network was 21 and the median number of treatments compared was 6. The majority (85%) of the non-star shaped networks included at least one multi-arm study. Synthesis of data was primarily done via network meta-analysis fitted within a Bayesian framework (113 (61%) networks). We were unable to identify the exact method used to perform indirect comparison in a sizeable number of networks (18 (9%)). In 32% of the networks the investigators employed appropriate statistical methods to evaluate the consistency assumption; this percentage is larger among recently published articles. Our descriptive analysis provides useful information about the characteristics of networks of interventions published the last 16 years and the methods for their analysis. Although the validity of network meta-analysis results highly depends on some basic assumptions, most authors did not report and evaluate them adequately. Reviewers and editors need to be aware of these assumptions and insist on their reporting and accuracy.

Figure 1. Flow chart of identified networks.

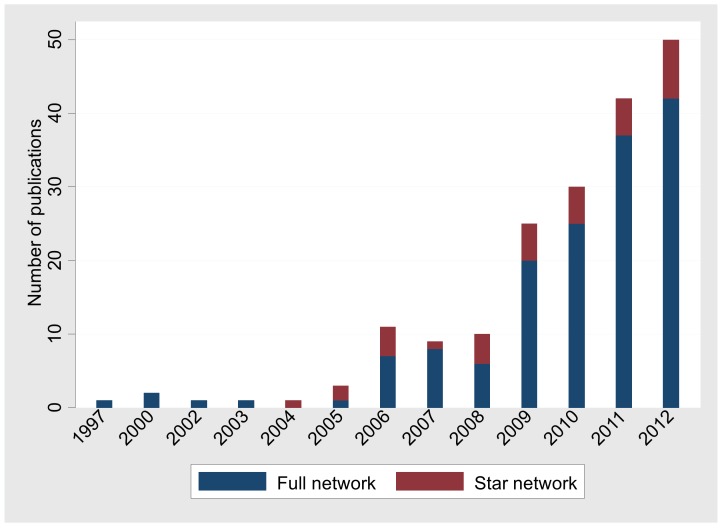

Figure 2. Number of meta-analysis articles with full and star networks published between 1997–2012.

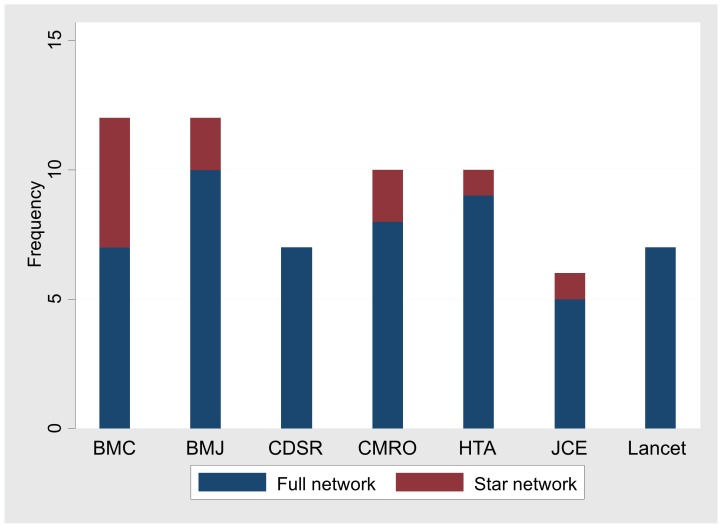

Figure 3. Number of meta-analysis articles with full and star networks published by journal.

BMC: BioMed Central BMJ: British Medical Journal CDSR: Cochrane Database of Systematic Reviews CMRO: Current Medical Research & Opinion HTA: Health Technology Assessment JCE: Journal of Clinical Epidemiology.

Figure 4. Number of published networks by year (1997–2012) and the Network Meta-Analysis method.

Networks that used more than one method are included in all relevant categories.

Figure 5. Number of published full networks by year (1997–2012) and the method employed to examine inconsistency.

Appropriate statistical methods are presented in Table 2. Networks that used more than one method are included in all relevant categories.
