Facilitating preemptive hardware system design using partial reconfiguration techniques

Julio Dondo Gazzano  1 , Fernando Rincon  1 , Carlos Vaderrama  2 , Felix Villanueva  1 , Julian Caba  1 , Juan Carlos Lopez  1
Affiliations

Facilitating preemptive hardware system design using partial reconfiguration techniques

Julio Dondo Gazzano et al. ScientificWorldJournal. .

Abstract

In FPGA-based control system design, partial reconfiguration is especially well suited to implement preemptive systems. In real-time systems, the deadline for critical task can compel the preemption of noncritical one. Besides, an asynchronous event can demand immediate attention and, then, force launching a reconfiguration process for high-priority task implementation. If the asynchronous event is previously scheduled, an explicit activation of the reconfiguration process is performed. If the event cannot be previously programmed, such as in dynamically scheduled systems, an implicit activation to the reconfiguration process is demanded. This paper provides a hardware-based approach to explicit and implicit activation of the partial reconfiguration process in dynamically reconfigurable SoCs and includes all the necessary tasks to cope with this issue. Furthermore, the reconfiguration service introduced in this work allows remote invocation of the reconfiguration process and then the remote integration of off-chip components. A model that offers component location transparency is also presented to enhance and facilitate system integration.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Point to point object communication.
Figure 2
Figure 2
Hardware object adaptation for Remote Method Invocation.
Figure 3
Figure 3
State management of preemptive components.
Figure 4
Figure 4
Dynamic reconfiguration manager.
Figure 5
Figure 5

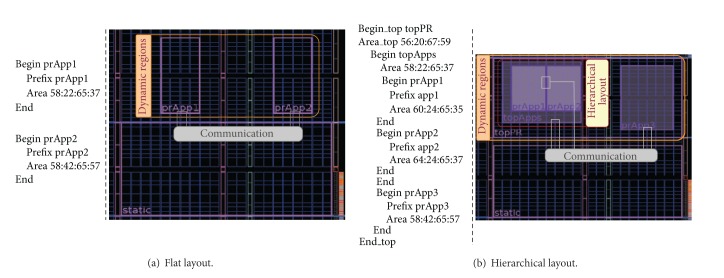

Dynamic reconfigurable areas layout.
Figure 6
Figure 6
Implicit reconfiguration process.
Figure 7
Figure 7
Remote Network Interface.
Figure 8
Figure 8

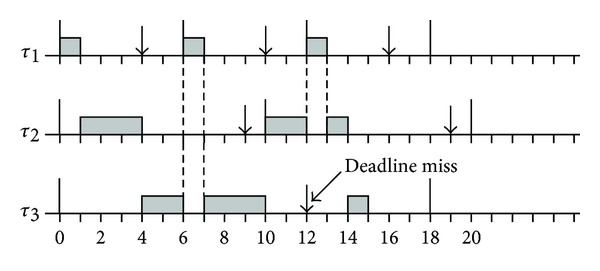

Schedule produced by Deadline Monotonic in fully preemptive mode.
Figure 9
Figure 9
Schedule produced by dynamic reconfiguration in fully preemptive mode.
Figure 10
Figure 10
Block diagram of HW-FAST implementation.
