. 2014 Apr;22(2):98-102.
doi: 10.1590/1678-775720130464.

Apical transportation associated with ProTaper Universal F1, F2 and F3 instruments in curved canals prepared by undergraduate students

Manoel Brito-Júnior  1 , André Luis Faria-E-Silva  2 , Carla Cristina Camilo  1 , Rodrigo Dantas Pereira  3 , Neilor Mateus Antunes Braga  4 , Manoel Damião Sousa-Neto  5
Affiliations

Apical transportation associated with ProTaper Universal F1, F2 and F3 instruments in curved canals prepared by undergraduate students

Manoel Brito-Júnior et al. J Appl Oral Sci. 2014 Apr.

Abstract

Objective: This study evaluated apical transportation associated with ProTaper Universal Fl, F2 and F3 rotary files in curved canais prepared by undergraduate students.

Material and methods: Twenty mesial roots of mandibular molars with curvatures ranging between 25° and 35° were selected. Mesiobuccal canals were instrumented by twenty students with the ProTaper system (Dentsply-Maillefer, Ballaigues, Switzerland) according to the manufacturer's instructions. Pre-fiaring was performed with Sl and SX files. A #15 K-file was inserted into the root canal up to the working length (WL), and an initial digital radiograph was taken in a buccolingual direction (baseline). Afterwards, the S1, S2, F1, F2, and F3 files were employed up to the WL. Other radiographies were taken in the same orientation of the baseline after the use of the Fl, F2, and F3 files, with each file inserted into the root canal. The radiographic images were overlapped, and the Image J software was used to measure the distance between the rotary files' ends and the #15 K-file's end, characterizing the apical transportation. Data were analyzed by Repeated Measure ANOVA and by the SNK post hoc test (P<0.05).

Results: It was verified that file size affected apical transportation significantly (P<0.001). The F3 file showed higher apical transportation than Fl and F2, while between these last files there was no difference.

Conclusion: The undergraduate students produced lower apical transportation in curved canals when they did not use the F3 rotary file.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Left to rigth, standardized radiographic images obtained with #15 K-file (baseline), and F1, F2 and F3 files
Figure 2
Figure 2
Representative image illustrating obtained whith a F3 file introduced into root canal overlapping the image acquired in baseline (#15 K-file). The color of the image with the F3 file was alterned to blue to permit higher contrast with the image obtained at baseline
Figure 3
Figure 3

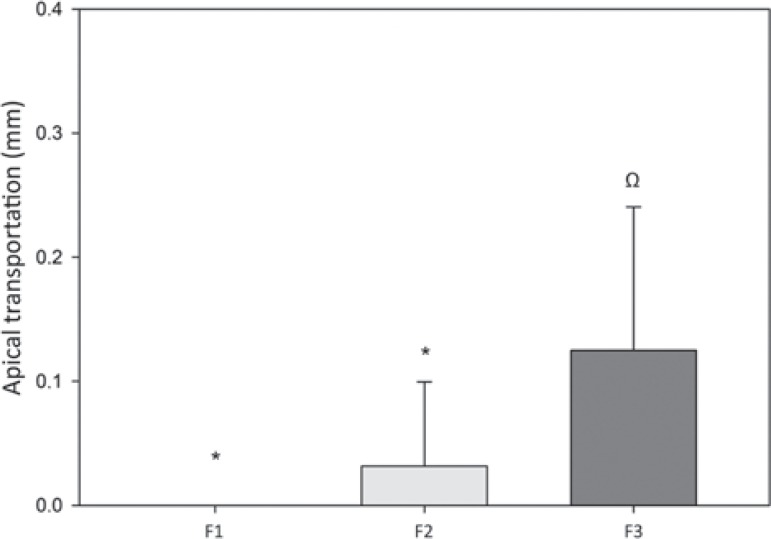

Mean values (in mm) of apical transportation observed for F1, F2 and F3 files. Distinct symbols statical difference (P <0.05)
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Aguiar CM, Mendes DA, Câmara AC, Figueiredo AP. Assessment of canal walls after biomechanical preparation of root canals instrumented with Protaper Universal rotary system. J Appl Oral Sci. 2009;17:590–595. - PMC - PubMed
    1. American Association of Endodontists . Glossary of endodontic terms. Chicago: AAE; 2003.
    1. Baratto-Filho F, Leonardi DP, Zielak JC, Vanni JR, Sayão-Maia SM, Sousa-Neto MD. Influence of ProTaper finishing files and sodium hypochlorite on cleaning and shaping of mandibuldar central incisors - a histological analysis. J Appl Oral Sci. 2009;17:229–233. - PMC - PubMed
    1. Boutsioukis C, Gogos C, Verhaagen B, Versluis M, Kastrinakis E, Van der Sluis LW. The effect of apical preparation size on irrigant flow in root canals evaluated using an unsteady Computational Fluid Dynamics model. Int Endod J. 2010;43:874–878. - PubMed
    1. El Batouty KM, Elmallah WE. Comparison of canal transportation and changes in canal curvature of two nickel-titanium rotary instruments. J Endod. 2011;37:1290–1292. - PubMed
