. 2014 Mar 28;9(1):151.
doi: 10.1186/1556-276X-9-151. eCollection 2014.

An experimental study on thermal conductivity and viscosity of nanofluids containing carbon nanotubes

Rad Sadri  1 , Goodarz Ahmadi  2 , Hussein Togun  1 , Mahidzal Dahari  1 , Salim Newaz Kazi  1 , Emad Sadeghinezhad  1 , Nashrul Zubir  1
Affiliations

An experimental study on thermal conductivity and viscosity of nanofluids containing carbon nanotubes

Rad Sadri et al. Nanoscale Res Lett. .

Abstract

Recently, there has been considerable interest in the use of nanofluids for enhancing thermal performance. It has been shown that carbon nanotubes (CNTs) are capable of enhancing the thermal performance of conventional working liquids. Although much work has been devoted on the impact of CNT concentrations on the thermo-physical properties of nanofluids, the effects of preparation methods on the stability, thermal conductivity and viscosity of CNT suspensions are not well understood. This study is focused on providing experimental data on the effects of ultrasonication, temperature and surfactant on the thermo-physical properties of multi-walled carbon nanotube (MWCNT) nanofluids. Three types of surfactants were used in the experiments, namely, gum arabic (GA), sodium dodecylbenzene sulfonate (SDBS) and sodium dodecyl sulfate (SDS). The thermal conductivity and viscosity of the nanofluid suspensions were measured at various temperatures. The results showed that the use of GA in the nanofluid leads to superior thermal conductivity compared to the use of SDBS and SDS. With distilled water as the base liquid, the samples were prepared with 0.5 wt.% MWCNTs and 0.25% GA and sonicated at various times. The results showed that the sonication time influences the thermal conductivity, viscosity and dispersion of nanofluids. The thermal conductivity of nanofluids was typically enhanced with an increase in temperature and sonication time. In the present study, the maximum thermal conductivity enhancement was found to be 22.31% (the ratio of 1.22) at temperature of 45°C and sonication time of 40 min. The viscosity of nanofluids exhibited non-Newtonian shear-thinning behaviour. It was found that the viscosity of MWCNT nanofluids increases to a maximum value at a sonication time of 7 min and subsequently decreases with a further increase in sonication time. The presented data clearly indicated that the viscosity and thermal conductivity of nanofluids are influenced by the sonication time. Image analysis was carried out using TEM in order to observe the dispersion characteristics of all samples. The findings revealed that the CNT agglomerates breakup with increasing sonication time. At high sonication times, all agglomerates disappear and the CNTs are fragmented and their mean length decreases.

Keywords: Dispersant; Gum arabic; MWCNTs; Multi-walled carbon nanotubes; Nanofluids; SDBS; SDS; Surfactant; Thermal conductivity; Viscosity.

PubMed Disclaimer

Figures

Figure 1
Figure 1
TEM image of multi-walled carbon nanotubes (as received).
Figure 2
Figure 2
Nanofluids preparation set-up.
Figure 3
Figure 3
Experimental set-up for thermal conductivity measurements.
Figure 4
Figure 4
Benchmark test for water thermal conductivity.
Figure 5
Figure 5
Effects of SDBS, SDS and GA on thermal conductivity of base fluid.
Figure 6
Figure 6

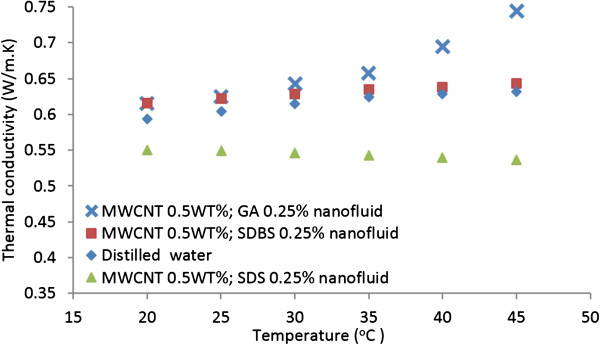

Comparison of thermal conductivity of CNT nanofluids containing GA, SDBS and SDS dispersants.
Figure 7
Figure 7
Effects of ultrasonication time and temperature on thermal conductivity of nanofluids.
Figure 8
Figure 8
Variation of thermal conductivity ratio as function of temperature at various ultrasonication times.
Figure 9
Figure 9
Comparison of thermal conductivity between current experimental data and previous studies for 0.5 wt.% MWCNT nanofluids.
Figure 10
Figure 10
Variation of thermal conductivity as function of ultrasonication time at various temperatures.
Figure 11
Figure 11
Reproducibility of thermal conductivity data of MWCNT nanofluids at 40°C over 28 days.
Figure 12
Figure 12
Variation of dynamic viscosity as function of shear rate at various sonication times. (a) 15°C. (b) 30°C. (c) 45°C.
Figure 13
Figure 13
Variation of dynamic viscosity as function of sonication time at various shear rates. (a) 15°C. (b) 30°C. (c) 45°C.
Figure 14
Figure 14

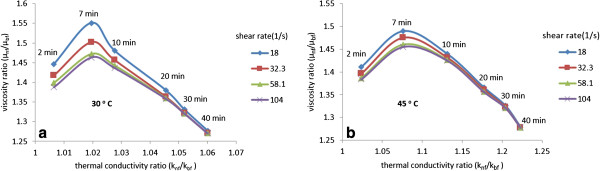

Variation of viscosity ratio as function of thermal conductivity ratio for MWCNT nanofluid suspensions. (a) 30°C. (b) 45°C.
Figure 15
Figure 15
Digital images of aqueous suspensions of 0.5 wt.% MWCNT dispersed using GA sonicated for different times. (a) 2 min. (b) 7 min. (c) 10 min. (d) 20 min. (e) 30 min. (f) 40 min.
Figure 16
Figure 16
TEM images of samples (0.5 wt.% MWCNTs, 0.25 wt.% GA) at various sonication times. (a) 2 min. (b) 7 min. (c) 10 min. (d) 20 min. (e) 30 min. (f) 40 min.
