Review
. 2014 Feb 16:2014:845307.
doi: 10.1155/2014/845307. eCollection 2014.

Fault location based on synchronized measurements: a comprehensive survey

A H Al-Mohammed  1 , M A Abido  2
Affiliations
Review

Fault location based on synchronized measurements: a comprehensive survey

A H Al-Mohammed et al. ScientificWorldJournal. .

Abstract

This paper presents a comprehensive survey on transmission and distribution fault location algorithms that utilize synchronized measurements. Algorithms based on two-end synchronized measurements and fault location algorithms on three-terminal and multiterminal lines are reviewed. Series capacitors equipped with metal oxide varistors (MOVs), when set on a transmission line, create certain problems for line fault locators and, therefore, fault location on series-compensated lines is discussed. The paper reports the work carried out on adaptive fault location algorithms aiming at achieving better fault location accuracy. Work associated with fault location on power system networks, although limited, is also summarized. Additionally, the nonstandard high-frequency-related fault location techniques based on wavelet transform are discussed. Finally, the paper highlights the area for future research.

PubMed Disclaimer

Figures

Figure 1

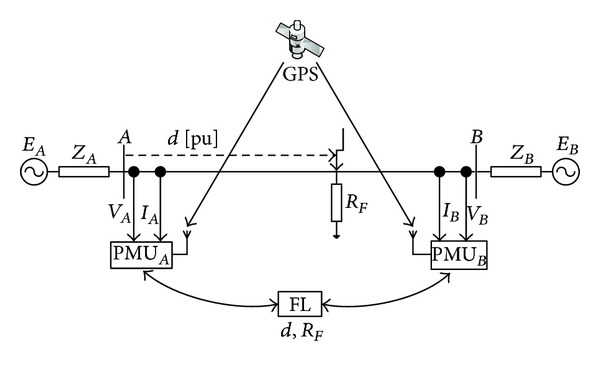

Figure 1
A schematic diagram for two-end synchronized fault-location arrangement using PMUs.
Figure 2

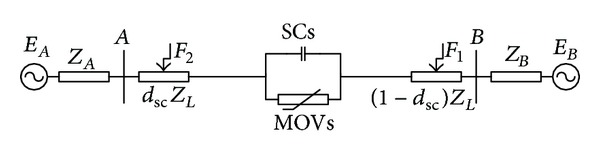

Figure 2
Single transmission line compensated with SCs and MOVs installed at midpoint.
Figure 3

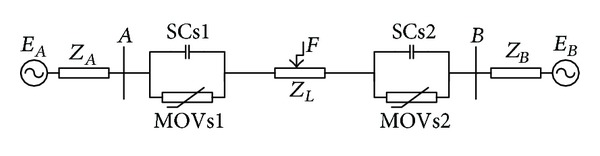

Figure 3
Transmission line compensated with SCs and MOVs installed at both ends.
Figure 4

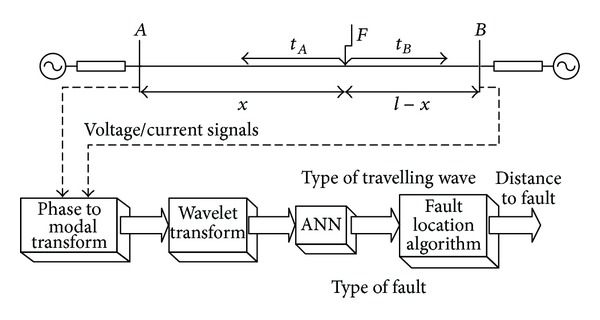

Figure 4
Illustration of a distorted voltage analysis using wavelet transform.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Kezunovic M, Perunicic B. Synchronized sampling improves fault location. IEEE Computer Applications in Power. 1995;8(2):30–33.
    1. Saha M, Izykowski J, Rosolowski E. Fault Location on Power Network. New York, NY, USA: Springer; 2010.
    1. Madani V. Western interconnection experience with phasor measurements. Proceedings of the IEEE PES Power Systems Conference and Exposition (PSCE '06); November 2006; pp. 343–352.
    1. Liu C-W, Su M-C, Tsay S-S. Application of a novel fuzzy neural network to real-time transient stability swings prediction based on synchronized phasor measurements. IEEE Transactions on Power Systems. 1999;14(2):685–692.
    1. Zhang N, Kezunovic M. A study of synchronized sampling based fault location algorithm performance under power swing and out-of-step conditions. Proceedings of the IEEE Russia Power Tech; June 2005; St. Petersburg, Russia.
