. 2014 Jan 4;70(Pt 2):o102.
doi: 10.1107/S1600536813034302. eCollection 2014 Feb 1.

N-(3-Chloro-1,4-dioxo-1,4-di-hydro-naph-thalen-2-yl)-N-propionylpropionamide

Nabil Idris  1 , Ray J Butcher  1 , Oladapo Bakare  1
Affiliations

N-(3-Chloro-1,4-dioxo-1,4-di-hydro-naph-thalen-2-yl)-N-propionylpropionamide

Nabil Idris et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title mol-ecule, C16H14ClNO4, the four essentially planar atoms of the imide group [r.m.s. deviation = 0.0286 (11) Å] form a dihedral angle of 77.36 (13)° with the naphtho-quinone group [maximun deviation = 0.111 (2) Å for the carbonyl O atom in the naphthalene 1-position] and the two imide carbonyl groups are oriented anti with respect to each other. In the crystal, mol-ecules are connected by weak C-H⋯O hydrogen bonds, as well as π-π stacking inter-actions [centroid-centroid distance = 3.888 (3) Å], forming a three-dimensional network.

PubMed Disclaimer

Figures

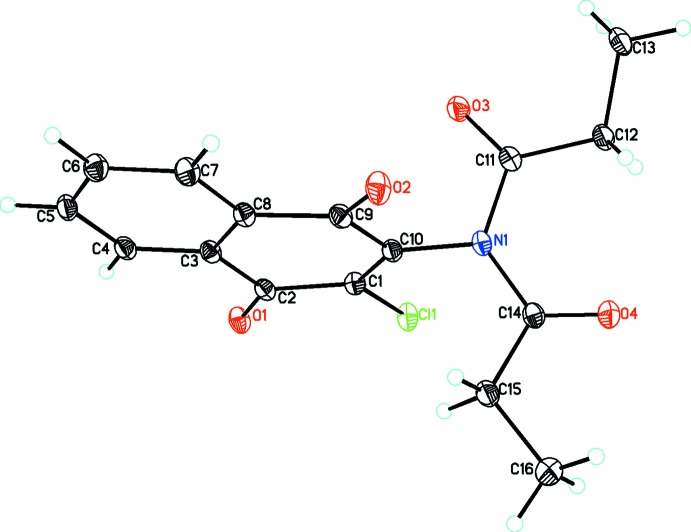

Fig. 1.
Fig. 1.
The molecular structure of the title compound with displacement parameters shown at the 30% probability level.
Fig. 2.
Fig. 2.
The crystal packing viewed along the a axis showing the weak C—H···O hydrogen bonds (as dashed lines) as well as the π–π stacking along the b axis.
See this image and copyright information in PMC

References

    1. Agilent (2012). CrysAlis PRO and CrysAlis RED Agilent Technologies, Yarnton, England.
    1. Bakare, O., Ashendel, C. L., Peng, H., Zalkow, L. H. & Burgess, E. M. (2003). Bioorg. Med. Chem 11, 3165–3170. - PubMed
    1. Berhe, S., Kanaan, Y., Copeland, R. L., Wright, D. A., Zalkow, L. H. & Bakare, O. (2008). Lett. Drug Des. Discov 5, 485–488.
    1. Brandy, Y., Brandy, N., Akinboye, E., Lewis, M., Mouamba, C., Mack, S., Butcher, R. J., Anderson, A. J. & Bakare, O. (2013). Molecules, 18, 1973–1984. - PMC - PubMed
    1. Butcher, R. J., Berhe, S., Anderson, A. J. & Bakare, O. (2013). Acta Cryst. E69, o1230. - PMC - PubMed
