. 2014 Feb 5;70(Pt 3):m78.
doi: 10.1107/S1600536814002074. eCollection 2014 Mar 1.

Bis(acetato-κO)bis-(thio-urea-κS)cobalt(II)

Martin Lutz  1
Affiliations

Bis(acetato-κO)bis-(thio-urea-κS)cobalt(II)

Martin Lutz. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The title compound, [Co(CH3COO)2(CH4N2S)2], is isotypic with the corresponding Zn(II) complex. The metal atom is in a distorted tetra-hedral coordination environment with the two S atoms from two thio-urea ligands and two O atoms from two acetate anions as the coordinating atoms. All H atoms of the thio-urea ligands are involved in N-H⋯O and N-H⋯S hydrogen bonds, leading to a three-dimensional network.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
: Molecular structure of the title compound. Displacement ellipsoids are drawn at the 50% probability level. H atoms are drawn as small spheres of arbitrary radii. Only the major conformations of the rotationally disordered methyl groups are shown.

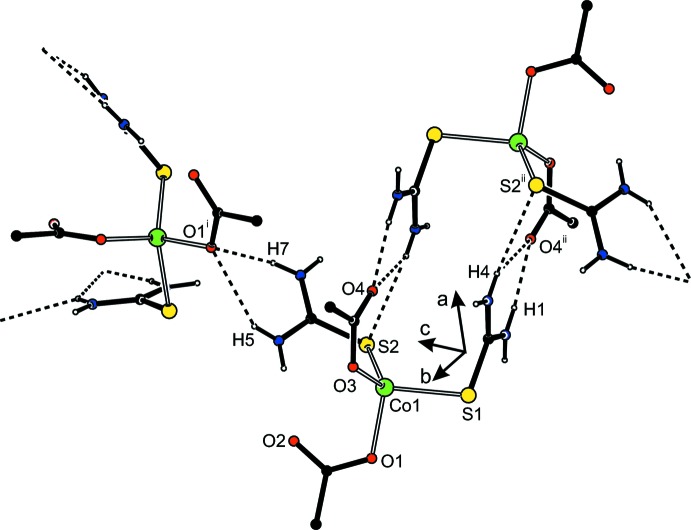

Fig. 2.
Fig. 2.
: Hydrogen bonds involving the bifurcated acceptor atoms O1 and O4, and the bifurcated donor atom H4. Overall, the crystal structure consists of a three-dimensional hydrogen bonded network. Methyl H atoms are omitted in the drawing. Symmetry codes: (i) x + 1, 1/2 - y, z + 1/2; (ii) 1 - x, -y, -z.
See this image and copyright information in PMC

References

    1. Bruker (2007). APEX2 Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cavalca, L., Gasparri, G. F., Andreetti, D. & Domiano, P. (1967). Acta Cryst. 22, 90–98.
    1. Robinson, K., Gibbs, G. V. & Ribbe, P. H. (1971). Science, 172, 567–570. - PubMed
    1. Schreurs, A. M. M. (2013). Peakref Utrecht University, The Netherlands.
    1. Schreurs, A. M. M., Xian, X. & Kroon-Batenburg, L. M. J. (2010). J. Appl. Cryst. 43, 70–82.
