. 2014 Apr 12;70(Pt 5):o541-2.
doi: 10.1107/S1600536814006990. eCollection 2014 May 1.

1'-Allyl-1-(3,4-di-methyl-benzo-yl)-2-(4-methyl-1,3-thia-zol-5-yl)-1,2,5,6,7,7a-hexa-hydro-spiro-[pyrrolizine-3,3'-indolin]-2'-one

V Karthikeyan  1 , V Ramkumar  2 , R Joel Karunakaran  1
Affiliations

1'-Allyl-1-(3,4-di-methyl-benzo-yl)-2-(4-methyl-1,3-thia-zol-5-yl)-1,2,5,6,7,7a-hexa-hydro-spiro-[pyrrolizine-3,3'-indolin]-2'-one

V Karthikeyan et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C30H31N3O2S, the fused pyrrolidine ring bearing three substituents adopts an envelope conformation with the C atom bearing the benzoyl group as the flap. The other fused pyrrolidine ring adopts a twisted conformation about one of its C-C bonds. The dihedral angle between the isatin ring system and the methyl-thia-zole ring is 25.95 (8)°. An intra-molecular C-H⋯O inter-action closes an S(8) ring. In the crystal, mol-ecules are linked by C-H⋯O inter-actions, generating C(11) chains propagating in [001].

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

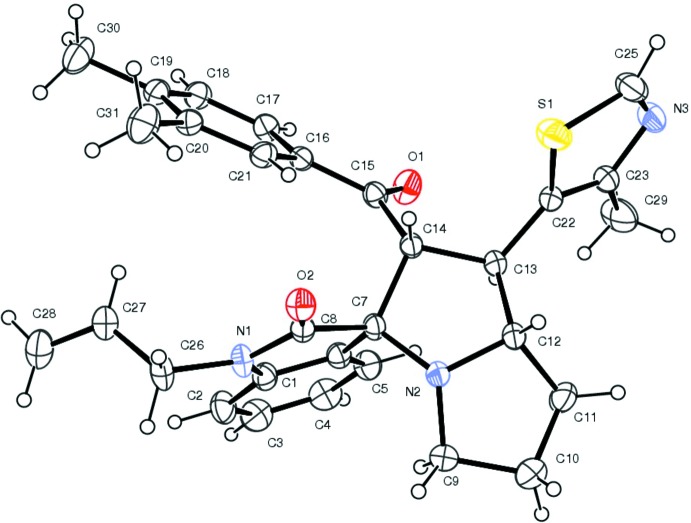

ORTEP of the molecule with atoms represented as 30% probability ellipsoids.
Fig. 2.
Fig. 2.
Packing diagram showing the C—H···O interaction along the C-axis
See this image and copyright information in PMC

References

    1. Amal Raj, A., Raghunathan, R., Sridevi Kumari, M. R. & Raman, N. (2003). Bioorg. Med. Chem. 11, 407–409. - PubMed
    1. Bruker (2004). APEX2, SAINT-Plus and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cuzzocrea, S., Chatterjee, P. K., Mazzon, E., Dugo, L., Serraino, I., Britti, D., Mazzullo, G., Caputi, A. P. & Thiemermann, C. (2002). Br. J. Pharmacol. 135, 496–510. - PMC - PubMed
    1. Dandia, A., Singh, R., Bhaskarana, S. & Samant, S. D. (2011). Green Chem. 13, 1852–1859.
    1. Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854.
