. 2014 May 17;70(Pt 6):o665.
doi: 10.1107/S1600536814009040. eCollection 2014 Jun 1.

7,7-[Ethane-1,2-diylbis(oxy)]-2-[hydroxy(phenyl)methyl]bicyclo[3.3.1]nonan-3-one

Jian Li  1 , Jia Qi Ma  1 , Wei Min Mo  1 , Zhen Lu Shen  1
Affiliations

7,7-[Ethane-1,2-diylbis(oxy)]-2-[hydroxy(phenyl)methyl]bicyclo[3.3.1]nonan-3-one

Jian Li et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C18H22O4, the cyclo-hexane and cyclo-hexa-none rings adopt normal chair and half-chair conformations, respectively. The dioxolane ring is almost planar, with an r.m.s. deviation of 0.094 (3) Å. In the crystal, mol-ecules are connected by O-H⋯O hydrogen bonds, forming 21 helical chains along the a-axis direction. The chains are further connected by C-H⋯O hydrogen bonds.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

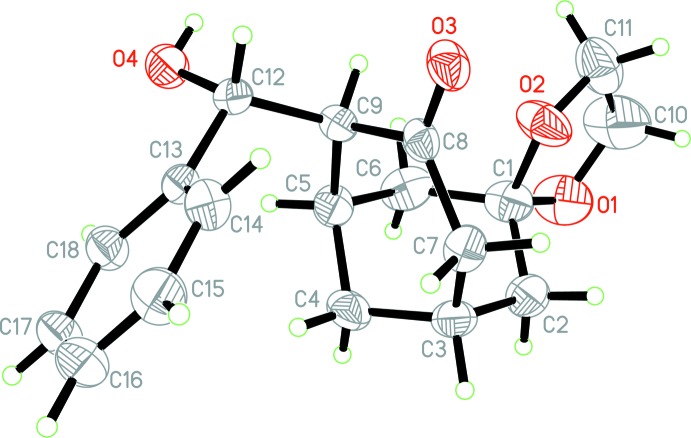

The molecular structure of the title compound with atom labels, showing 40% probability displacement ellipsoids.
Fig. 2.
Fig. 2.
The packing diagram of the title compound viewed down along the a axis. O—H···O hydrogen bonds are shown by thin dashed lines.
See this image and copyright information in PMC

References

    1. Bruker (2000). SMART, SAINT and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Li, W., LaCour, T. G. & Fuchs, P. L. (2002). J. Am. Chem. Soc. 124, 4548–4549. - PubMed
    1. Lopez-Alvarado, P., Garcia-Granda, S., Alvarez-Rua, C. & Avendano, C. (2002). Eur. J. Org. Chem. pp. 1702–1707.
    1. Shallard-Brown, H. A., Watkin, D. J. & Cowley, A. R. (2005). Acta Cryst. E61, o2424–o2425.
    1. Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. - PubMed
