Conservation of Ca2+/calmodulin regulation across Na and Ca2+ channels

Abstract

Voltage-gated Na and Ca2+ channels comprise distinct ion channel superfamilies, yet the carboxy tails of these channels exhibit high homology, hinting at a long-shared and purposeful module. For different Ca2+ channels, carboxyl-tail interactions with calmodulin do elaborate robust and similar forms of Ca2+ regulation. However, Na channels have only shown subtler Ca2+ modulation that differs among reports, challenging attempts at unified understanding. Here, by rapid Ca2+ photorelease onto Na channels, we reset this view of Na channel regulation. For cardiac-muscle channels (NaV1.5), reported effects from which most mechanistic proposals derive, we observe no Ca2+ modulation. Conversely, for skeletal-muscle channels (NaV1.4), we uncover fast Ca2+ regulation eerily similar to that of Ca2+ channels. Channelopathic myotonia mutations halve NaV1.4 Ca2+ regulation, and transplanting the NaV1.4 carboxy tail onto Ca2+ channels recapitulates Ca2+ regulation. Thus, we argue for the persistence and physiological relevance of an ancient Ca2+ regulatory module across Na and Ca2+ channels.

Figure 1. Homology but divergent function for Ca²⁺versus Na channels

(A) CI region of Ca²⁺ (Ca_V1.3) and Na channels (Na_V1.5, Na_V1.4). Dual vestigial EF-hands shaded in rose and green. IQ domain, blue. (B) Ca²⁺ channel regulation inducible by channel Ca²⁺ influx. Ba²⁺ influx as negative control. (C) Left, Ca_V1.3 current traces carried by Ca²⁺(red) or Ba²⁺(black). Vertical bar for Ca²⁺ trace. Ba²⁺ trace scaled ~3× downward for kinetic comparison. Right, r₃₀₀ (fraction of peak current remaining after 300-ms depolarization) versus V_test potential, plotted as mean ± SEM (8 cells). (D) Na channels characterized under pipet dialysis with 0 or 10 µM Ca²⁺. (E) Schematic of reported Ca²⁺ effects on inactivation. Left, h_∞, fractional current remaining after prepulses (V_hold). Right, purported Ca²⁺-induced voltage shifts of h_∞. (F) Na_V1.5 currents under protocol in panel E (black, 0 Ca²⁺; red, 10 µMCa²⁺buffered with HEDTA). See Figure S1. (G, H) Normalized form of h_∞ unaffected by Ca²⁺. Potential Ca²⁺-induced reduction in Na_V1.4 h_∞ (rose dashed line). Error bars, SEM throughout. Fit function: h_∞ = 1 / (1 + exp ((V_hold – V_1/2) / SF), where SF = 6.2 (Na_V1.4) and 7.5 (Na_V1.5).

Figure 2. CDI of Na channels under Ca²⁺photouncaging

(A) Na_V1.5 currents unaffected by 10 µM Ca²⁺. Gray dots, peak currents before uncaging. Bottom, mean data for CDI versus Ca²⁺-step amplitude.CDI = 1 – average peak I_Na of last 3–4 responses after Ca²⁺ uncaging / peak I_Na before uncaging. Symbols, mean ± SEM of ~5 uncaging events compiled from 23 cells. See Figure S2. (B) Na_V1.4 peak currents decline during 2 µM Ca²⁺ step (rose fit). Format as in panel A. Bottom, mean CDI plotted versus Ca²⁺. Each symbol, mean ± SEM of ~5 uncaging events compiled from 35 cells. See Figures S2–S4. (C) Na_V1.4 currents specifying h_∞ at ~100 nM Ca²⁺. Bottom, h_∞ curve (mean ± SEM, 5 cells). (D)~3 µM Ca²⁺ step uniformly suppresses Na currents. Bottom, corresponding mean h_∞ curve (red symbols and fit), where symbols plot mean ± SEM (5 cells). Upwardly scaled h_∞ curve (rose) same as before uncaging (black).

Figure 3. Na channel regulated by Ca²⁺spill over from Ca²⁺ channels

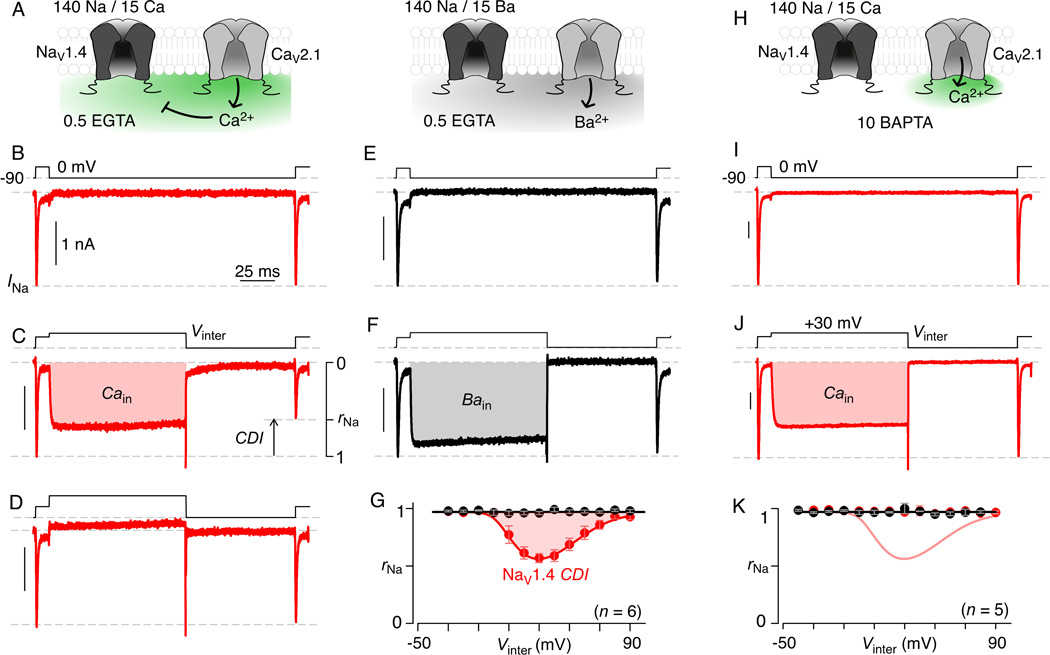

(A) Schematic, Ca²⁺ spill over from Ca_V2.1 inhibiting Na channels. (B) Dual voltage-pulses selectively evoke identical Na_V1.4 currents. See Figure S5. (C) Intervening +30 mV pulse (V_inter) activates Ca_V2.1, diminishing ensuing Na current. r_Na, fraction of Na current remaining after Ca_V2.1 Ca²⁺ influx. (D) V_inter to +90 mV rescues the second Na_V1.4 current. (E, F) Na current amplitude unperturbed by Ba²⁺ influx through Ca_V2.1 channels. (G) Mean relation for r_Na versus V_inter shows U-shape with Ca²⁺ (red) but not Ba²⁺ (black). Symbols, mean ± SEM (6 cells). (H–K) Restricting Ca²⁺ to Ca_V2.1nanodomain prevents Na channel CDI. Panel K, symbols, mean ± SEM (5 cells), format as in panel G. See Figure S5.

Figure 4. Multi-channel stochastic records of Na_V1.4 CDI

(A) Multi-channel records from HEK293 cells coexpressing Na_V1.4 and Ca_V2.1 channels. On-cell patch configuration. Voltage protocol (top), multi-channel record (middle), and ensemble average current (bottom). Red shading, Ca²⁺ entry. Ensemble average shows reduced Na channel activity after Ca²⁺ entry (pulse ii) versus before (pulse i). (B) Amplitude histogram analysis of patch from panel A shows no change in unitary current following Ca²⁺ entry (top before interpulse; bottom after interpulse). Amplitude histogram analysis of events occuring 0.5–17 m sec after pulse onset during −30 mV test pulses. Fits (black) to data (gray) derived from amplitude analysis of low-pass filtered stochastic channel simulations with added gaussian noise. Dashed-red lines, unitary current i used to generate fits. (C) Expanded time base display of ensemble average currents from panel A, before (upper) and after (below) Ca²⁺. Fast inactivation essentially identical; same time constant for both mono exponential fits (black curves). (D) Multi-channel stochastic records of separate patch with only Na_V1.4 channels. No difference in channel activity before and after intervening pulse (mean decrement ~ 0.2 ± 3% (mean ± SEM, n = 5 patches). Second multi-channel record chosen to illustrate rare occurrence of persistent gating mode. Format as in panel A.

Figure 5. Calmodulin as Ca²⁺ sensor for Na_V1.4CDI

(A) Mutating putative Ca²⁺-coordinating residues in Na_V1.4 EF-hand did not alter CDI. Format as in Figure 2A. Symbols, mean ± SEM of ~3 uncaging events from 12 cells. (B) CaM₁₂₃₄ abolishes CDI. Symbols, mean ± SEM (~6 uncaging events from 27 cells). (C) Eliminating N-lobe Ca²⁺-binding (CaM₁₂) abolishes CDI. Symbols, mean ± SEM of 4–5 uncaging events from 12 cells. (D) Eliminating C-lobe Ca²⁺ binding (CaM₃₄) spares CDI. Symbols, mean ± SEM of ~5 uncaging events from 12 cells. (E) Mutating Na_V1.4 III–IV loop spares CDI. Format as in Figure 2A. Symbols, mean ± SEM of 4–5 uncaging events from 18 cells. (F) No CDI in Na_V1.4–1.5CT chimera. Symbols, mean ± SEM of 4–5 uncaging events (13 cells). (G) Substituting dual alanines for key isoleucine-glutamine residues in Na_V1.4 IQ domain yields facilitating Na currents. Bottom, mean data confirms facilitation, shown as negative CDI. Symbols, mean ± SEM of ~13 uncaging events (20 cells).

Figure 6. Physiology of Na channel Ca²⁺ regulation

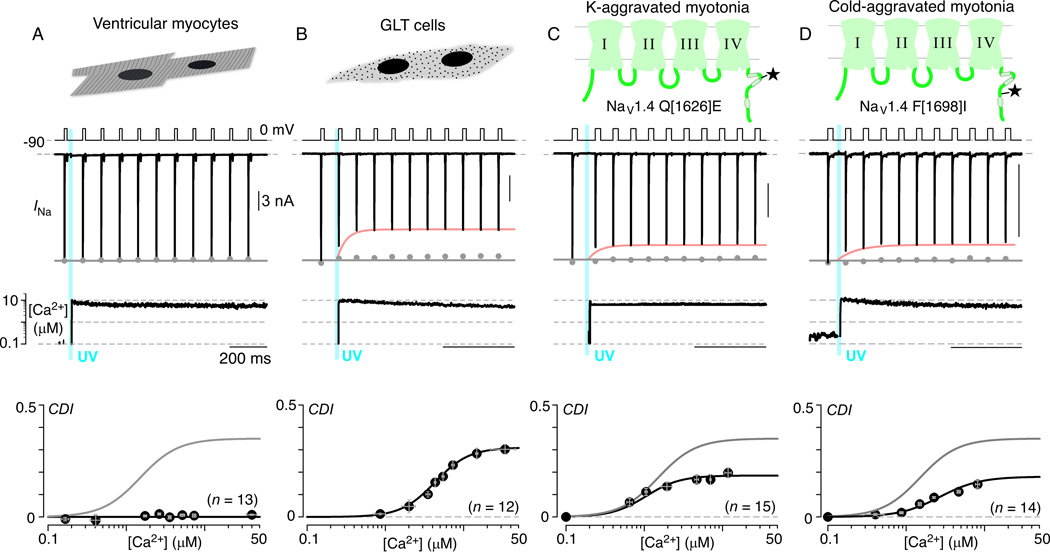

(A) No Ca²⁺-regulation of native Na_V1.5 in ventricular myocytes. Format as in Figure 2A. Symbols, mean ± SEM from 5–6 uncaging events (13 cells). (B) Endogenous Na_V1.4 channels in GLT cells exhibit CDI. Minimal contamination by Ca²⁺-activated Cl current (<5% of I_Na) subtracted. Each symbol, mean ± SEM from 4–5 uncaging events (12 cells). (C, D) Recombinant Na_V1.4 channels with mutations for K- and cold-aggravated myotonias show weaker CDI. Symbols, mean ± SEM from ~9 uncaging events (indicated number of cells).

Figure 7. Persistence of CaM/CI module across Na and Ca²⁺channel superfamilies
