Nom1 mediates pancreas development by regulating ribosome biogenesis in zebrafish

Abstract

Ribosome biogenesis is an important biological process for proper cellular function and development. Defects leading to improper ribosome biogenesis can cause diseases such as Diamond-Blackfan anemia and Shwachman-Bodian-Diamond syndrome. Nucleolar proteins are a large family of proteins and are involved in many cellular processes, including the regulation of ribosome biogenesis. Through a forward genetic screen and positional cloning, we identified and characterized a zebrafish line carrying mutation in nucleolar protein with MIF4G domain 1 (nom1), which encodes a conserved nulceolar protein with a role in pre-rRNA processing. Zebrafish nom1 mutants exhibit major defects in endoderm development, especially in exocrine pancreas. Further studies revealed that impaired proliferation of ptf1a-expressing pancreatic progenitor cells mainly contributed to the phenotype. RNA-seq and molecular analysis showed that ribosome biogenesis and pre-mRNA splicing were both affected in the mutant embryos. Several defects of ribosome assembly have been shown to have a p53-dependent mechanism. In the nom1 mutant, loss of p53 did not rescue the pancreatic defect, suggesting a p53-independent role. Further studies indicate that protein phosphatase 1 alpha, an interacting protein to Nom1, could partially rescue the pancreatic defect in nom1 morphants if a human nucleolar localization signal sequence was artificially added. This suggests that targeting Pp1α into the nucleolus by Nom1 is important for pancreatic proliferation. Altogether, our studies revealed a new mechanism involving Nom1 in controlling vertebrate exocrine pancreas formation.

Figure 1. dg5 mutant has an endodermal and craniofacial defect.

(A, B) Lateral and (G, H) dorsal views of live Wild Type (WT) sibling and dg5 larvae at 3 dpf. Smaller head and eyes can be seen (arrowhead in A, B). Impaired yolk absorption is apparent in dg5 mutant at 3 dpf (arrows in G, H). (C–F, I–L) All dorsal views, anterior to the left. At 3 dpf, the expression of trypsin (try) is markedly reduced in dg5 mutant (D) as compared to WT group (C). The intestine marker fatty acid binding protein 2 (ifabp) expression reveals that the intestine is thinner in dg5 larvae (E) as compared to WT group (F) at 3.5 dpf. The expression of ceruloplasmin (cp) shows that the liver is smaller in dg5 mutant (H) as compared to WT group (I) at 3 dpf. As compared to control group (K), craniofacial development is abnormal in dg5 larvae (L) by alcian blue staining at 4 dpf.

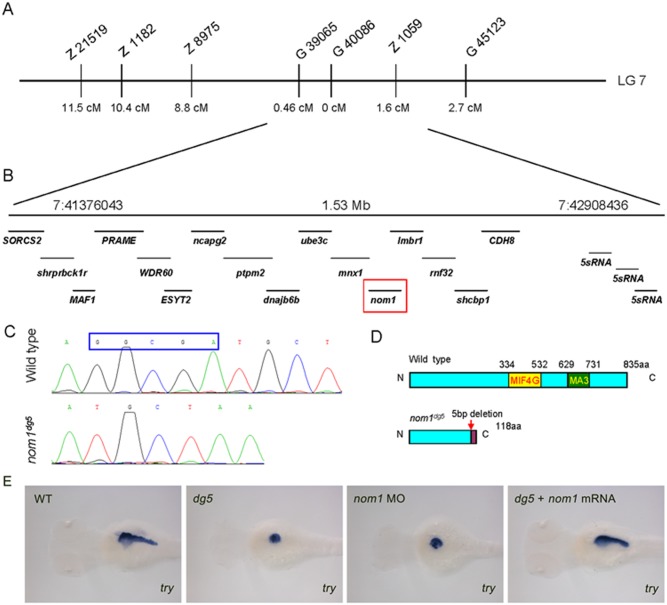

Figure 2. dg5 encodes zebrafish nom1.

(A) Chromosome 7 is linked to the dg5 locus, the cM distance of different SSLP markers to dg5 locus is marked. (B) The region between markers G39065 and Z1059, contains 16 annotated genes (B). (C) Sequencing shows that nom1 from dg5 mutant has a 5-bp nucleotide deletion, producing a truncated nom1 protein. (E) nom1 ATG-MO injected embryos show the same decreased try expression level as compared to dg5 mutant and zebrafish nom1 mRNA can rescue try expression. Dorsal views, anterior to the left.

Figure 3. Nom1 expression in the developing zebrafish.

(A–D) Lateral views, anterior to the left. (E, F) Dorsal views, anterior to the top. (A) nom1 has a strong maternal expression at 4-cell stage. (B–C) Non-specific ubiquitous nom1 expression is evident at 10-somite stage and 1 dpf. (D, E) At 2 dpf, nom1 expression in brain and liver is more apparent. (F) In addition to brain, nom1 is strongly expressed in pancreas and weakly in intestine at 3 dpf. (G) RT-PCR analysis shows that nom1 transcript is present at all embryonic stages.

Figure 4. Nom1 is indispensable for pancreas proliferation but not for specification.

(A–F) Dorsal views, anterior to the top. (A, B) Expression of prox1 (D, E) and pdx-1 (C, F) in the nom1 morphants is comparable to that in WT embryos at 36 hpf but reduced gata6 expression in liver (arrow) and pancreas (arrowhead) of nom1 morphants is obvious. (G) Anti-phospho Histone H3 (pH 3) staining for control and nom1 morphant embryos at 3 dpf. Red: GFP staining. Green: pH 3 staining. The signal of pH 3 staining in the pancreas of morphants is recognizably decreased. (H) Quantification of pH 3-positive cell numbers. Data were collected from 10 embryos. Error bars mean±SD. **P<0.01.

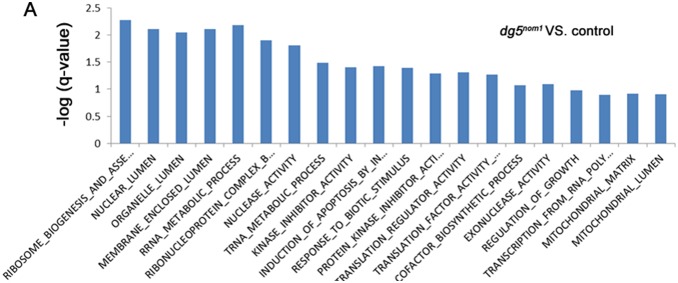

Figure 5. Enrichment analysis of differentially expressed genes in dg5^nom1 mutant.

The mostly enriched GO categories for genes upregulated in dg5^nom1 embryos as compared to control embryos. GO categories are ranked by their q-value.

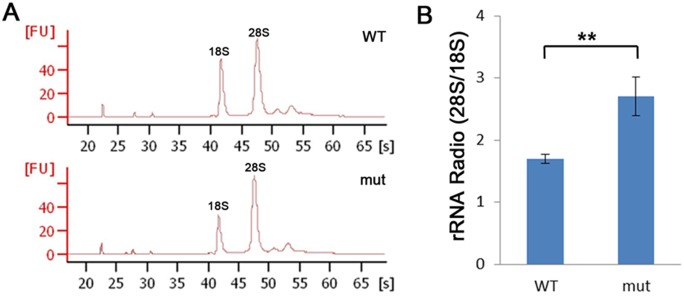

Figure 6. dg5^nom1 larvae display defects in ribosome biogenesis.

(A) Bioanalyser analysis of total RNA isolated from WT and mutant group at 3 dpf reveals a reduction of the 18S rRNA production but relative normal 28S rRNA amount. (B) The relative rRNA ratio (28S/18S) is elevated in the dg5^nom1 as compared to WT. Error bars mean±SD. **P<0.01.

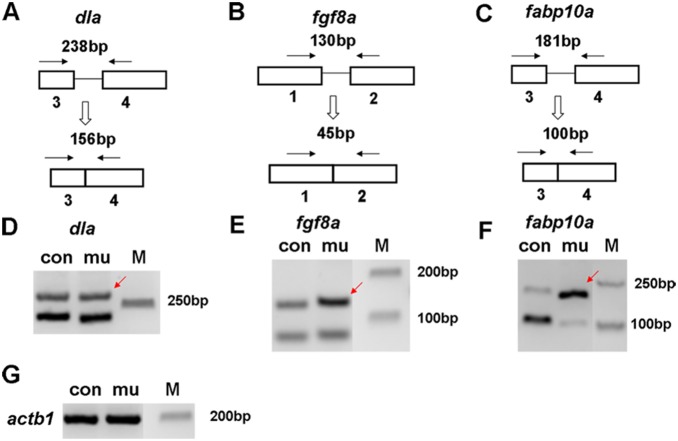

Figure 7. Pre-mRNA splicing of selected genes in dg5 mutant.

(A–C) Schematic illustration of pre-mRNA splicing analysis of dla, fgf8 and fabp10a (arrows: primers; boxes: exons; lines: introns). (D–F) Splicing status of dla, fgf8 and fabp10a by RT-PCR using primers indicated in A–C. (G) actb1 is a loading control in each group.

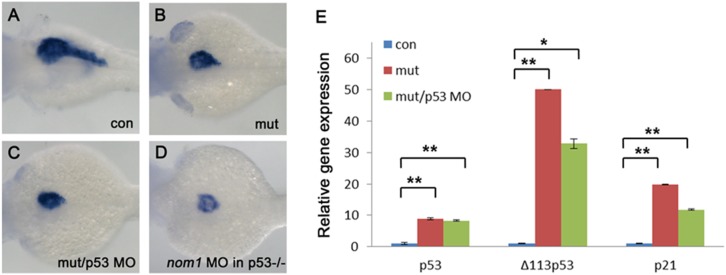

Figure 8. Nom1-induced pancreas defect is p53 independent.

(A–D) Lateral views, anterior to the left. (A) control group at 3 dpf. (B) dg5 mutant group at 3 dpf. (C) Failure to rescue the pancreas defect by injection of 4 ng p53MO into dg5 mutant or (D) injection of nom1 MO in p53^M214K mutant. (E) Expression of p53 and its targets Δ1113p53 and p21 are increased in dg5^nom1 mutant, as assessed by quantitative PCR. Error bars mean±SD. **P<0.01, *P<0.05.

Figure 9. NoLS-pp1α-EGFP mRNA partially rescues the pancreas defect in nom1 morphant.

(A) Schematic diagram of NoLS-pp1α-EGFP. Red: human nom1 NoLS. Blue: pp1α coding sequence. Green: EGFP coding sequence. (B) In situ result demonstrates that pp1α expresses in brain, liver, pancreas and intestine at 3 dpf. (C) Co-injection of NoLS-pp1α-EGFP mRNA and nom1 MO partially restores try expression as compared to nom1 morphant. (D) The percentage of embryos with relatively normal exocrine pancreas size is statistically higher in nom1 MO and NoLS-pp1α-EGFP co-injection group.
