Micro-sized erosions in a nanofilled composite after repeated acidic beverage exposures: consequences of clusters dislodgments

Abstract

Objective: To evaluate the hardness (KHN), color stability (DE), and superficial micromorphology of two categories of composites after immersion in either distilled water or grape juice for up to 45 days.

Material and methods: Cylindrical specimens (6 mm diameter x 2 mm thick) were obtained according to the factors: composite [Opallis (FGM) and Filtek Z350XT (3M ESPE)]; immersion solution (distilled water and grape juice); and evaluation time: 24 h and 7, 14, 21, 28, and 45 days. After photoactivation, the specimens were stored at 37 ºC for 24 h. KHN (50 g/15 s) and ΔE were then repeatedly assessed according to the immersion solutions. Data were analyzed (three-way ANOVA/Tukey's test). Scanning electron microscopy (SEM) topographic analysis was also performed.

Results: In general, KHN of both composites reduced after 24 h, irrespective of the immersion solution and time. A significantly lower KHN was noted for Opallis compared with Filtek Z350XT in all parameters. An increase in ΔE over time was noted for both composites, irrespective of the immersion solution. Significantly higher ΔE was noted for Filtek Z350XT immersed in grape juice compared with Opallis, regardless of the evaluation time. The grape juice caused significantly higher DE compared with water in all periods. SEM analysis showed eroded areas for Filtek Z350XT but not for Opallis.

Conclusions: The compositions and immersion solutions influence the composite hardness and the color stability. In spite of the higher hardness, the nanofilled composite is more susceptible to color change than the microhybrid when immersed in an acidic dyed solution.

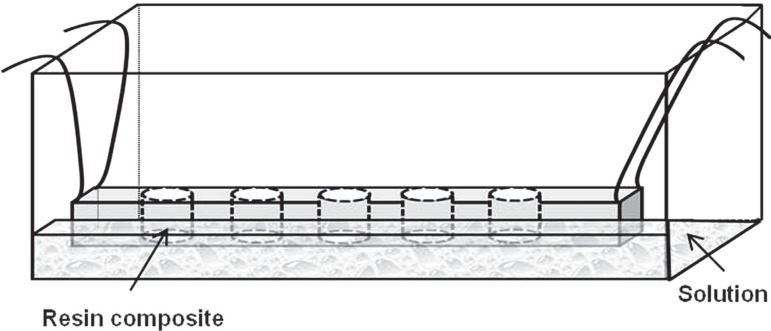

Figure 1

Schematic representation of the ethylene vinyl acetate (EVA) sheet rack used for the color change evaluation

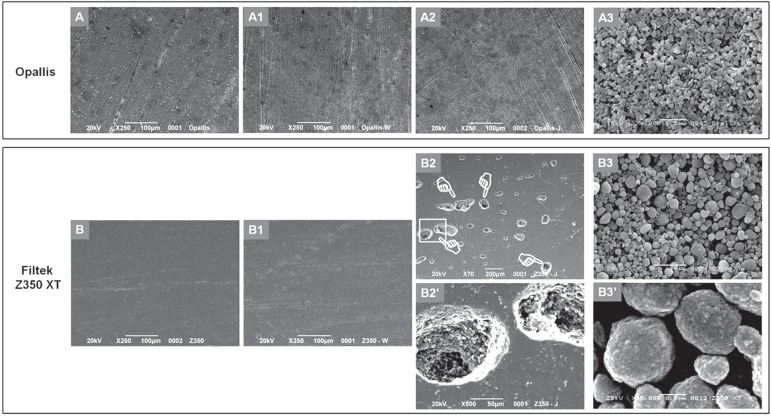

Figure 3

Representative scanning electron microscopy (SEM) images of the topographic aspect of the composites Opallis (control – A, water – A1; grape juice – A2) and Filtek Z350 XT (control – B; water – B1; grape juice – B2 and B2'), and the morphologic characteristics of the inorganic fillers of both materials (Opallis – A3; Z350XT – B3 and B3'). The topographic aspect of the composite Opallis after storage in water or grape juice is similar to that of observed for the control group. For Filtek Z350XT, the topographic aspect of the resin composite after storage in water is similar to that of observed in the control group, but several eroded areas with loss of material due to filler dislodgement and/or matrix degradation are noted after storage in the grape juice, showing irregularities in the topographic aspect of holes (pointer) (B2' is a higher magnification of the region delimited by a rectangle in the image B2). The Opallis composite exhibited irregular microfillers (A3), whereas the Filtek Z350XT composite showed rounded nanofillers (B3) arranged in clusters (B3')
