. 2014 Sep;13(3):253-8.
doi: 10.1007/s12663-013-0524-5. Epub 2013 May 3.

Computerized cephalometric study of the pharyngeal airway space in patients submitted to orthognathic surgery

Eduardo Sanches Gonçales  1 , Julierme Ferreira Rocha  2 , Andréa Guedes Barreto Gonçales  3 , Renato Yassutaka Faria Yaedú  1 , Eduardo Sant'Ana  1
Affiliations

Computerized cephalometric study of the pharyngeal airway space in patients submitted to orthognathic surgery

Eduardo Sanches Gonçales et al. J Maxillofac Oral Surg. 2014 Sep.

Abstract

Introduction: Pharynx is a muscular organ with is sustained by craniofacial bones. It is divided into nasal, oral and hipopharynx, and can be considered as a tube that serves both respiratory and digestive systems. Its anatomical morphology permits that factors facilitate its obstruction, leading to the sleep apnea syndrome. One of the treatment consists of surgical mandibular advancement, increasing pharyngeal dimensions. The aim of this study was evaluate the cephalometric changes in the pharyngeal airway space after orthognathic surgery procedures for correction of mandibular prognathism.

Materials and methods: Pre and post-operative cephalometric analysis was performed on 19 patients submitted to mandibular setback by mandibular bilateral sagittal split osteotomy associated with maxillary advancement by Le Fort I osteotomy, using the Dolphin Imaging 10.0 software.

Results: Results did not reveal statistically significant changes in the upper (nasopharyngeal), middle (oropharyngeal) and lower (hypopharyngeal) airway spaces, but showed increase in the nasal pharynx due the maxillary advancement and a lower position of the hyoid bone due the mandibular setback.

Discussion: Maxillomandibular orthognathic surgery for correction of mandibular prognathism does not seem to statistically significantly change the pharyngeal airway space, but it increases the maxillary airway.

Conclusion: It seems to be important to consider the double jaw surgery in cases of mandibular prognathism, aiming prevention of a possible reduction of whole upper airway.

Keywords: Airway space; Mandibular setback; Maxillary advancement; Sleep apnea.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Cephalogram digitized with the specific transparent ruler of the Dolphin Imaging 10.0 software
Fig. 2
Fig. 2

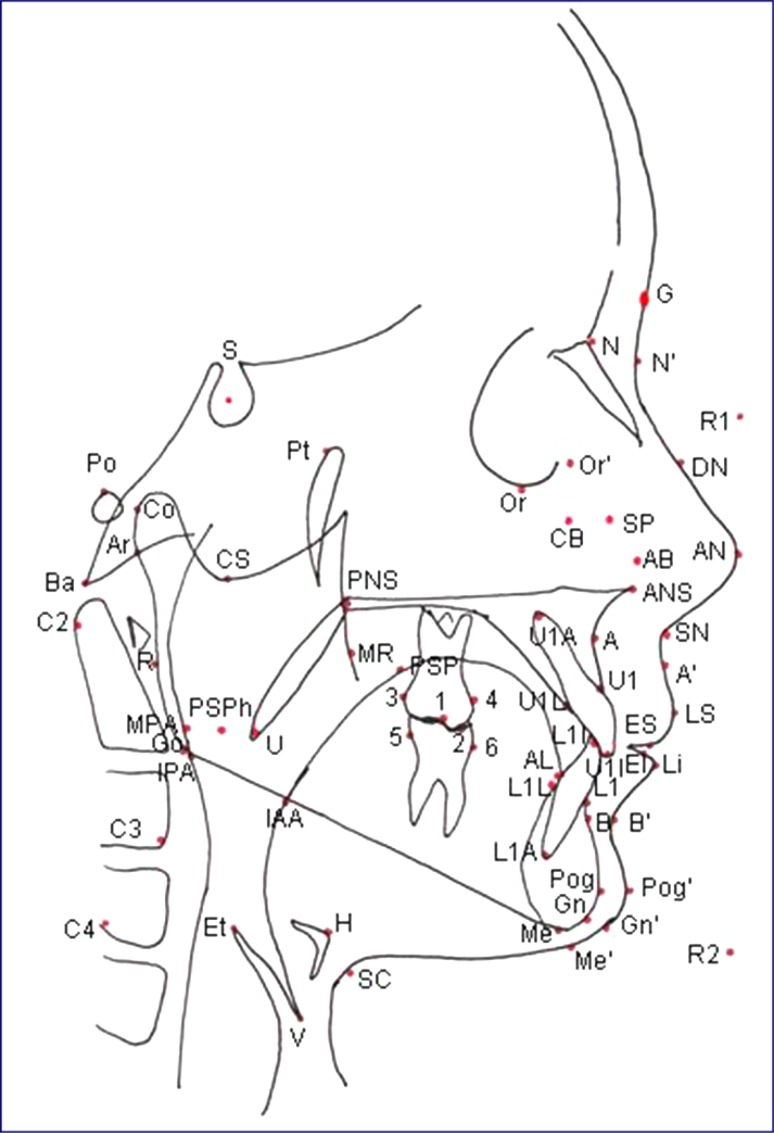

Schematic representation of cephalometric points employed
See this image and copyright information in PMC

References

    1. Schwab RJ, Gupta KB, Gefter WB, Metzger LJ, Hoffman EA, Pack AI. Upper airway and soft tissue anatomy in normal subjects and patients with sleep-disordered breathing. Am J Respir Crit Care Med. 1995;152:1673–1689. doi: 10.1164/ajrccm.152.5.7582313. - DOI - PubMed
    1. Thornton WK (1998) Should the dentist independently assess and treat sleep-disordered breathing? CDA J 26:599–608 - PubMed
    1. Barsh LI (1998) Dentistry’s role in the recognition and treatment of sleep-breathing disorders: the need for cooperation with the medical community. CDA J 26:591–596 - PubMed
    1. Robertson CJ (2000) The effect of long-term mandibular advancement on the hyoid bone and pharynx as it relates to the treatment of obstructive sleep apnoea. Aust Orthod J 16:157–166 - PubMed
    1. Pae EK, Blasius JJ, Nanda R. Heterogeneity in vertical positioning of the hyoid bone in relation to genioglossal activity in men. Angle Orthod. 2004;74:343–348. - PubMed
