. 2014 Sep;148(3):1065-72, 1073e1-2; discussion1072-3.
doi: 10.1016/j.jtcvs.2014.05.070. Epub 2014 Jun 7.

Safety and efficacy of high-dose adeno-associated virus 9 encoding sarcoplasmic reticulum Ca(2+) adenosine triphosphatase delivered by molecular cardiac surgery with recirculating delivery in ovine ischemic cardiomyopathy

Michael G Katz  1 , Anthony S Fargnoli  1 , Richard D Williams  1 , Nury M Steuerwald  2 , Alice Isidro  1 , Anna V Ivanina  3 , Inna M Sokolova  3 , Charles R Bridges  4
Affiliations

Safety and efficacy of high-dose adeno-associated virus 9 encoding sarcoplasmic reticulum Ca(2+) adenosine triphosphatase delivered by molecular cardiac surgery with recirculating delivery in ovine ischemic cardiomyopathy

Michael G Katz et al. J Thorac Cardiovasc Surg. 2014 Sep.

Abstract

Objective: Therapeutic safety and efficacy are the basic prerequisites for clinical gene therapy. We investigated the effect of high-dose molecular cardiac surgery with recirculating delivery (MCARD)-mediated adeno-associated virus 9 (AAV9)/sarcoplasmic reticulum Ca(2+) adenosine triphosphatase (SERCA2a) gene delivery on clinical parameters, oxidative stress, humoral and cellular immune responses, and cardiac remodeling.

Methods: Ischemic cardiomyopathy was generated in a sheep model. The sheep were assigned to 1 of 2 groups: control (n = 10) and study (MCARD, n = 6). The control group underwent no intervention and the study group received 10(14) genome copies of AAV9/SERCA2a 4 weeks after infarction.

Results: Our ischemic model produced reliable infarcts leading to heart failure. The baseline ejection fraction in the MCARD group was 57.6% ± 1.6% versus 61.2% ± 1.9% in the control group (P > .05). At 12 weeks after infarction, the MCARD group had superior left ventricular function compared with the control group: stroke volume index, 46.6 ± 1.8 versus 35.8 ± 2.5 mL/m(2) (P < .05); ejection fraction, 46.2% ± 1.9% versus 38.7% ± 2.5% (P < .05); and left ventricular end-systolic and end-diastolic dimensions, 41.3 ± 1.7 versus 48.2 ± 1.4 mm and 51.2 ± 1.5 versus 57.6 ± 1.7 mm, respectively (P < .05). The markers of oxidative stress were significantly reduced in the infarct zone in the MCARD group. No positive T-cell-mediated immune response was seen in the MCARD group at any point. Myocyte hypertrophy was also significantly attenuated in the MCARD group compared with the control group.

Conclusions: Cardiac overexpression of the SERCA2a gene by way of MCARD is a safe therapeutic intervention. It significantly improves left ventricular function, decreases markers of oxidative stress, abrogates myocyte hypertrophy, arrests remodeling, and does not induce a T-cell-mediated immune response.

PubMed Disclaimer

Conflict of interest statement

No related disclosures or conflicts of interest to report

Figures

Figure 1

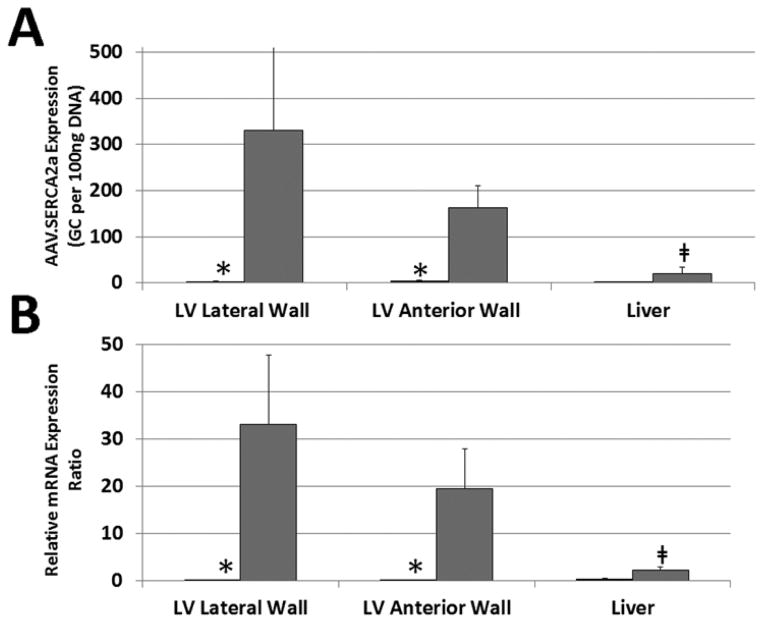

Figure 1
A. QPCR of SERCA2a biodistribution in heart and liver tissue (genome copies per 100ng DNA). B. Relative expression by RT-qPCR of SERCA2a/GAPDH in heart and liver tissue. MCARD-AAV9/SERCA2a group: Grey columns. Control group: Black columns. *p0.05 difference between groups. ╪p<0.05 difference within groups.
Figure 2

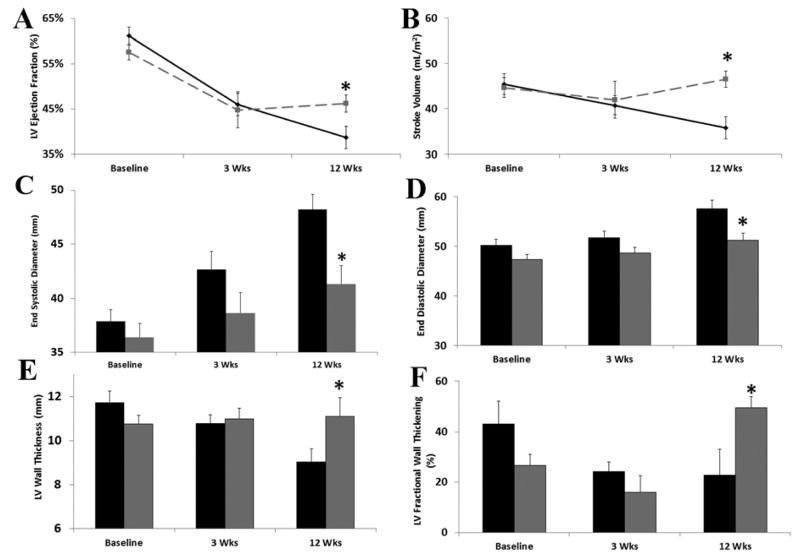

Figure 2
Baseline, 3 weeks post-infarction, and 12 weeks post-infarction values for A. Left ventricular ejection fraction (%), B. stroke volume index (mL/m2), C. end systolic diameter (mm), D. end diastolic diameter (mm), E. left ventricular wall thickness (mm), F. left ventricular fractional wall thickening (%). MCARD-AAV9/SERCA2a group: Grey. Control group: Black. *p<0.05 difference between groups.
Figure 3

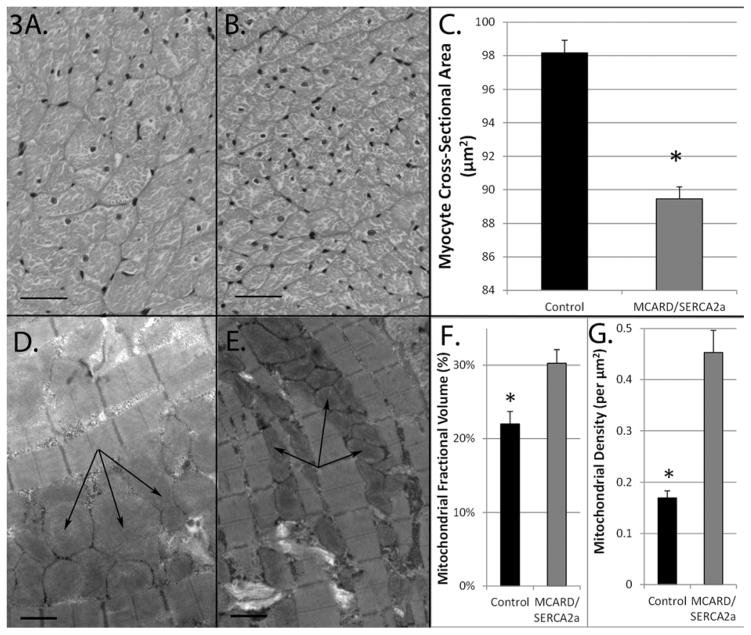

Figure 3
Morphometric analysis of myocytes and mitochondria. Hematoxylin and eosin stained infarct border zone tissue cross section (scale bar = 40μm) from A. Control, B. MCARD-AAV9/SERCA2a. C. Average cross sectional cardiac myocyte area in infarct border zone (μm2). D. Transmission electron microscopy of infarct border zone tissue (scale bar = 1μm) (control, arrows indicate mitochondrial swelling). E, MCARD-AAV9/SERCA2a (arrows indicate normal-appearing mitochondria). F. Average stereological estimates of: F. mitochondrial fractional volume (%) and, G. mitochondrial density (per μm2). MCARD-AAV9/SERCA2a group: Grey columns. Control group: Black columns. *p<0.05 difference between groups.
Figure 4
Figure 4
Oxidative markers. In infarct and remote tissue zones: A. 4-hydroxynonenal (HNE)-protein conjugates, in HNE-bovine serum albumin equivalents (μg/μg protein), B. Malondialdehyde (MDA) concentration (pmole/mg protein. MCARD-AAV9/SERCA2a group: Grey columns. Control group: Black columns. *p<0.05 difference within groups.
Figure 5
Figure 5
Time course of transgene specific T cell responses to pools of AAV9 capsid peptides and pools of SERCA2a transgene in peripheral blood mononuclear cells (PBMCs) after administration ofAAV9/SERCA2a. SFU - Number of IFN-γ spot-forming units in ELISPOT assay of LV tissue samples. No stim: negative control. PMA+ION: positive control. Red line: positive result threshold. A, B, C and D each refer to a specific animal in the MCARD-AAV9/SERCA2a group.
See this image and copyright information in PMC

References

    1. Lee R, Homer N, Andrei AC, McGee EC, Malaisrie SC, Kansal P, McCarthy PM. Early readmission for congestive heart failure predicts late mortality after cardiac surgery. J Thorac Cardiovasc Surg. 2012;144:671–676. - PubMed
    1. Jessup M, Greenberg B, Mancini D, Cappola T, Pauly DF, Jaski B, Yaroshinsky A, Zsebo KM, Dittrich H, Hajjar RJ. Calcium Upregulation by Percutaneous Administration of Gene Therapy in Cardiac Disease (CUPID): a phase 2 trial of intracoronary gene therapy of sarcoplasmic reticulum Ca2+-ATPase in patients with advanced heart failure. Circulation. 2011;124:304–313. - PMC - PubMed
    1. Byrne MJ, Power JM, Preovolos A, Mariani JA, Hajjar RJ, Kaye DM. Recirculating cardiac delivery of AAV2/1SERCA2a improves myocardial function in an experimental model of heart failure in large animals. Gene Ther. 2008;15:1550–1557. - PubMed
    1. Bridges CR. ‘Recirculating cardiac delivery’ method of gene delivery should be called ‘non-recirculating’ method. Gene Ther. 2009;16:939–940. - PubMed
    1. Fargnoli AS, Katz MG, Yarnall C, Isidro A, Petrov M, Steuerwald N, Ghosh S, Richardville KC, Hillesheim R, Williams RD, Kohlbrenner E, Stedman HH, Hajjar RJ, Bridges CR. Cardiac surgical delivery of the sarcoplasmic reticulum calcium ATPase rescues myocytes in ischemic heart failure. Ann Thorac Surg. 2013;96:586–595. - PMC - PubMed
