Computer-assisted surgery for knee ligament reconstruction

Abstract

Background: Anterior cruciate ligament (ACL) reconstruction is one of the most frequently performed orthopaedic procedures. The most common technical cause of reconstruction failure is graft malpositioning. Computer-assisted surgery (CAS) aims to improve the accuracy of graft placement. Although posterior cruciate ligament (PCL) injury and reconstruction are far less common, PCL reconstruction has comparable difficulties relating to graft placement. This is an update of a Cochrane review first published in 2011.

Objectives: To assess the effects of computer-assisted reconstruction surgery versus conventional operating techniques for ACL or PCL injuries in adults.

Search methods: For this update, we searched the Cochrane Bone, Joint and Muscle Trauma Group Specialised Register (from 2010 to July 2013), the Cochrane Central Register of Controlled Trials (CENTRAL) (Issue 5, 2013), MEDLINE (from 2010 to July 2013), EMBASE (from 2010 to July 2013), CINAHL (from 2010 to July 2013), article references and prospective trial registers.

Selection criteria: We included randomized controlled trials (RCTs) and quasi-randomized controlled trials that compared CAS for ACL or PCL reconstruction versus conventional operating techniques not involving CAS.

Data collection and analysis: Two authors independently screened search results, assessed the risk of bias in the studies and extracted data. Where appropriate, we pooled data using risk ratios (RR) or mean differences (MD), both with 95% confidence intervals (CI).

Main results: The updated search resulted in the inclusion of one new study. This review now includes five RCTs with 366 participants. There were more female than male participants (70% were female); their ages ranged from 14 to 53 years. All trials involved ACL reconstructions performed by experienced surgeons.Assessing the studies' risk of bias was hampered by poor reporting of trial methods, and consequently several studies were judged to be 'unclear' for several types of bias. One trial presenting primary outcome data was at high risk of detection bias from lack of clinician blinding and attrition bias from an unaccounted loss to follow-up at two years.We found moderate quality evidence (three trials, 193 participants) of no clinically relevant difference between CAS and conventional surgery in International Knee Documentation Committee (IKDC) subjective scores (self-reported measure of knee function; scale of 0 to 100 where 100 was best function). Pooled data from two of these trials (120 participants) showed a small, but clinically irrelevant difference favouring CAS (MD 2.05, 95% CI -2.16 to 6.25). A third trial (73 participants) also found minimal difference in IKDC subjective scores (reported MD 0.2).We found low quality evidence (two trials, 120 participants) showing no difference between the two groups in Lysholm scores, also measured on a scale 0 to 100 where 100 is best function (MD 0.25, 95% CI -3.75 to 4.25). We found very low quality evidence (one trial, 40 participants) showing no difference between the two groups in Tegner scores. We found low quality evidence (three trials, 173 participants) showing the majority of participants in both groups were assessed as having normal or nearly normal knee function (86/87 with CAS versus 84/86 with no CAS; RR 1.01, 95% CI 0.96 to 1.06).Similarly, no differences were found for our secondary outcome measures of knee stability, loss in range of motion and tunnel placement. None of the trials reported on re-operation.No adverse post-surgical events were reported in two trials (133 participants); this outcome was not reported by the other three trials.CAS use was associated with longer operating times compared with conventional operating techniques: the mean difference in operating times reported in the studies ranged between 9 and 27 minutes.

Authors' conclusions: From the available evidence, we are unable to demonstrate or refute a favourable effect of CAS for cruciate ligament reconstructions of the knee compared with conventional reconstructions. However, the currently available evidence does not indicate that CAS in knee ligament reconstruction improves outcome. There is a need for improved reporting of future studies of this technology.

1

Study flow diagram

2

Risk of bias summary: review authors' judgements about each risk of bias item for each included study (Empty cells = not applicable)

3

Risk of bias graph: review authors' judgements about each risk of bias item presented as percentages across all included studies

1.1. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 1 Functional status at 2 years or more: IKDC subjective (score 0 to 100: best function).

1.2. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 2 Functional status at 2 years or more: Lysholm score (score 0 to 100: best function).

1.3. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 3 Functional status at 2 years or more: Tegner activity level (score 0 to 10: best result).

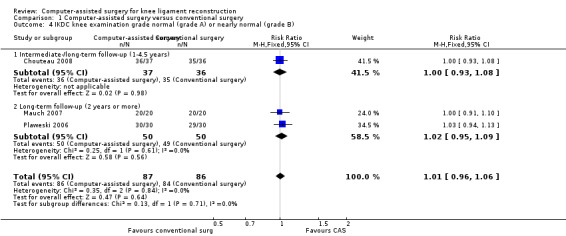

1.4. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 4 IKDC knee examination grade normal (grade A) or nearly normal (grade B).

1.5. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 5 Negative (normal) pivot shift test at 2 years or more.

1.6. Analysis

Comparison 1 Computer‐assisted surgery versus conventional surgery, Outcome 6 Length of operation (minutes).
