. 2014 Sep 16;3(9):854-857.
doi: 10.1021/mz5004097. Epub 2014 Aug 13.

Synthesis of Acid-Labile PEG and PEG-Doxorubicin-Conjugate Nanoparticles via Brush-First ROMP

Angela X Gao  1 , Longyan Liao  1 , Jeremiah A Johnson  1
Affiliations

Synthesis of Acid-Labile PEG and PEG-Doxorubicin-Conjugate Nanoparticles via Brush-First ROMP

Angela X Gao et al. ACS Macro Lett. .

Abstract

A panel of acid-labile bis-norbornene cross-linkers was synthesized and evaluated for the formation of acid-degradable brush-arm star polymers (BASPs) via the brush-first ring-opening metathesis polymerization (ROMP) method. An acetal-based cross-linker was identified that, when employed in conjunction with a poly(ethylene glycol) (PEG) macromonomer, provided highly controlled BASP formation reactions. A combination of this new cross-linker with a novel doxorubicin (DOX)-branch-PEG macromonomer provided BASPs that simultaneously degrade and release cytotoxic DOX in vitro.

PubMed Disclaimer

Figures

Figure 1
Figure 1
(A) Schematic for the brush-first ROMP process. (B) Acid-labile cross-linkers studied in this report.
Figure 2
Figure 2
Gel permeation chromatography (GPC) traces for N = 10, 15, and 20 BASPs prepared from PEGMM and 5.
Figure 3
Figure 3
LC-MS traces of the N = 0 bottlebrush polymer and N = 15 acetal core BASP after exposure to pH 4.0 buffer for up to 8 d. After this time, 1 drop of concentrated HCl was added to produce the +HCl trace.
Figure 4
Figure 4

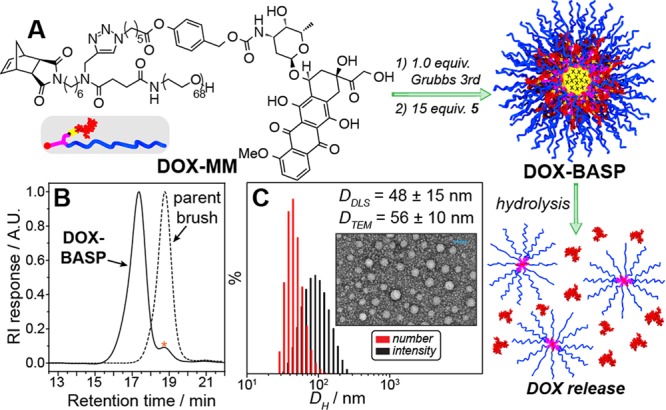

(A) Scheme for synthesis of DOX-BASP from DOX-MM and 5. (B) GPC trace of N = 15 DOX-BASP. (C) DLS histograms and negatively stained TEM image (inset) of N = 15 DOX-BASP. Scale bar in TEM image is 100 nm.
Figure 5
Figure 5
HeLa cell viability studies. “ABASP” refers to the acetal-core N = 15 BASP without DOX.
See this image and copyright information in PMC

References

    1. Green J. J.; Langer R.; Anderson D. G. Acc. Chem. Res. 2008, 41, 749. - PMC - PubMed
    1. Gao H.; Matyjaszewski K. Prog. Polym. Sci. 2009, 34, 317.
    1. Webster D. C.; Meier M. A. R.. Polymer Libraries; Springer: New York, 2010; Vol. 225, p 1.
    1. Kreye O.; Toth T.; Meier M. A. R. J. Am. Chem. Soc. 2011, 133, 1790. - PubMed
    1. Hook A. L.; Chang C. Y.; Yang J.; Luckett J.; Cockayne A.; Atkinson S.; Mei Y.; Bayston R.; Irvine D. J.; Langer R.; Anderson D. G.; Williams P.; Davies M. C.; Alexander M. R. Nat. Biotechnol. 2012, 30, 868. - PMC - PubMed
