(2E)-2-Benzyl-idene-9-phenyl-3,4-di-hydro-acridin-1(2H)-one

Abstract

In the title compound, C26H19NO, the plane of the aromatic heterocycle makes a dihedral angle of 75.22 (4)° with that of the attached phenyl ring. In the crystal, mol-ecules are connected by C-H⋯O inter-actions, generating R 2 (2)(12) dimers. These dimers are further connected by C-H⋯π inter-actions, linking the mol-ecules into chains running along the a-axis direction.

Keywords: crystal structure.

Fig. 1.

The molecular structure of the title compound with the atom numbering scheme. Displacement ellipsoids are drawn at the 30% probability level. H atoms are presented as small spheres of arbitrary radius.

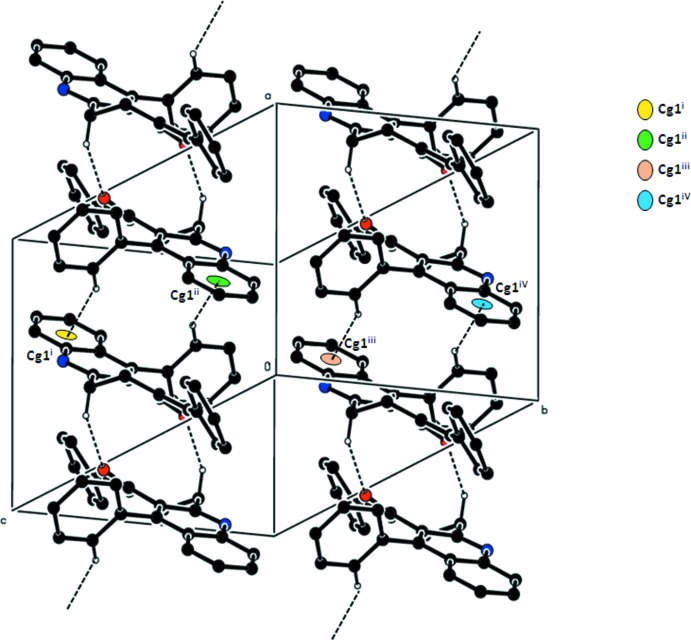

Fig. 2.

The cystal packing of the title compound showing the intermolecular C—H···O and C—H···π interactions chain running along aaxis, where Cg1 is the centroid of ring atoms C1—C6. Symmetry codes: (i) X,1/2-Y,1/2+Z; (ii) 1-X,-1/2+Y,1/2-Z; (iii) X,3/2-Y,1/2+Z and (iv) 1-X,1/2+Y,1/2-Z.
