. 2014 Oct;37(4):694-701.
doi: 10.1590/S1415-47572014005000016. Epub 2014 Nov 3.

Clustering of water bodies in unpolluted and polluted environments based on Escherichia coli phylogroup abundance using a simple interaction database

Nancy de Castro Stoppe  1 , Juliana Saragiotto Silva  2 , Tatiana Teixeira Torres  3 , Camila Carlos  4 , Elayse Maria Hachich  5 , Maria Inês Zanoli Sato  5 , Antonio Mauro Saraiva  6 , Laura Maria Mariscal Ottoboni  4
Affiliations

Clustering of water bodies in unpolluted and polluted environments based on Escherichia coli phylogroup abundance using a simple interaction database

Nancy de Castro Stoppe et al. Genet Mol Biol. 2014 Oct.

Abstract

Different types of water bodies, including lakes, streams, and coastal marine waters, are often susceptible to fecal contamination from a range of point and nonpoint sources, and have been evaluated using fecal indicator microorganisms. The most commonly used fecal indicator is Escherichia coli, but traditional cultivation methods do not allow discrimination of the source of pollution. The use of triplex PCR offers an approach that is fast and inexpensive, and here enabled the identification of phylogroups. The phylogenetic distribution of E. coli subgroups isolated from water samples revealed higher frequencies of subgroups A1 and B23 in rivers impacted by human pollution sources, while subgroups D1 and D2 were associated with pristine sites, and subgroup B1 with domesticated animal sources, suggesting their use as a first screening for pollution source identification. A simple classification is also proposed based on phylogenetic subgroup distribution using the w-clique metric, enabling differentiation of polluted and unpolluted sites.

Keywords: E. coli; interaction networks; phylogenetic groups; pollution sources; social network analysis.

PubMed Disclaimer

Figures

Figure 1
Figure 1

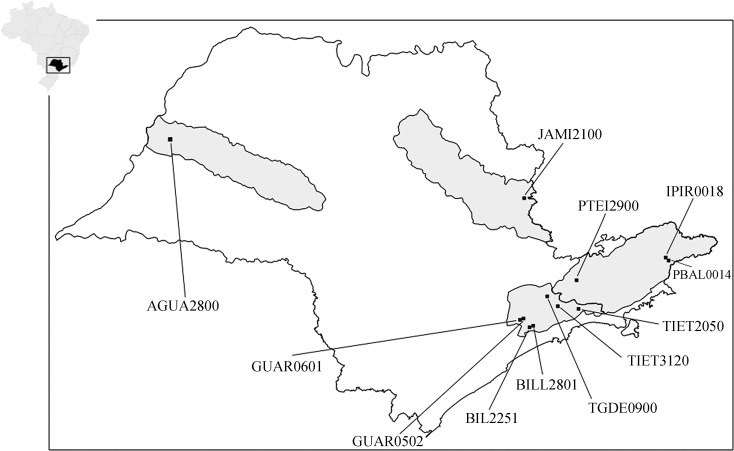

Locations of sampling sites in the WMU (grey areas).
Figure 2
Figure 2
Distribution of E. coli phylogenetic subgroups in rivers and reservoirs. The circle size is proportional to phylogenetic subgroup frequency.
Figure 3
Figure 3
Dendrogram obtained by the UPGMA cluster analysis method.
Figure 4
Figure 4
Dendrogram obtained using the w-clique metric, showing water body clusters.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Anastasi EM, Matthews B, Stratton HM, Katouli M. Pathogenic Escherichia coli found in sewage treatment plants and environmental waters. Appl Environ Microbiol. 2012;78:5536–5541. - PMC - PubMed
    1. Araújo MS, Guimarães PR, Jr, Svanbäck R, Pinheiro A, Guimarães P, Reis SFD, Bolnick DI. Network analysis reveals contrasting effects of intraspecific competition on individual vs. population diets. Ecology. 2008;89:1981–1993. - PubMed
    1. Batagelj V, Mrvar A. Pajek - program for large network analysis. Connections. 1998;21:47–57.
    1. Borgatti SP, Everett MG, Freeman LC. Ucinet for Windows: Software for Social Network Analysis. Analytic Technologies; Harvard: 2002.
    1. Carlos C, Pires MM, Stoppe NC, Hachich EM, Sato MZ, Amaral TATG, Amaral LA, Ottoboni LMM. Escherichia coli phylogenetic group determination and application in the identification of the major animal source of fecal contamination. BMC Microbiol. 2010;10:e161. - PMC - PubMed

Internet Resources

    1. American Public Health Association. Samples. Standard Methods for Examination of Water and Wastewater. 2010 Section 9060, http://standardmethods.org (accessed Feb 28, 2010).
    1. American Type Culture Collection. Microbial media and supplements. 2010 http://www.atcc.org/CulturesandProducts/Microbiology/MicrobialMediaandSu... (accessed Mar 7, 2010).
    1. Companhia Ambiental do Estado de São Paulo. CETESB; São Paulo: 2010. Relatório de Qualidade das Águas Superficiais no Estado de São Paulo 2009. http://www.cetesb.sp.gov.br/publicacoes/publicacoes.asp (accessed Jun 9, 2011).
    1. Companhia Ambiental do Estado de São Paulo. CETESB; São Paulo: 2011. Relatório de Qualidade das Águas Superficiais no Estado de São Paulo 2010. http://www.cetesb.sp.gov.br/publicacoes/publicacoes.asp (accessed Ago 17, 2011).
    1. Oksanen J. Multivariate analysis of ecological communities in R: Vegan tutorial. 2011 Version of Oct 30, 2011 http://cc.oulu.fi/~jarioksa/opetus/metodi/vegantutor.pdf (accessed Oct 8, 2012).
