A microfluidic device to study cancer metastasis under chronic and intermittent hypoxia

Abstract

Metastatic cancer cells must traverse a microenvironment ranging from extremely hypoxic, within the tumor, to highly oxygenated, within the host's vasculature. Tumor hypoxia can be further characterized by regions of both chronic and intermittent hypoxia. We present the design and characterization of a microfluidic device that can simultaneously mimic the oxygenation conditions observed within the tumor and model the cell migration and intravasation processes. This device can generate spatial oxygen gradients of chronic hypoxia and produce dynamically changing hypoxic microenvironments in long-term culture of cancer cells.

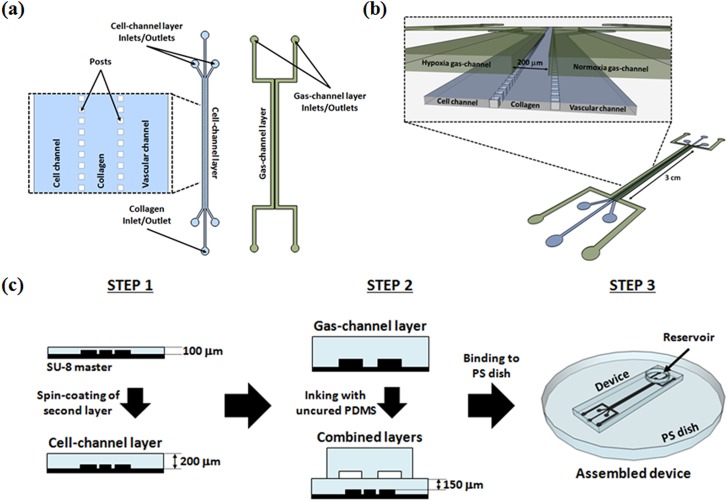

FIG. 1.

(a) Schematic of photoresist master patterns. The enlarged diagram shows the 50 × 50 μm posts along cell-channel layer length. (b) Isometric view of combined cell- and gas-channel layers. The enlarged diagram shows a cross-section indicating the cell and vascular channels and the gas channels used for delivery of the hypoxia and normoxia gas mixtures. (c) Schematic of the device fabrication process. Step 3 displays the microfluidic device bound to PS dish and the circular reservoir bound atop of the device to hold cell medium for withdrawal and maintenance of the cells during culture.

FIG. 2.

(a) Oxygen concentrations at steady-state within cross-section of the microfluidic device bound to PS dish. The oxygen content in the hypoxia and normoxia channels is 1% and 21% respectively. Scale bar marks 400 μm. (b) Predicted oxygen partial pressure gradient across the width of cell-channel layer of device bound directly to a PS dish. The theoretical oxygen gradient was obtained with a line profile at the interface between the device and the PS (represented by the dotted white line).

FIG. 3.

(a) Map of oxygen concentrations at steady-state within cross-section of microfluidic device bound to 200 μm PDMS film containing the oxygen-sensing microparticles. The oxygen content in the hypoxia and normoxia channels is 1% and 21%, respectively. Scale bar marks 400 μm. (b) Predicted oxygen partial pressure gradient across the width of cell-channel layer of device bound microparticle containing PDMS film. As with the PS model, a line profile was used at the interface between the device and the film (represented by top line of the dotted rectangle marking the microparticle film) to create this figure.

FIG. 4.

Fluorescence images of oxygen-sensing microparticles embedded within 200 μm PDMS film for (a) 0% O₂ and (b) at 21% O₂ at 6.4× magnification. Scale bar marks 200 μm. (c) Calibration of microparticle film using two-site Stern–Volmer model (R²= 0.9979). Calibration data shown as mean ± standard error of the mean for the three replicates (n = 3). (d) Reversibility response of oxygen-sensing microparticles within the PDMS film. Reversibility data shown as mean ± standard deviation for the three replicates (n = 3).

FIG. 5.

(a) Fluorescence image of the spatial gradient in fluorescence observed from the oxygen-sensing microparticles embedded within the 200 μm PDMS film at 6.4× magnification. The gradient was created by infusing 1% O₂ through the hypoxia channel and 21% O₂ through the normoxia channel. Scale bar marks 200 μm. (b)–(d) Comparison between predicted oxygen partial pressure gradients (dashed lines) and empirical characterizations (data points) across the width of the cell-channel layer of the device bound to the PDMS film containing the oxygen-sensing microparticles for (b) 1% O₂, (c) 2% O₂, and (d) 5% O₂. Measured gradient data shown as mean ± standard deviation for the three replicates (n = 3).

FIG. 6.
