Ultrasound assessment of the median nerve: a biomarker that can help in setting a treat to target approach tailored for carpal tunnel syndrome patients

Abstract

Ultrasonography (US) is a valuable tool for confirming the diagnosis of carpal tunnel syndrome (CTS) as it enables the detection of changes in the median nerve shape and rule out anatomic variants as well as space-occupying lesions such as ganglion cysts or tenosynovitis. This work was carried out aiming at: 1. Ultrasonography assessment of the median nerve and its neurovascular blood-flow in CTS patients before and after management. 2. Verify the possibility of using baseline US parameters as a biomarker to predict likely outcomes and frame a treatment plan for CTS patients. 233 CTS subjects diagnosed based on clinical and electrophysiological (NCS) testing were included in this work. US measures at the tunnel inlet included: cross sectional area, flattening ratio and neural Power Doppler (PD) signals. Patients who had severe NCS outcomes or neurological deficit were referred for open surgical decompression; the remaining patients were given the choice of either conservative or surgical management. The main outcome variable was improvement >70% in CTS symptoms. Assessments were carried out at baseline, 1-week, 1-month and 6-months post treatment. Results revealed an inverse relation between the neural vasculature and CTS severity defined by NCS (r = - 0.648). In CTS cases treated conservatively, the US measures started to improve within 1-week, whereas in the surgically treated cohort there was an initial phase of post-operative nerve measures increase, before settling at 1-month time of follow-up. The risk of poor outcomes was significantly higher (RR 3.3) in patients with high median nerve flattening ratio. This risk was most marked in the cohort with nerve flattening associated with longer duration of illness (RR 4.3) and low PD signal (RR 4.1). The results revealed that in addition to the diagnostic value of US in CTS, the detection of increased median nerve neuro-vasculature has a good prognostic value as an indicator of early median nerve affection.

Keywords: Carpal tunnel syndrome; Median nerve; Tenosynovitis; US.

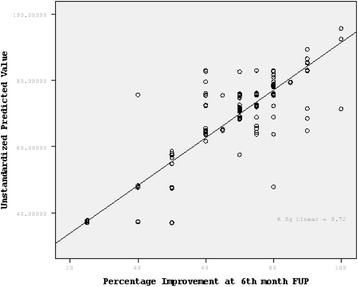

Figure 1

Scatterplot displaying Actual Percent Improvement at 6 months FUP and Unstandardized Predicted Values of the Model.

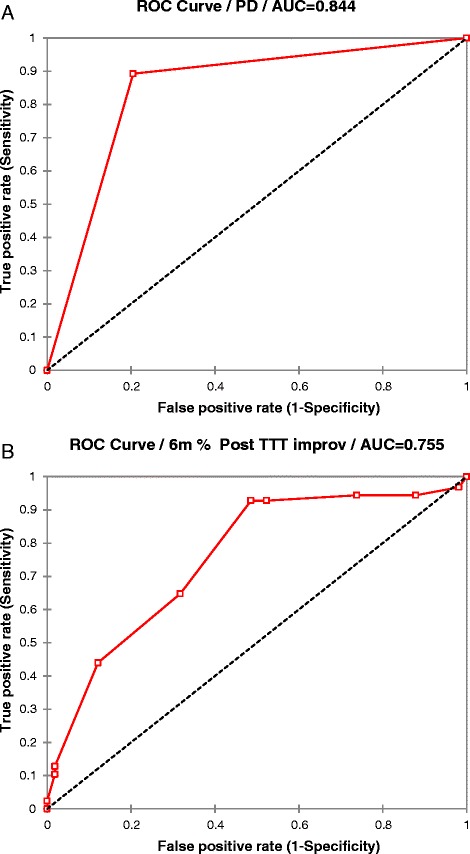

Figure 2

ROC of using Power Doppler (PD) as a predictor of good outcome at 6-months of follow up in patients with disease duration less than 6 months (a) and in the assessed patients independent of their disease duration (b).
